Conveyor 40 Timing Belt – Double End Drive

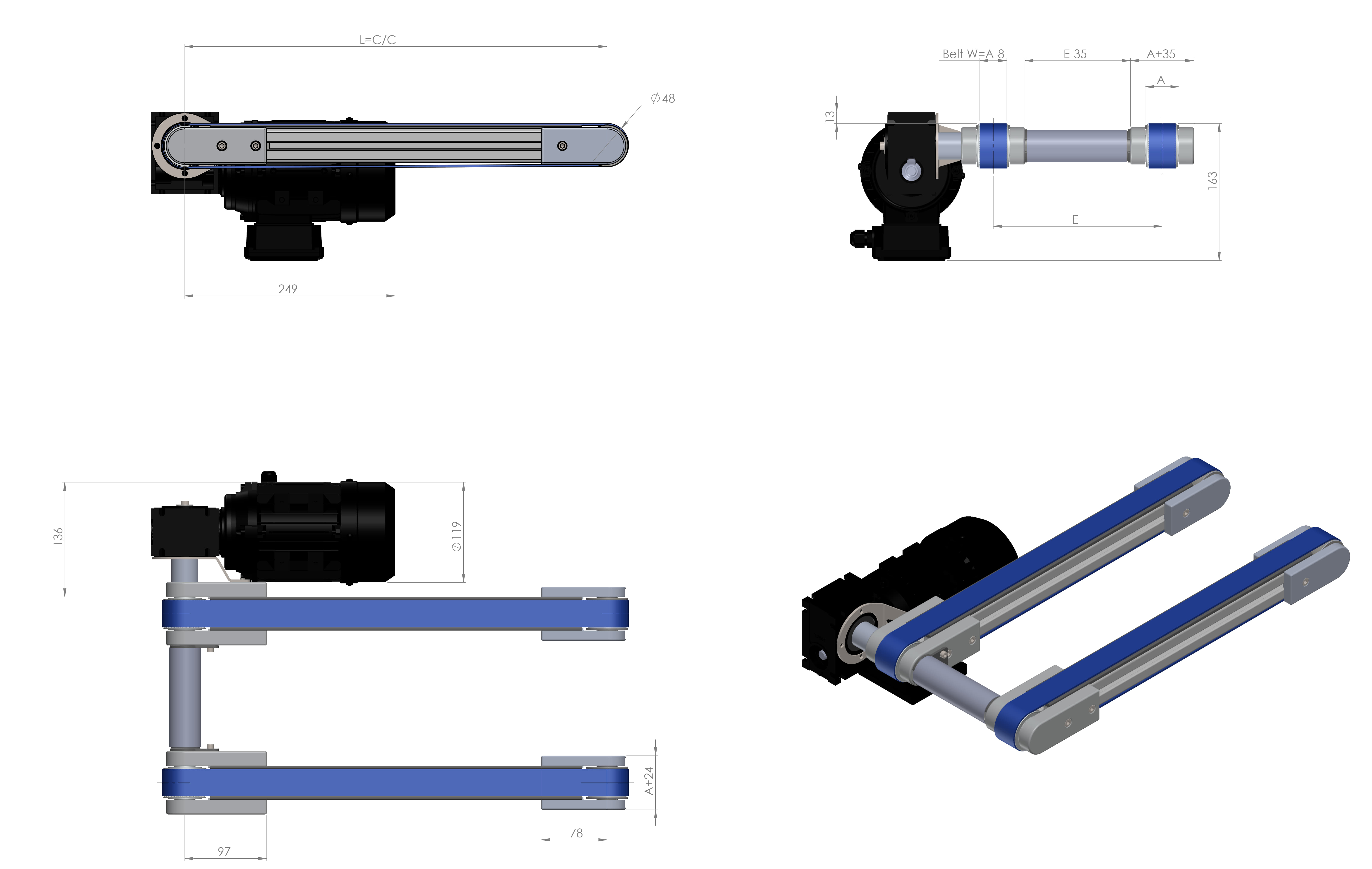

Double timing belt conveyor equipped with an end drive. Widths of 40mm and 80mm available.
For CAD-files other than SolidWorks, please contact Aluflex.
| Cad SolidWorks | |||
| Artikelnummer | Lenght min/max | Width min/max | Download SolidWorks CAD |
| TB40E-D | 400 - 6000 m | 40, 80 mm |  |
| Conveyor Load Data | |||||
| Conveyor | Conveyor System | Motor Position | Belt Speed | Max Total Load (Non-accumulating) | Max Total Load (Accumulating) |
| TB40E-D-40 | Timing belt conveyor 40-40 | End drive | 2-37 m/min | 100 kg | 50 kg |
| TB40E-D-80 | Timing belt conveyor 40-80 | End drive | 2-37 m/min | 120 kg | 60 kg |
| General Technical Data | |
| Conveyor width (A) | 40, 80 |
| Belt width | 32, 72 mm |
| Lenght (L) | 400 - 6000 mm |
| Distance (E) | Min 140 mm |
| Load | 0-100 kg |
| Speed | 0-37 m/min |
| Pulley Diameter | 51 mm |
| Belt Type | T5 Timing belt |
| Plate under belt | PE-UHMW Black |
| Motor Technical Data | |
| Motor | Asynchronous 230/400V, 50Hz |
| Cable | Delivered without motor cable |
| Protection rate motor | IP69K |
| Ambient temperature | - 20 to +40 ° C |
| Gear speed | 2,3/3,1/3,7/4,6/6,2/7,4/9,2/12/18,5/24/37 m/min |
