This product has extended CAD support, please contact Aluflex with measurement specifications and desired CAD format on the product and Aluflex will send you the desired CAD file.
Conveyor 40 Timing Belt – Central Drive
Precision conveyor with a central drive, designed for heavier workpieces. Available in 40mm and 80mm widths.
For CAD-files other than SolidWorks, please contact Aluflex.
| Cad SolidWorks | |||
| Artikelnummer | Lenght min/max | Width min/max | Download SolidWorks CAD |
| TB40C | 400 - 6000 m | 40, 80 mm |  |
| Conveyor Load Data | |||||
| Conveyor | Conveyor System | Motor Position | Belt Speed | Max Total Load (Non-accumulating) | Max Total Load (Accumulating) |
| TB40C-40 | Timing belt conveyor 40-40 | Central drive | 2-37 m/min | 100 kg | 50 kg |
| TB40C-80 | Timing belt conveyor 40-80 | Central drive | 2-37 m/min | 120 kg | 60 kg |

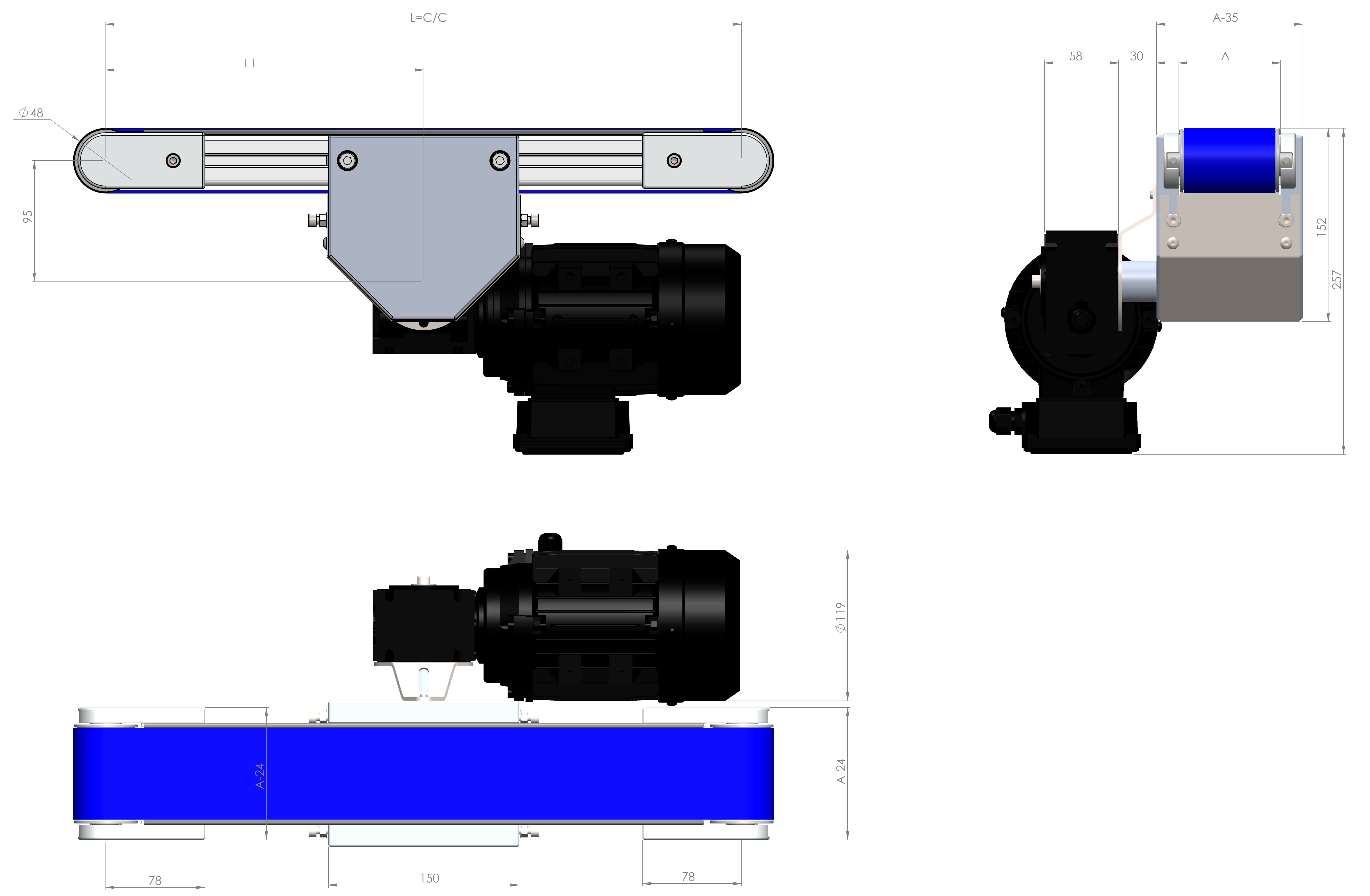

| General Technical Data | |
| Conveyor width (A) | 40, 80 mm |
| Belt width | 32, 72 mm |
| Lenght (L) | 400 - 6000 mm |
| Lenght (L1) | Central Motor Position C/C Standard |
| Load | 0-100 kg |
| Speed | 0-37 m/min |
| Pulley Diameter | 51 mm |
| Belt Type | T5 Timing belt |
| Plate under belt | Aluzink std/ Stainless steel |
| Motor Technical Data | |
| Motor | Asynchronous 230/400V, 50Hz |
| Cable | Delivered without motor cable |
| Protection rate motor | IP69K |
| Ambient temperature | - 20 to +40 ° C |
| Gear speed | 2,3/3,1/3,7/4,6/6,2/7,4/9,2/12/18,5/24/37 m/min |
