Container Double Pivot Arm 8 80-695
Pivot Arm 8 80-695 with Height Adjuster 4 Container Profiles 8 80×40 315 mm, Al, anodized Profile 8 40×40 light 360 mm, Al, anodized 8 fastening plates, Container Profile 8 80×40 F max . = 400 N Fastening elements
Scope of Delivery
1 Pivot Arm 8 80-695 with Height Adjuster 4 Container Profiles 8 80x40 315 mm, Al, anodized 1 Profile 8 40x40 light 360 mm, Al, anodized 8 fastening plates, Container Profile 8 80x40 Fastening elements
Properties
| Line | Work Bench System |
|---|---|
| line 8 | line 8 |
| ESD-safe | Yes |
| Weight | m = 9.06 kg |
| Force max | Fmax. = 250 N |
| Delivery unit | 1 set |

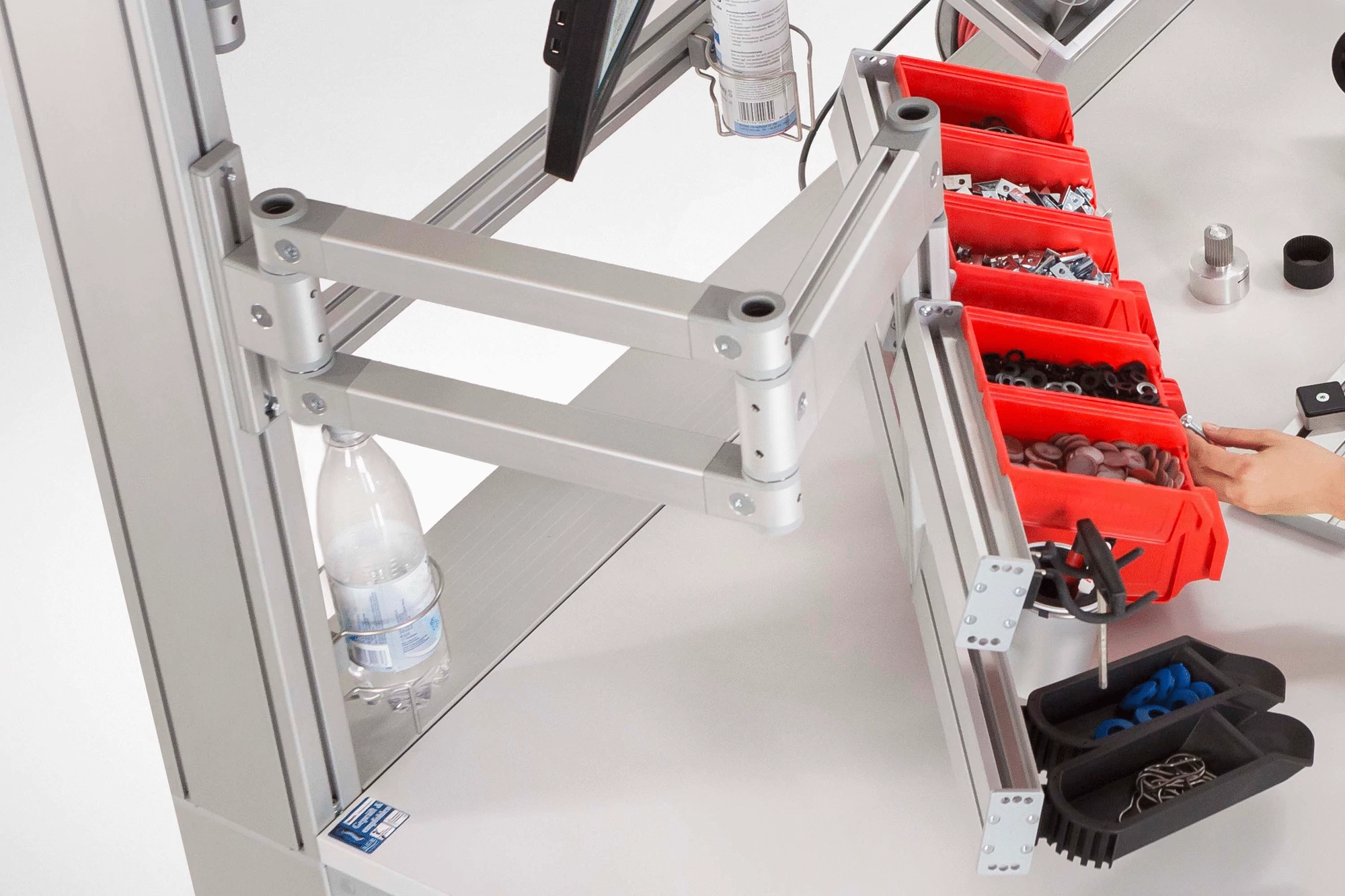

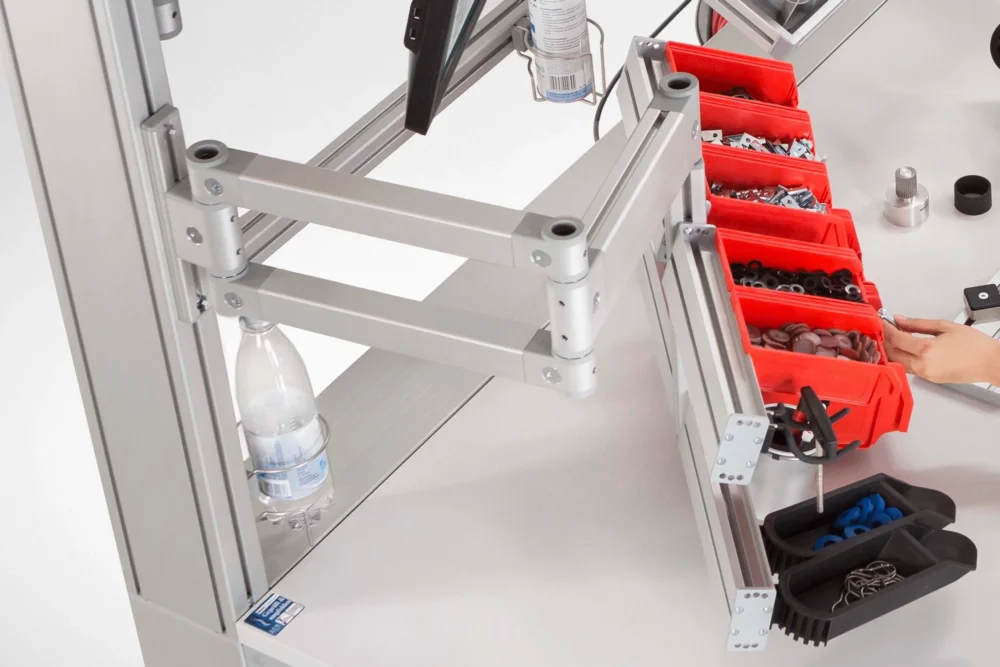

Employees who often work with screws, nuts and other small parts will find the item Container Pivot Arm the perfect solution. Parts Containers and semi-open fronted boxes from various manufacturers can be securely hung on the arm’s four support profiles. Friction-adjustable joints and the tilting function on the four support profiles ensures that containers can be perfectly positioned to suit the operator’s reach. Thanks to the three joint axles, the Pivot Arm can be positioned at the ideal distance from the user and at the perfect angle. The four support profiles of the Container Pivot Arm are height adjustable for compatibility with a range of container sizes. Note: All the components needed to design custom material supply solutions can be found in the section on Pivot Arms.
Angle α can be set to 0°, 7.5° or 15° by selecting suitable fastening holes. This ensures fatigue-free, efficient handling processes.
