| Combination Drilling Jig for Shaft D25 | CADPDFRFQ |
Preview

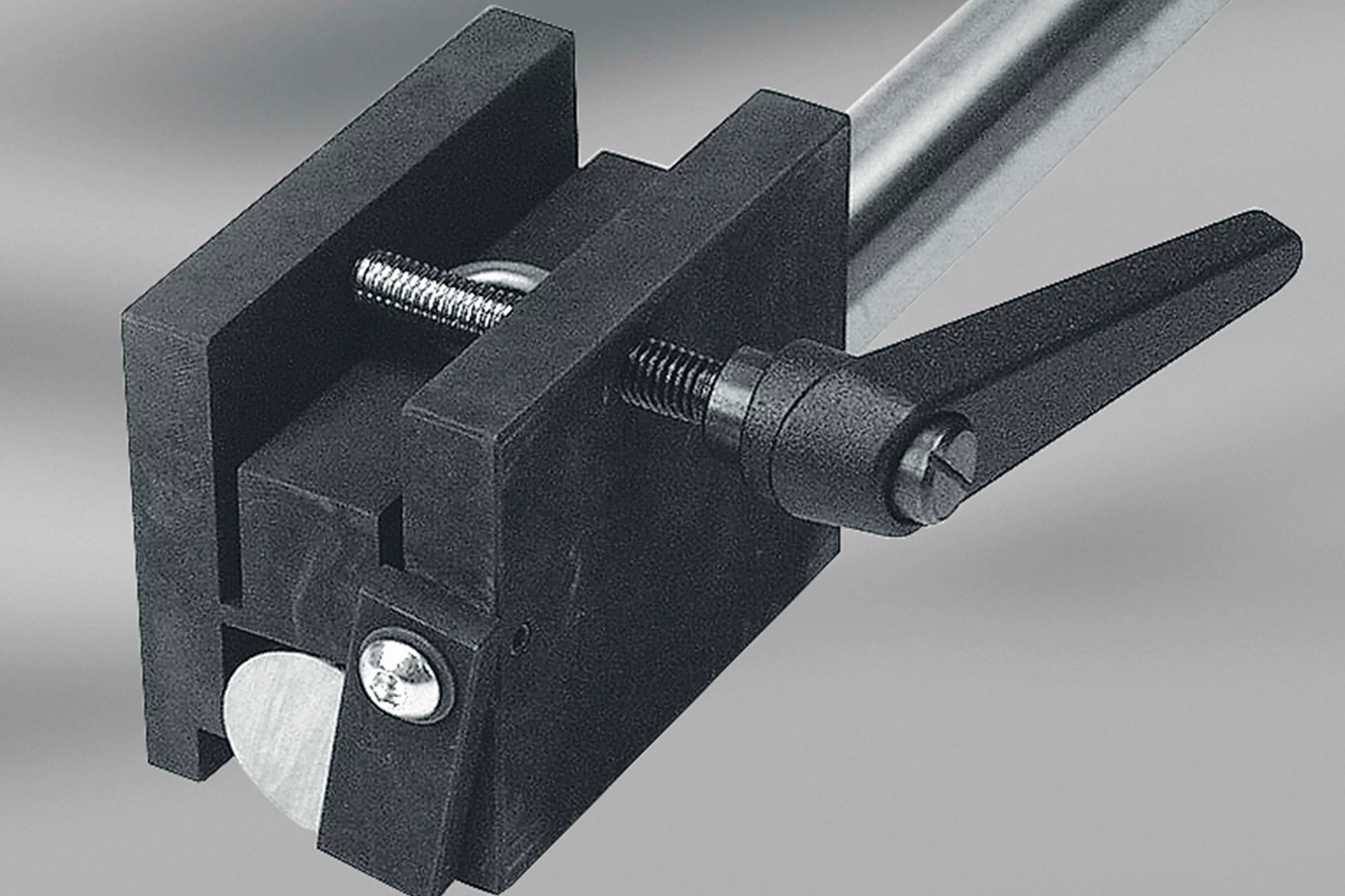

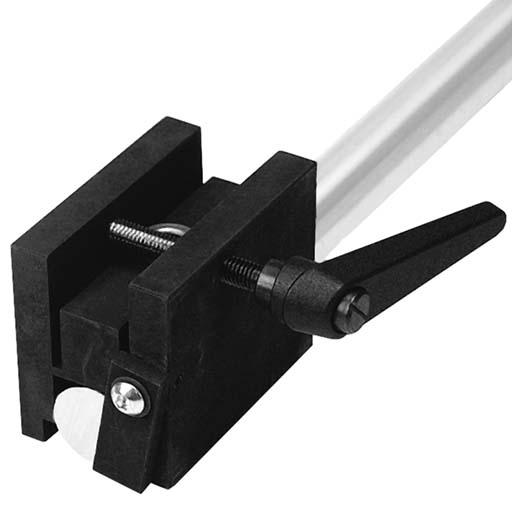

Combination Drilling Jig for Shaft D25
Drill bush, St, hardened and polished Clamping lever Slewable longitudinal limit stop
Scope of Delivery
Drill bush, St, hardened and polished Clamping lever Slewable longitudinal limit stop
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 1.43 kg |
| Delivery unit | 1 pce. |
| Material | St, black |
For precisely positioned drilling of fixing bores in shafts, Shaft-Clamp Profiles and Support Profiles for Roller Guides 8 D25. A carbide-tipped drill must be used for drilling in hardened shafts.
