| Combination Drilling Jig for Shaft D10 | CADPDFRFQ |
Preview

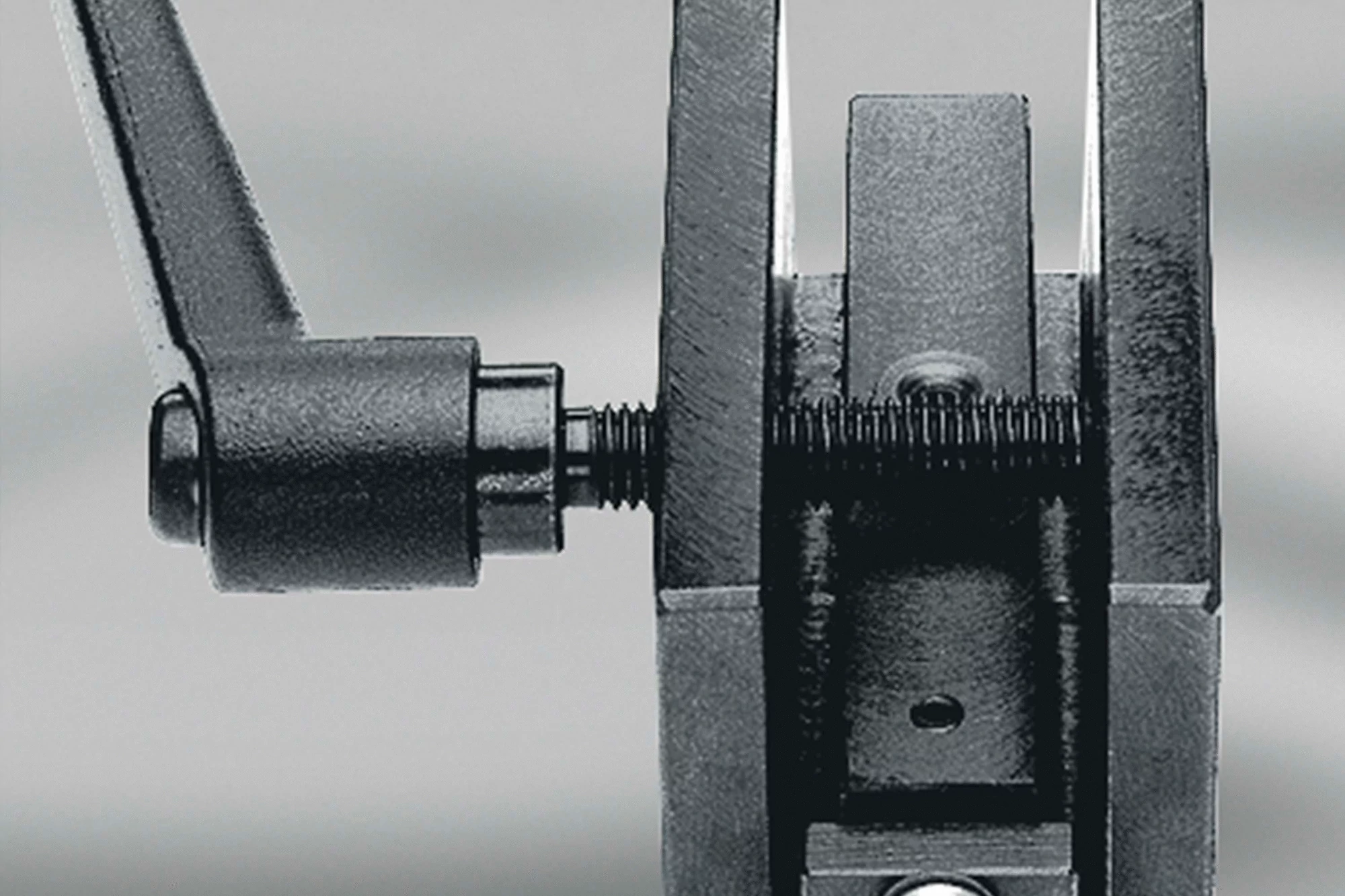

Combination Drilling Jig for Shaft D10
Drill bush, St, hardened and polished Clamp lever Slewable longitudinal limit stop
Scope of Delivery
Drill bush, St, hardened and polished Clamp lever Slewable longitudinal limit stop
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 889 g |
| Delivery unit | 1 pce. |
| Material | St, black |
For precisely positioned drilling of fixing bores in shafts, Shaft-Clamp Profiles and Support Profiles for Roller Guides 8 D10. A carbide-tipped drill must be used for drilling in hardened shafts.
