Clamping Set, Door Profile X 8 – XMS
2 panel holders, PA, grey 4 thrust pieces, St, bright zinc-plated 4 grub screws DIN 916-M6x25, St, bright zinc-plated
Scope of Delivery
2 panel holders, PA, grey 4 thrust pieces, St, bright zinc-plated 4 grub screws DIN 916-M6x25, St, bright zinc-plated
Properties
| Line | line X |
|---|---|
| ESD-safe | No |
| Weight | m = 26.4 g |
| Delivery unit | 1 set |

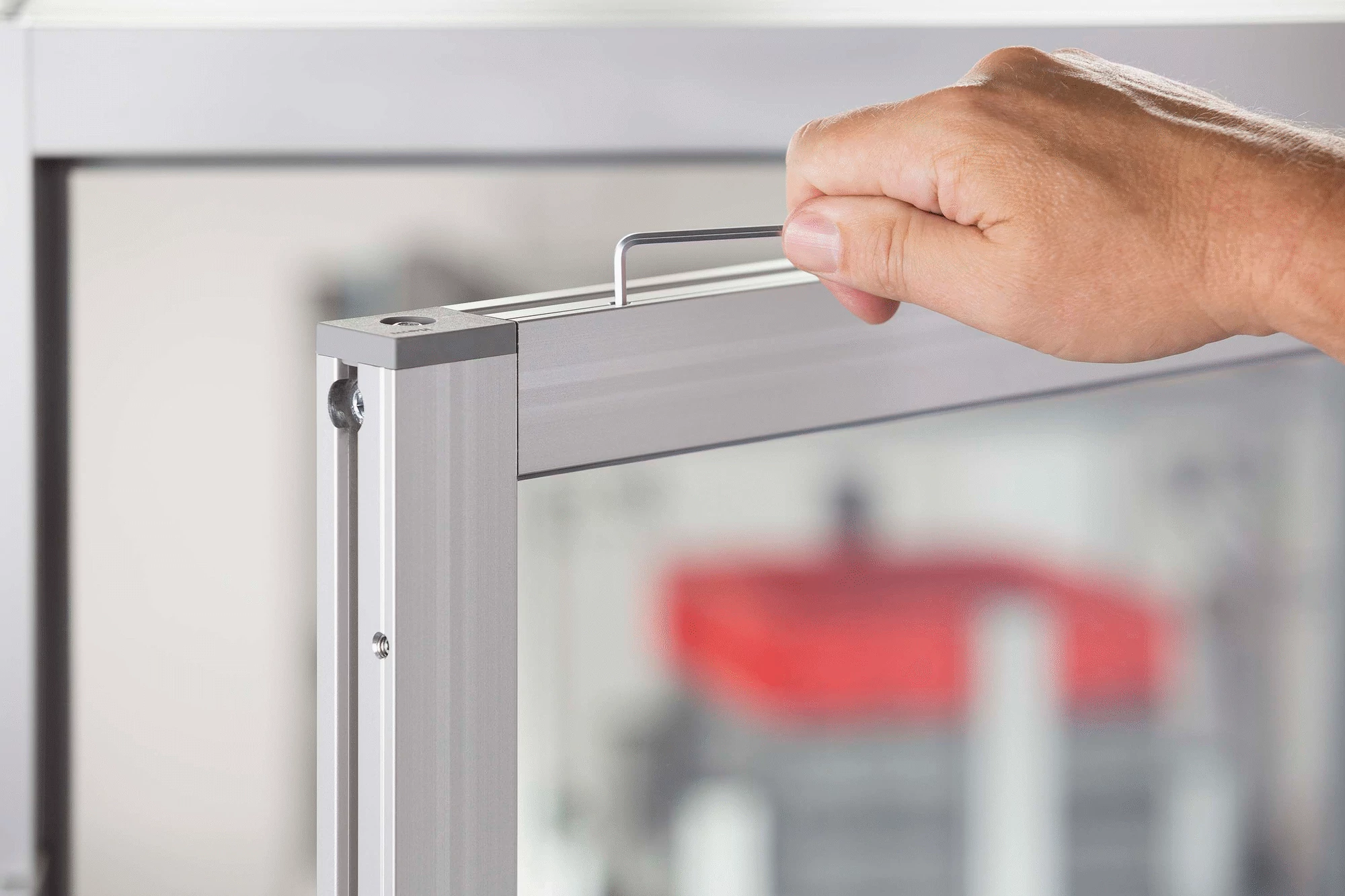

Clamping Set, Door Profile X 8 - XMS is used to precisely adjust door frames and correct distortion caused by the weight of the assembly.
The components in the Clamping Set pair (one panel holder, two thrust pieces and two grub screws for one corner of a frame) are installed in Door Profile X 8 - XMS.
Door Profile machining requirements when installing Clamping Set, Door Profile X 8 - XMS. One Clamping Set must be used for each panel segment.
Recommended arrangement of Clamping Sets in a door with two panel segments (Clamping Sets installed at the bottom on the hinged side). Use the adjustment options at the points indicated in the diagram, starting from the top.
