| Chain Reverse Unit 8 80 with Bore D15 | CADPDFRFQ |
Preview

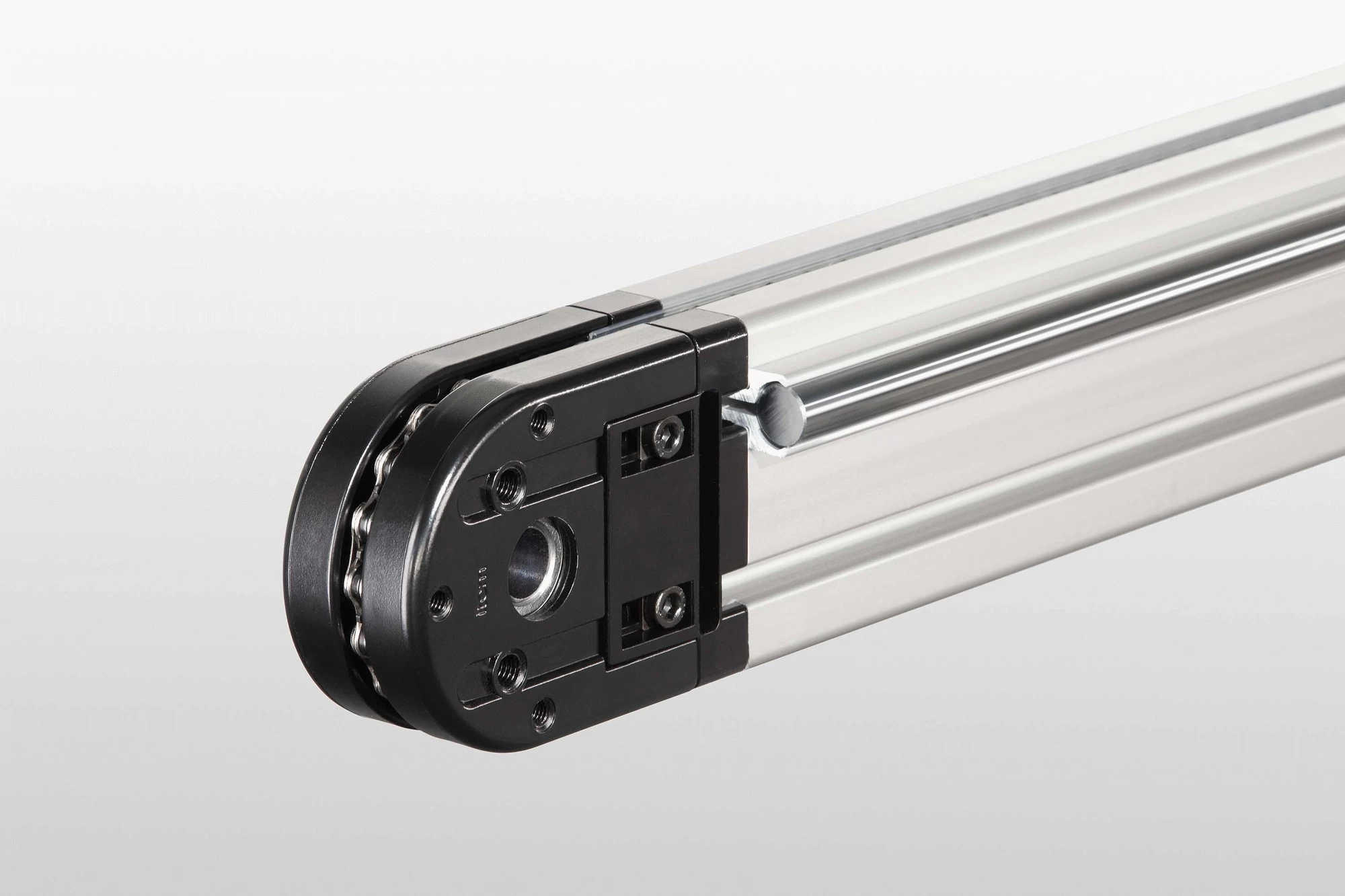

Chain Reverse Unit 8 80 with Bore D15
Chain Reverse Unit, die-cast zinc, black, preassembled Ball-bearing sprocket wheel, n = 16; one revolution equivalent to 203.2 mm Effective radius r e = 32.3 mm Hub with ⌀ 15 H7 bore Hub length 30 mm, Max. load: T D = 20 Nm Tensioning Block, die-cast zinc, black, preassembled Fastening screws, St, black 2 caps, PA, black Chain length inside Reverse Unit: 236.3 mm Notes on Use and Installation
Scope of Delivery
Chain Reverse Unit, die-cast zinc, black, preassembled Ball-bearing sprocket wheel, n = 16; one revolution equivalent to 203.2 mm Effective radius r e = 32.3 mm Hub with ⌀ 15 H7 bore Hub length 30 mm, Max. load: T D = 20 Nm Tensioning Block, die-cast zinc, black, preassembled Fastening screws, St, black 2 caps, PA, black Chain length inside Reverse Unit: 236.3 mm Notes on Use and Installation
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 1.2 kg |
| Delivery unit | 1 set |
A solution with a powerful pull! This robust chain drive from item provides maximum reliability, even in heavily contaminated environments. Chain Reverse Unit 8 80 with Bore D15 allows users to connect item Motors and Gearboxes without having to machine the hub. Chain Reverse Unit 8 80 is used to reverse, drive and apply tension to Chain 1/2" (0.0.465.17). The Unit is screwed onto the end face of the profile. The chain drive moves heavy loads of up to 160 kg and transmits high forces in the direction of travel. Vertical movements – such as those of lifting doors – are carried out safely. The expanding hub couplings of Drive Set 8 40 D40/D15 offer a fast and secure means of connecting any item Motor/Gearbox to Chain Reverse Unit 8 80 with Bore D15.
