| Castor D100 fixed 140×110 ESD | CADPDFRFQ |
Preview

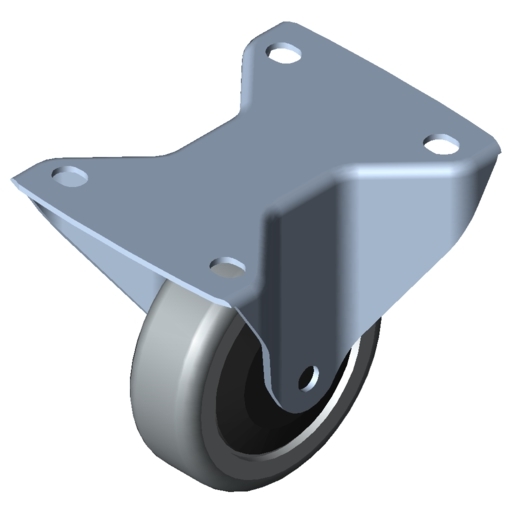

Castor D100 fixed 140×110 ESD
Fork, St, bright zinc-plated Wheel axle with ball bearing Dust shield Wheel body PA Tyre TPU, 94 Sh A, grey
Scope of Delivery
Fork, St, bright zinc-plated Wheel axle with ball bearing Dust shield Wheel body PA Tyre TPU, 94 Sh A, grey
Properties
| Line | Line D30 |
|---|---|
| line 10 | line 10 |
| line 8 | line 8 |
| ESD-safe | Yes |
| Weight | m = 800 g |
| Delivery unit | 1 pce. |
| Tragfähigkeit (Rolle) | Load-carrying capacity = 130 kg/Castor |
Thanks to their wide connecting plate with four drilled holes, item Castors D100 swivel 140x110 (wheel diameter = 100 mm) can be fastened in place without requiring additional Base Plates. They can be fitted to the profile grooves on a base frame using Fastening Set 8 for Castor swivel/fixed 140x110 (0.0.670.18). Swivel castors, swivel castors with double-brake and fixed castors are all available – each in both a standard and an ESD-safe variant. The rotation on a swivel castor can be locked using Swivel Lock for Castor D100/D125 swivel 140x110 (0.0.670.19). Stable ball bearings and wheel bodies made of polyamide 6 ensure a long service life.

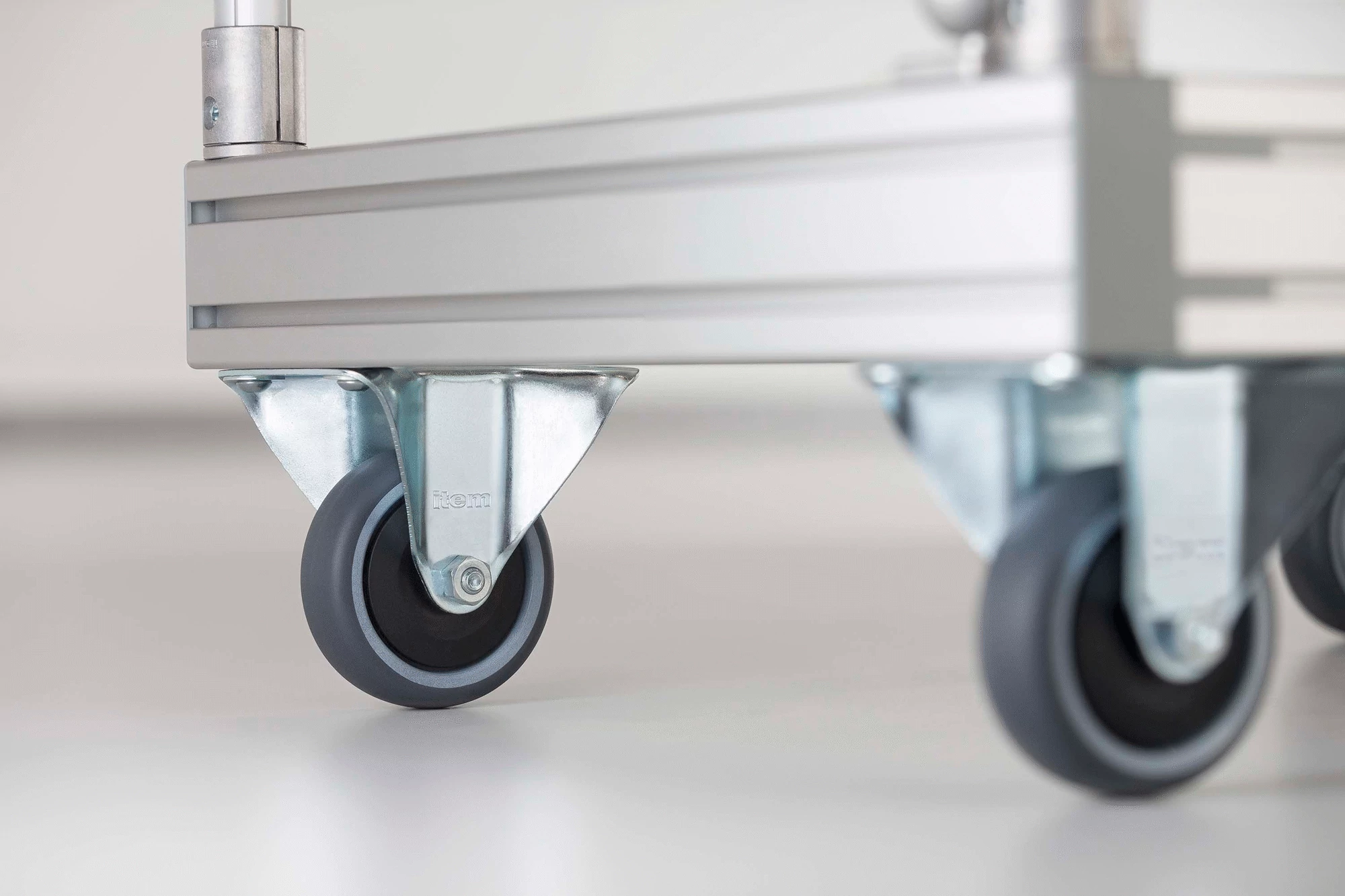

Swivel and Fixed Castors can be fixed to frames made using Line 8 profiles via the four holes in the integrated connecting plate. Alternatively, the Castors can be fixed to two parallel Profiles 8 D30. These tubes from Profile Tube System D30 feature an integral Line 8 groove. The corresponding Fastening Set 8 for Castor swivel/fixed makes installation easy.
Carrying capacity 130 kg/castor
