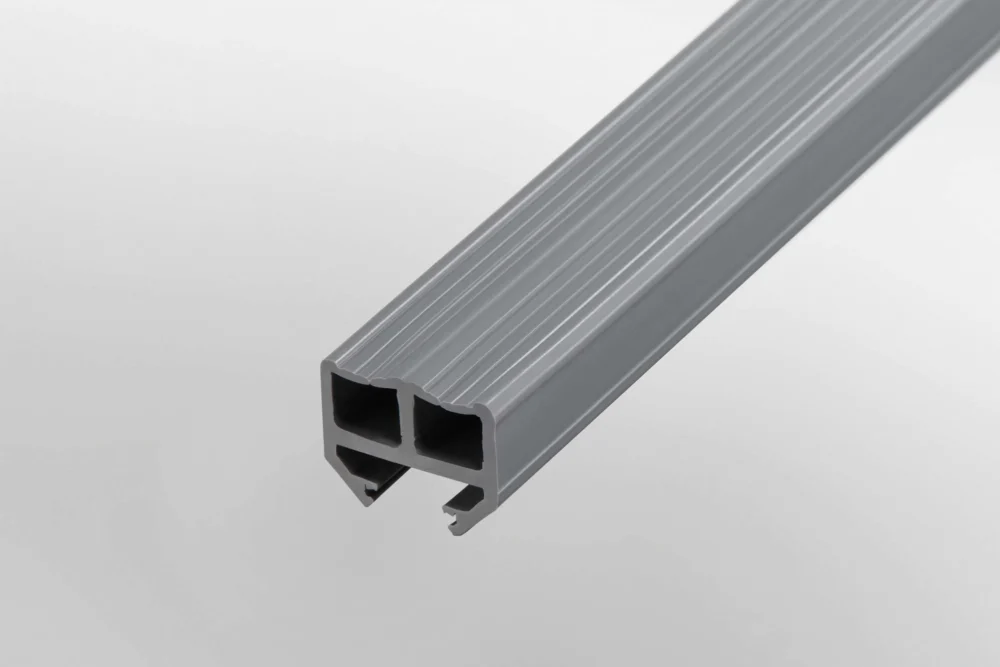

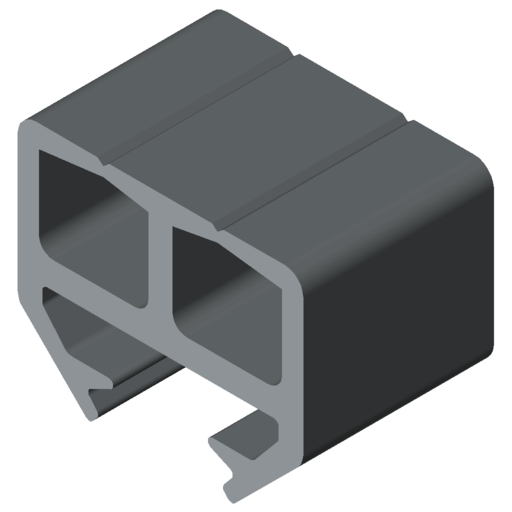

Cable Guide Profile D30, grey similar to RAL 7042
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| Line | Line D30 |
|---|---|
| ESD-safe | No |
| Weight | m = 340 g/m |
| Delivery unit | cut-off max. 2000 mm |
| Material | PVC/TPE |
| Colour | grey similar to RAL 7042 |

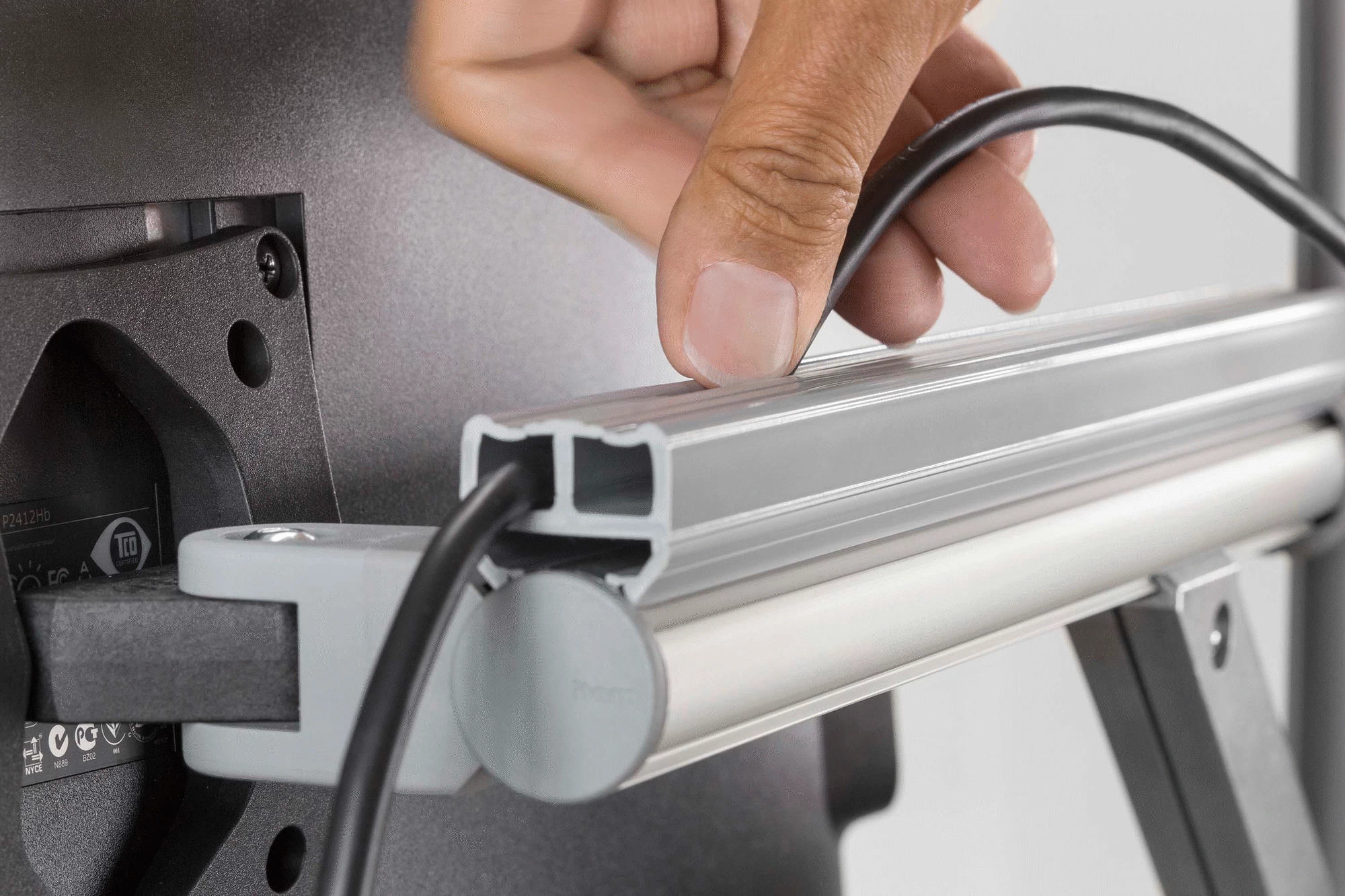

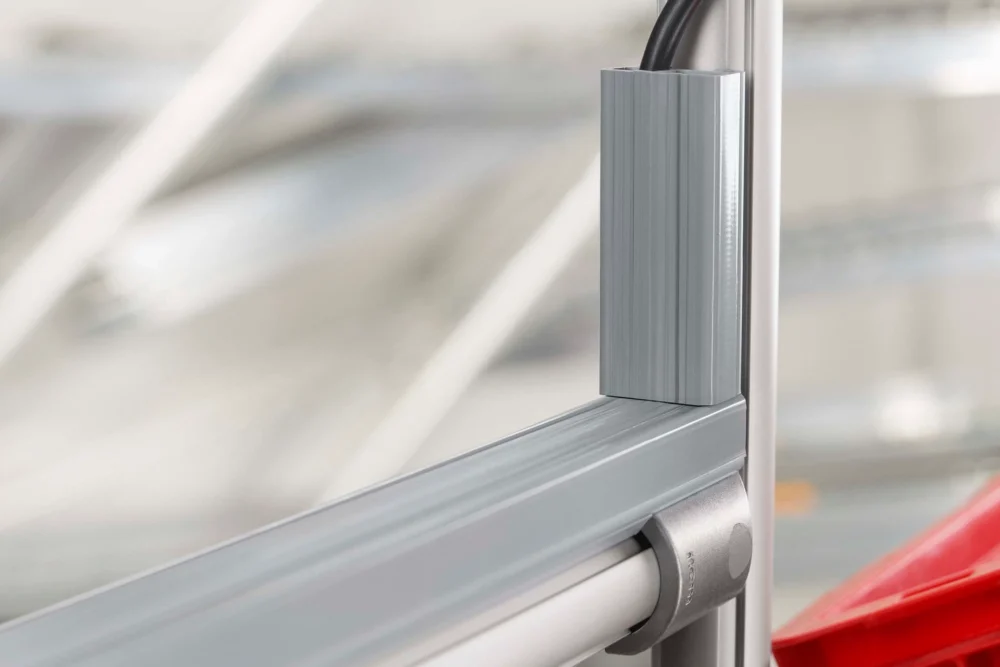

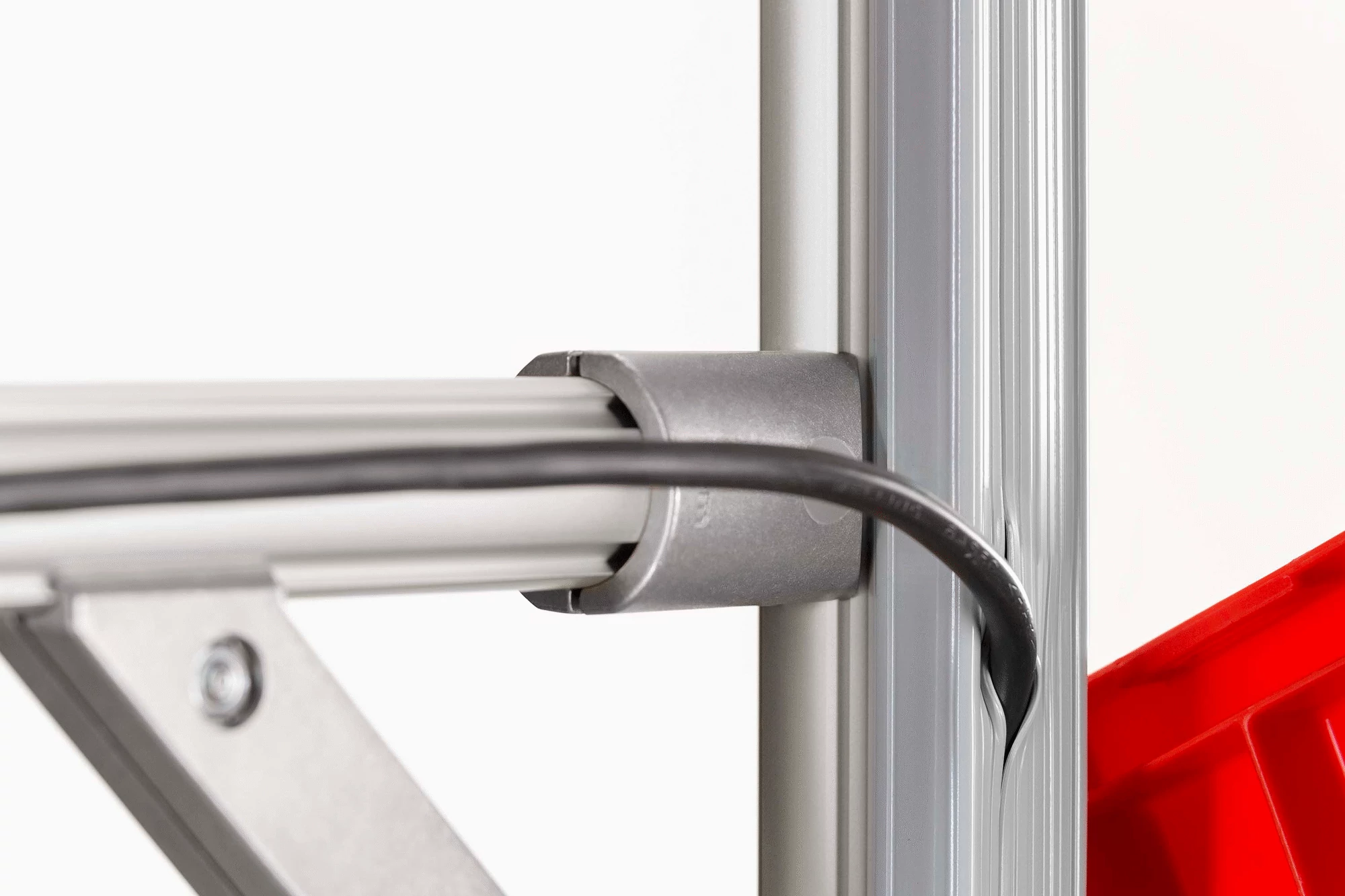

Laying cables and hoses really can be a quick and easy job! Cable Guide Profile D30 clips onto Profile Tube D30 with no need for drilling. Cables and lines can be routed neatly through two separate conduits. To route the cables back out, simply break through the top of the profile. The two flexible lid sections give at any point to provide an opening, but still envelop the cable to keep dust and dirt out of the conduit. The profile can also be opened up along its entire length. Cables can even be laid around corners by pushing Cable Guide Profiles up against each other. To do this, the clip geometry on the underside simply has to be cut off with pliers so that the conduit can fit over the Fastener D30.
A section has to be cut away from the underside of the Cable Guide Profile so that it can fit perfectly over the contours of Fastener D30. This cutaway section must be at least 45 mm long and must be made at a height of between 14.3 and 19.5 mm.
