| Butt Fastener D30-90° | CADPDFRFQ |
Preview
Butt Fastener D30-90°
Preassembled 2 butt fastener halves, die-cast aluminium, natural Hexagon Socket Head Cap Screw similar to DIN 912-M6x29.4, St, bright zinc-plated Hexagon nut DIN 934 M6-I8I, St, bright zinc-plated
Scope of Delivery
Preassembled 2 butt fastener halves, die-cast aluminium, natural Hexagon Socket Head Cap Screw similar to DIN 912-M6x29.4, St, bright zinc-plated Hexagon nut DIN 934 M6-I8I, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 240 g |
| Delivery unit | 1 pce. |
| Torque | M = 10 Nm |

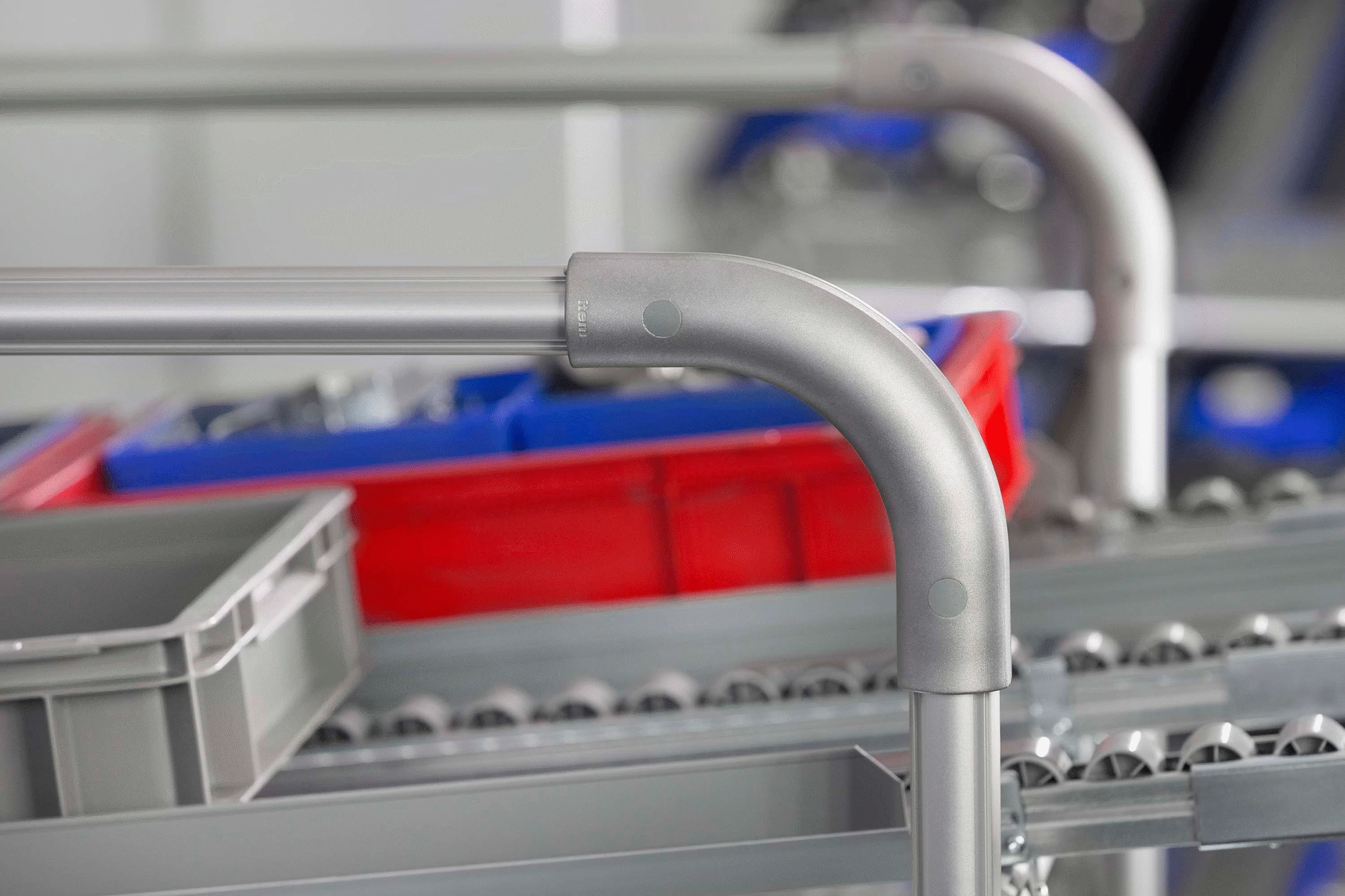

D30 gets even curvier. Butt Fasteners D30-30°, D30-60° and D30-90° even out otherwise prominent right angles to produce smooth transitions. For example, Butt Fastener D30-90° stops trolleys getting tangled up in the strip curtains often found in factory halls. The rounded edges ensure that the plastic strips simply slide off to the side. Butt Fasteners D30-30°and D30-60° are ideal for building FIFO racks with ergonomic goods removal points.
