| Base Plate 8 80×80-R80, M12, white aluminium, similar to RAL 9006 | CADPDFRFQ |
Preview
Base Plate 8 80×80-R80, M12, white aluminium, similar to RAL 9006
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 146 g |
| Delivery unit | 1 pce. |
| Material | Die-cast aluminium |
| Colour | white aluminium, similar to RAL 9006 |

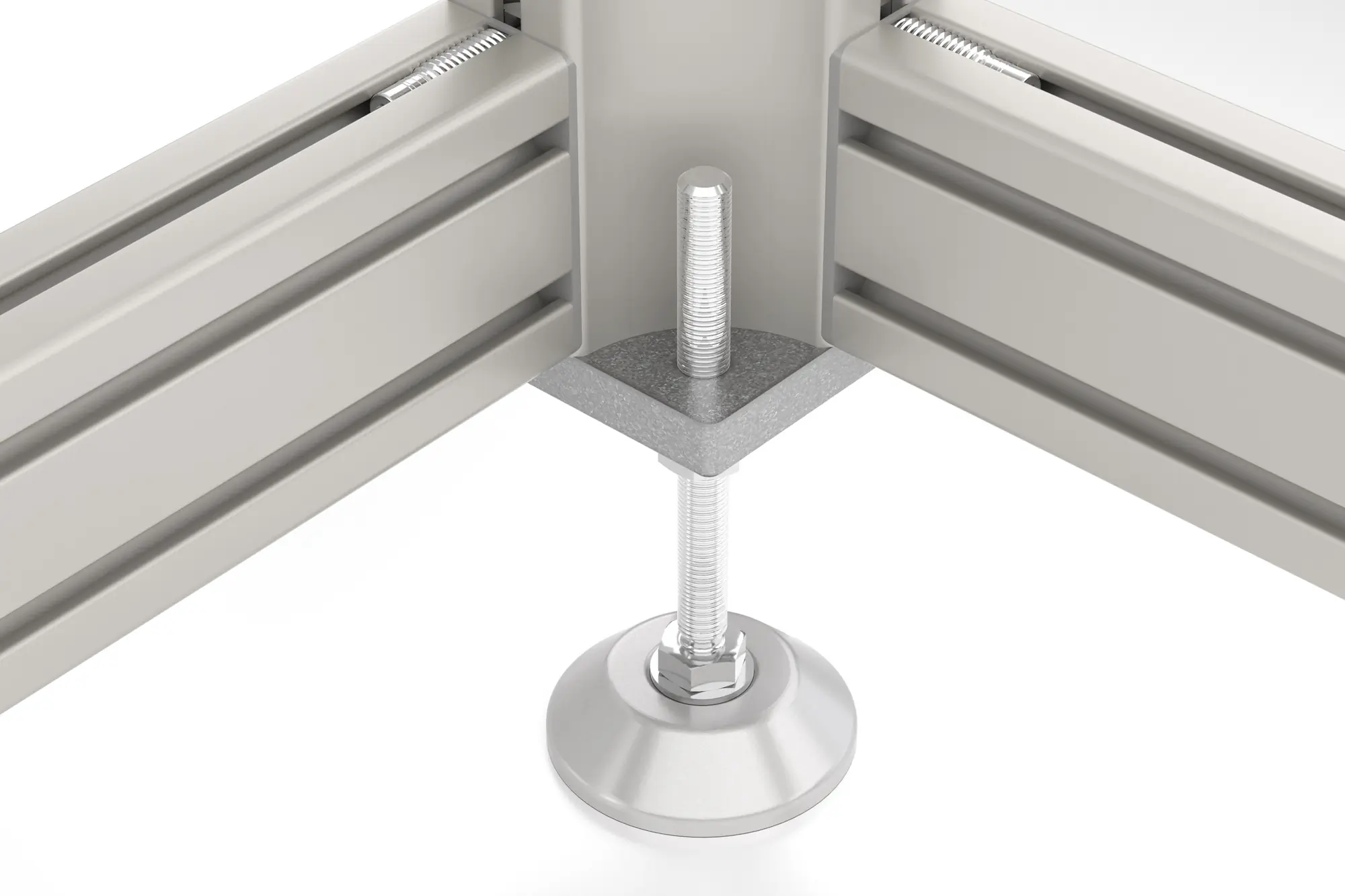

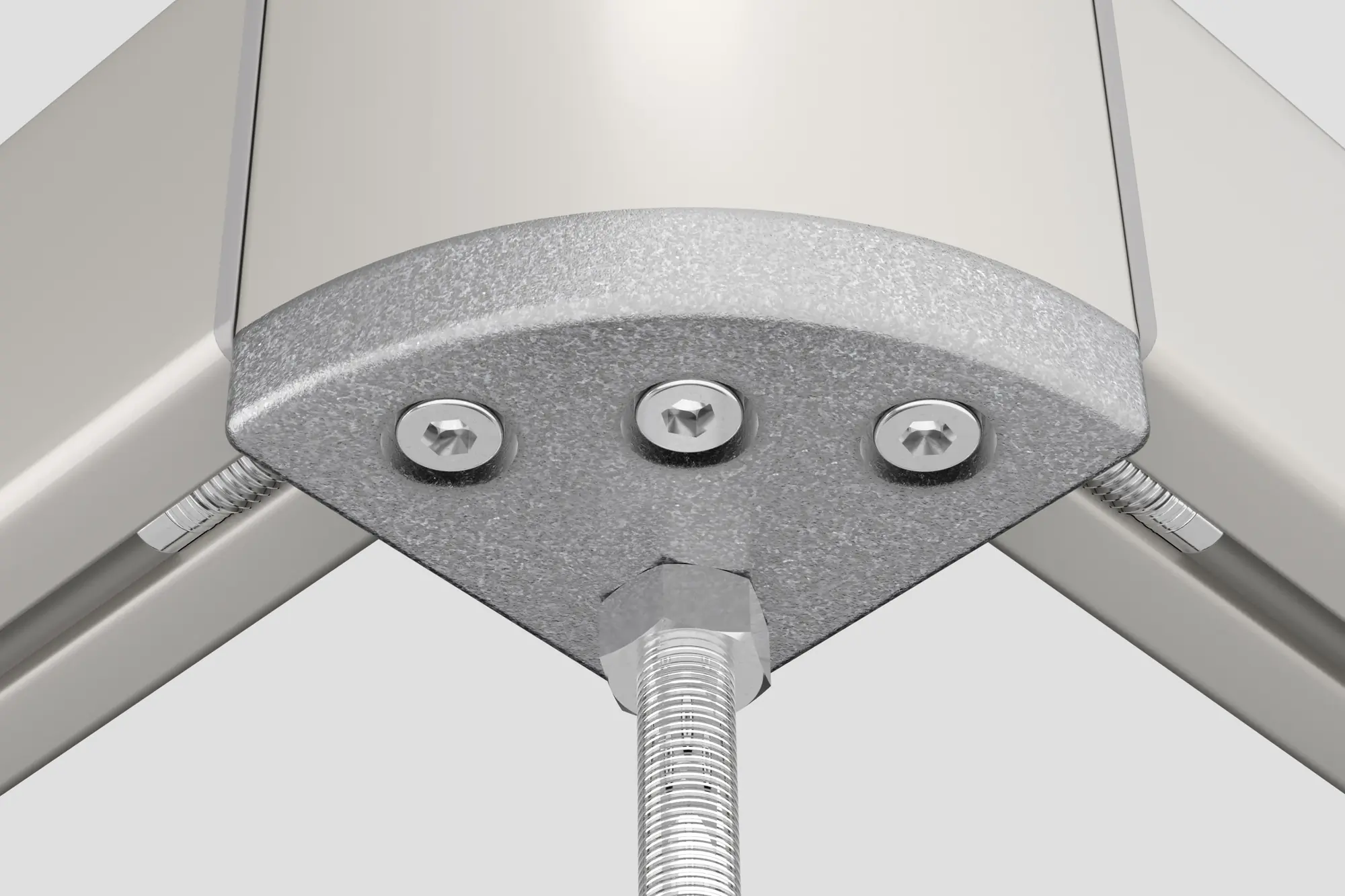

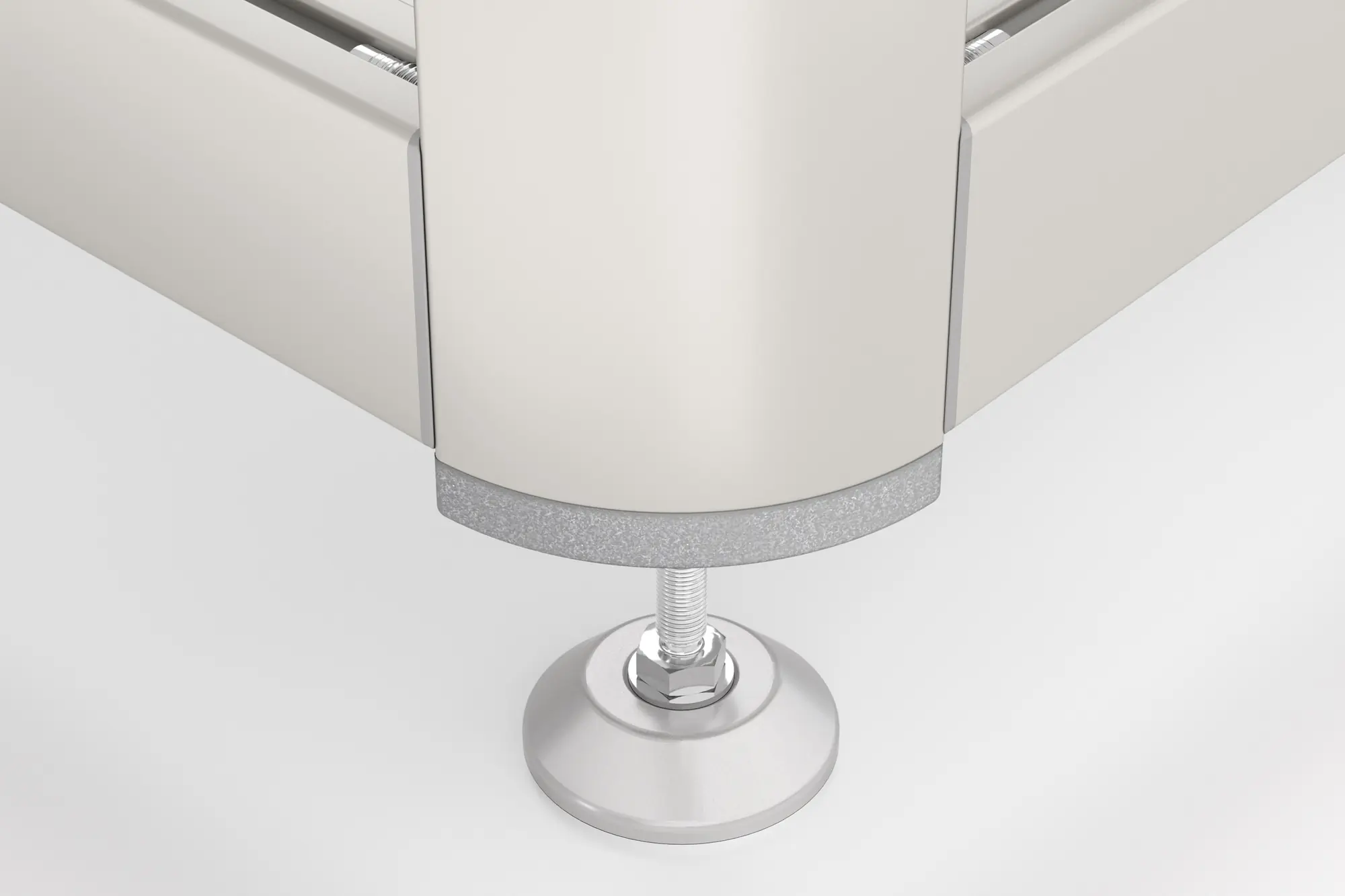

Curved, but never crooked! Base Plate/Transport Plate 8 80x80-R80, M12 provides a stable footing and evens out height differences on structures that use Profile 8 R40/80-90°. As a result, outer corners can be designed with a gentle curve. The Base Plate/Transport Plate is screwed into the three core bores of the profile. The M12 bore can accommodate Adjustable Feet or Castors.
Maximum loading: F = 5000 N
An M8x18 thread must be tapped in a core bore before the Base Plate can be screwed into it. Hexagon Socket Head Cap Screw DIN 912-M8x25 (0.0.610.71) is used as a fastener. Fastening Set 8 6-8mm with Hexagon Socket Head Cap Screw M8 (0.0.684.91) is used to create a screw connection with a Line 8 groove. In both cases, the tightening torque is 25 Nm.
