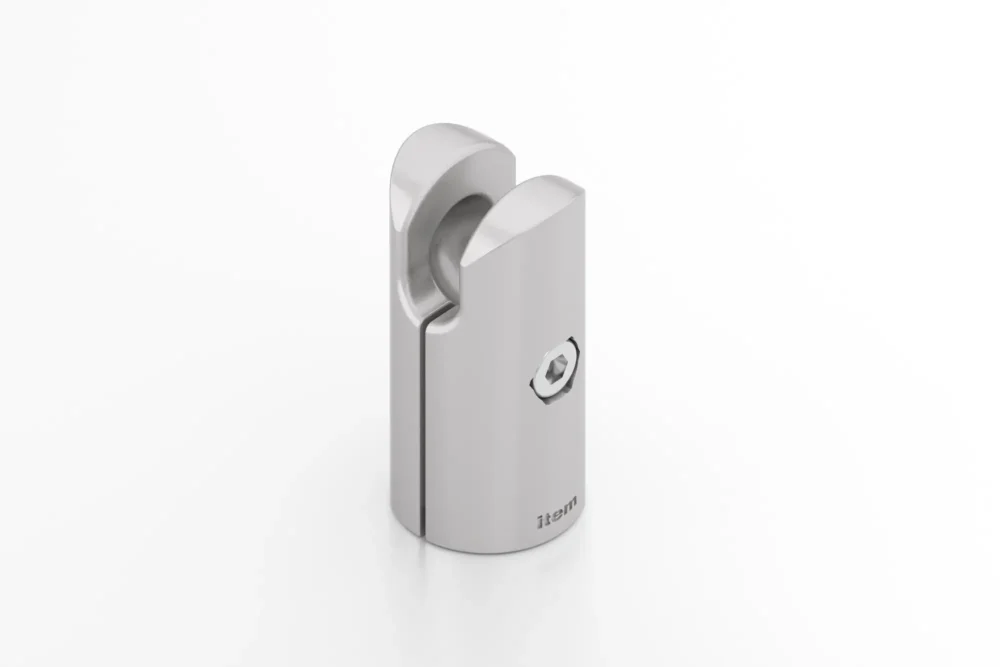

Ball Joint 8, Socket
2 hinge halves, die-cast aluminium, RAL 9006 white aluminium Hexagon Socket Head Cap Screw M8x30, St, bright zinc-plated Hexagon Nut M8, St, bright zinc-plated
Scope of Delivery
2 hinge halves, die-cast aluminium, RAL 9006 white aluminium Hexagon Socket Head Cap Screw M8x30, St, bright zinc-plated Hexagon Nut M8, St, bright zinc-plated
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 200 g |
| Delivery unit | 1 set |
Ball Joint 8 is used to interconnect Line 8 profiles at any chosen angle. It can be screwed into the profile groove or into the end face of the profile. Ball Joints can be used for lightweight adjustment devices and for connecting and stabilising diagonals. Ball Joint 8 is also available in a variation with a Clamp Lever for rapid manual adjustments.
Each Ball Joint 8 requires two balls that are suitable for the profiles being connected: - Ball 40x40 for connection to Profiles 8 with right-angled cross-sections - Ball D40 for connection to Profiles 8 D40 (with cylindrical cross-section)
Max. tightening torque of central securing screw M8: M A = 25 Nm Permissible loading moments for Ball Joint 8: Deflection M B = 2 Nm Torsion T = 3 Nm
