Automatic Flat Bracket Set 8 120×120 Al

The fastest profile connection ever – automatic angle brackets and automatic flat brackets from item. These innovative fasteners are fully preassembled and ready for use. Simply fit them in place and the screws slot into the correct position. Tighten the screws and that’s it, the profiles are held in place without the need for additional T-Slot Nuts. Automatic Flat Bracket Sets and Automatic Angle Bracket Sets virtually install themselves. No threads need to be tapped and profiles don’t need to be machined. The fasteners can be inserted at any point along a Line 8 groove and can be reused and repositioned whenever required. All you need to do is turn the screws. Automatic Angle Bracket Sets make connections inside the frame contour and Automatic Flat Bracket Sets produce readily accessible connections on the outside of the frame. Unlike other profile fasteners, automatic flat brackets are installed on the profiles and can therefore be used to reinforce connections, since the large support width is extremely effective at compensating for torque loads. Profile connections made with automatic flat and angle bracket sets can also compensate for inaccuracies and errors made when cutting profiles to length. Automatic flat bracket and angle bracket sets are ideal whenever work needs to move fast. They are an ingenious innovation from item that further simplifies assembly work.

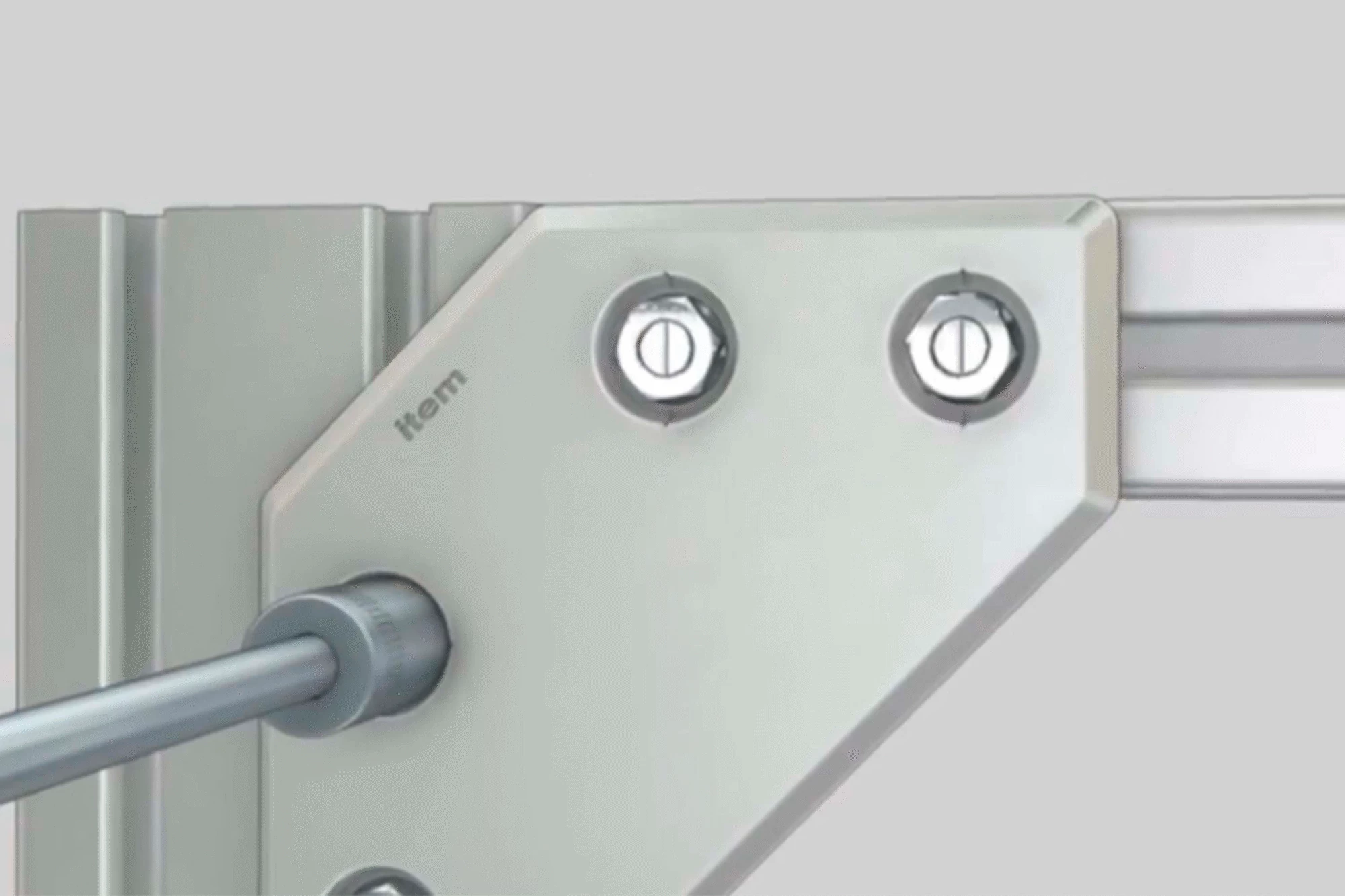

Simply slot the angle and flat brackets with preassembled automatic T-slot screws into a Line 8 groove. Tighten the nut and that’s it – the fastest profile connection ever. Recommended tightening torque: 20 Nm

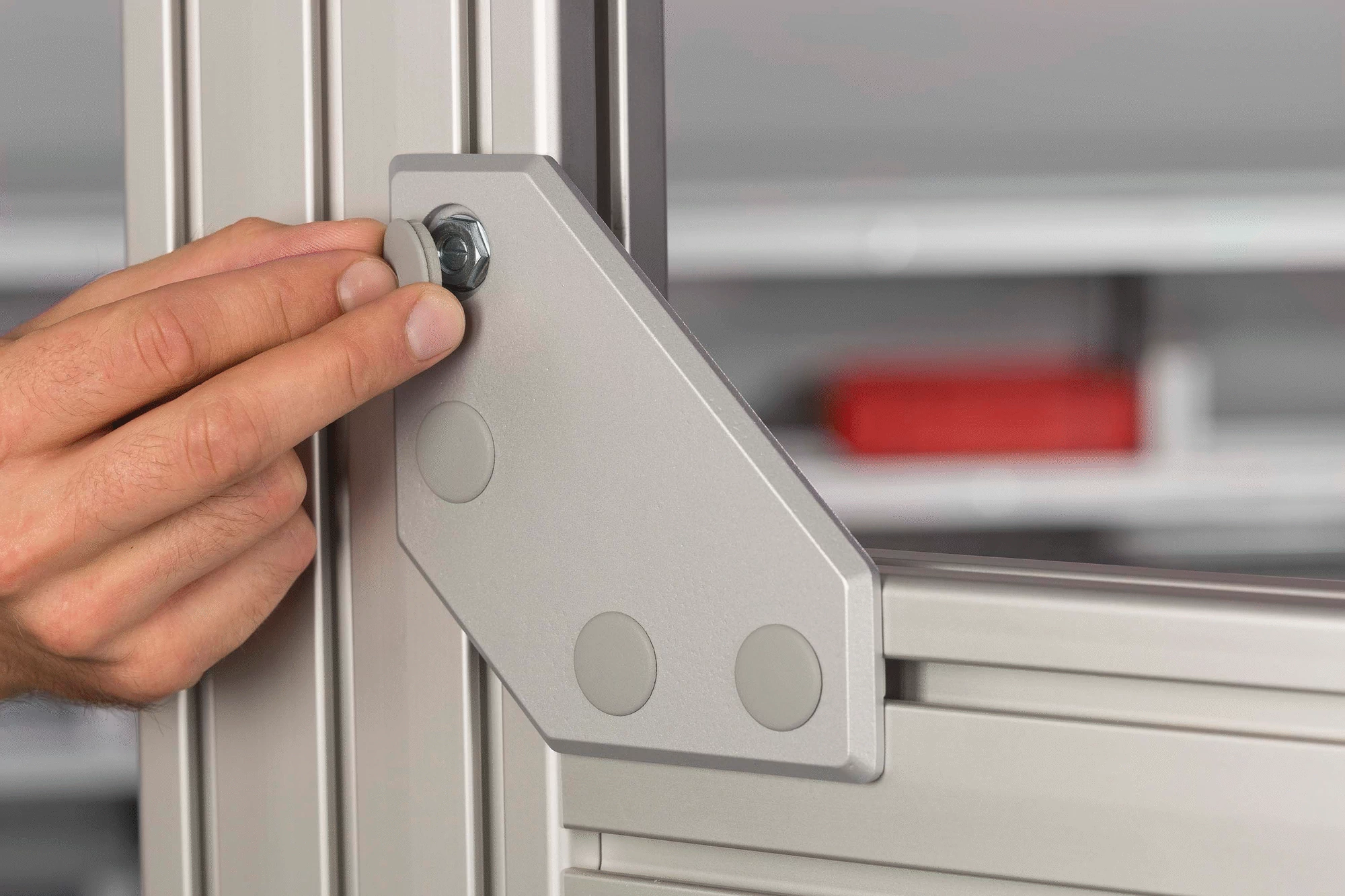

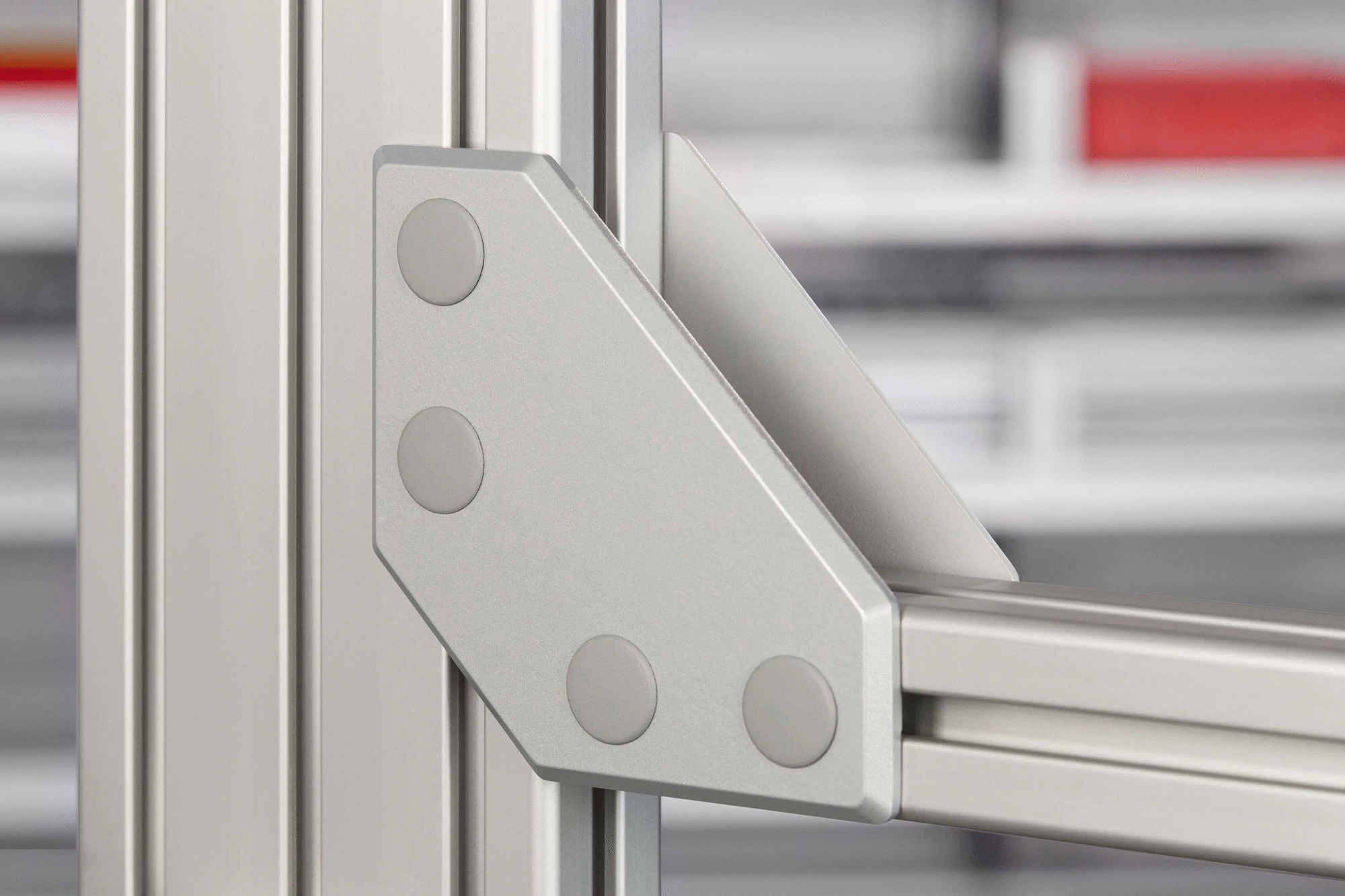

When using Automatic Flat Bracket Sets, caps cover the nuts, which are located on the outside of the construction.

F < 2,000 N ^ F x l < 150 Nm The load-carrying capacity is to be checked to ensure both conditions are met.
