| Automatic-Fastening Set 8 NO, stainless | CADPDFRFQ |
Preview
Automatic-Fastening Set 8 NO, stainless
Automatic Fastener 8 N, St, stainless Cap, PA grey Hexagon Socket Head Cap Screw M6x30, St, stainless T-Slot Nut 8 St M6, stainless
Scope of Delivery
Automatic Fastener 8 N, St, stainless Cap, PA grey Hexagon Socket Head Cap Screw M6x30, St, stainless T-Slot Nut 8 St M6, stainless
Properties
| line 8 | line 8 |
|---|---|
| Property | stainless |
| ESD-safe | Yes |
| Weight | m = 29 g |
| Delivery unit | 1 set |
| Torque | M = 11 Nm |

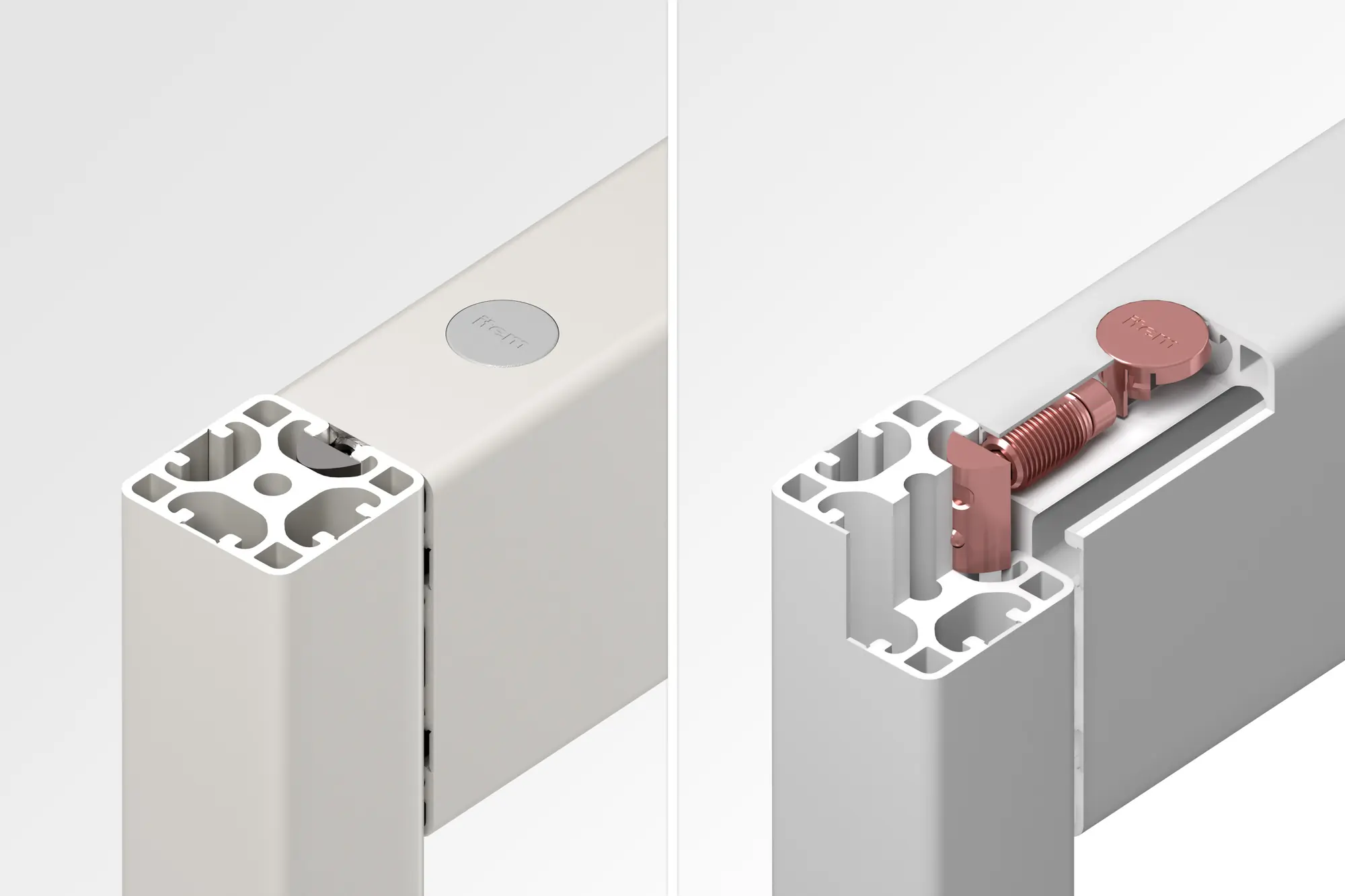

Automatic-Fastening Set 8 NO, stainless from item joins two Line 8 profiles at a right angle to create a connection that is exceptionally resistant to displacement, torsion and bending. This variant has been optimised for profiles with closed grooves. The shortened Automatic Fastener is screwed into a profile groove. The wall of the profile only needs to be opened up a minimal amount so that the Hexagon Socket Head Cap Screw can be tightened. Profiles can be retrofitted to constructions and moved at any time.
With automatic fastening sets, profiles can be retrofitted or moved in existing constructions.
Automatic-Fastening Sets should always be used in pairs.
