| Automatic-Fastening Set 8 NO, bright zinc-plated | CADPDFRFQ |
Preview
Automatic-Fastening Set 8 NO, bright zinc-plated
Automatic Fastener 8 N, St, black Cap, PA grey Hexagon Socket Head Cap Screw M6x30, St, bright zinc-plated T-Slot Nut V 8 St M6, bright zinc-plated
Scope of Delivery
Automatic Fastener 8 N, St, black Cap, PA grey Hexagon Socket Head Cap Screw M6x30, St, bright zinc-plated T-Slot Nut V 8 St M6, bright zinc-plated
Properties
| line 8 | line 8 |
|---|---|
| Property | bright zinc-plated |
| ESD-safe | Yes |
| Weight | m = 27 g |
| Delivery unit | 1 set |
| Torque | M = 14 Nm |

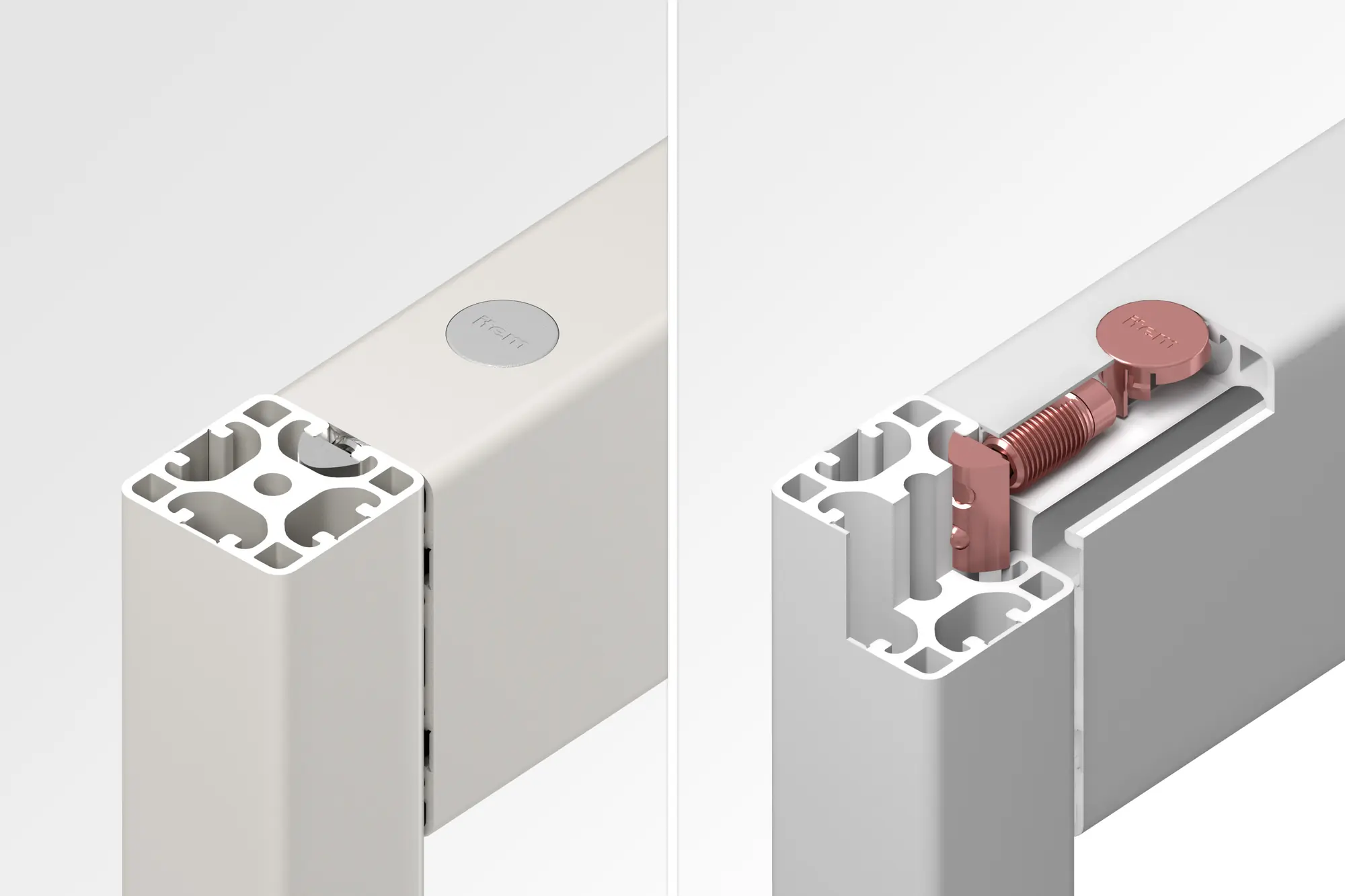

Automatic-Fastening Set 8 NO, bright zinc-plated from item joins two Line 8 profiles at a right angle to create a connection that is highly resistant to displacement, torsion and bending. This variant has been optimised for profiles with closed grooves. The shortened Automatic Fastener is screwed into a profile groove. The wall of the profile only needs to be opened up a minimal amount so that the Hexagon Socket Head Cap Screw can be tightened. Profiles can be retrofitted to constructions and moved at any time.
With automatic fastening sets, profiles can be retrofitted or moved in existing constructions.
Automatic-Fastening Sets should always be used in pairs.
