Automatic-Fastening Set 8 80
2 Automatic Fasteners 8, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912-M6x40, St, bright zinc-plated T-Slot Nut 8 St 2xM6-76, bright zinc-plated
Scope of Delivery
2 Automatic Fasteners 8, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912-M6x40, St, bright zinc-plated T-Slot Nut 8 St 2xM6-76, bright zinc-plated
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 81.5 g |
| Delivery unit | 1 set |
| Torque | M = 14 Nm |

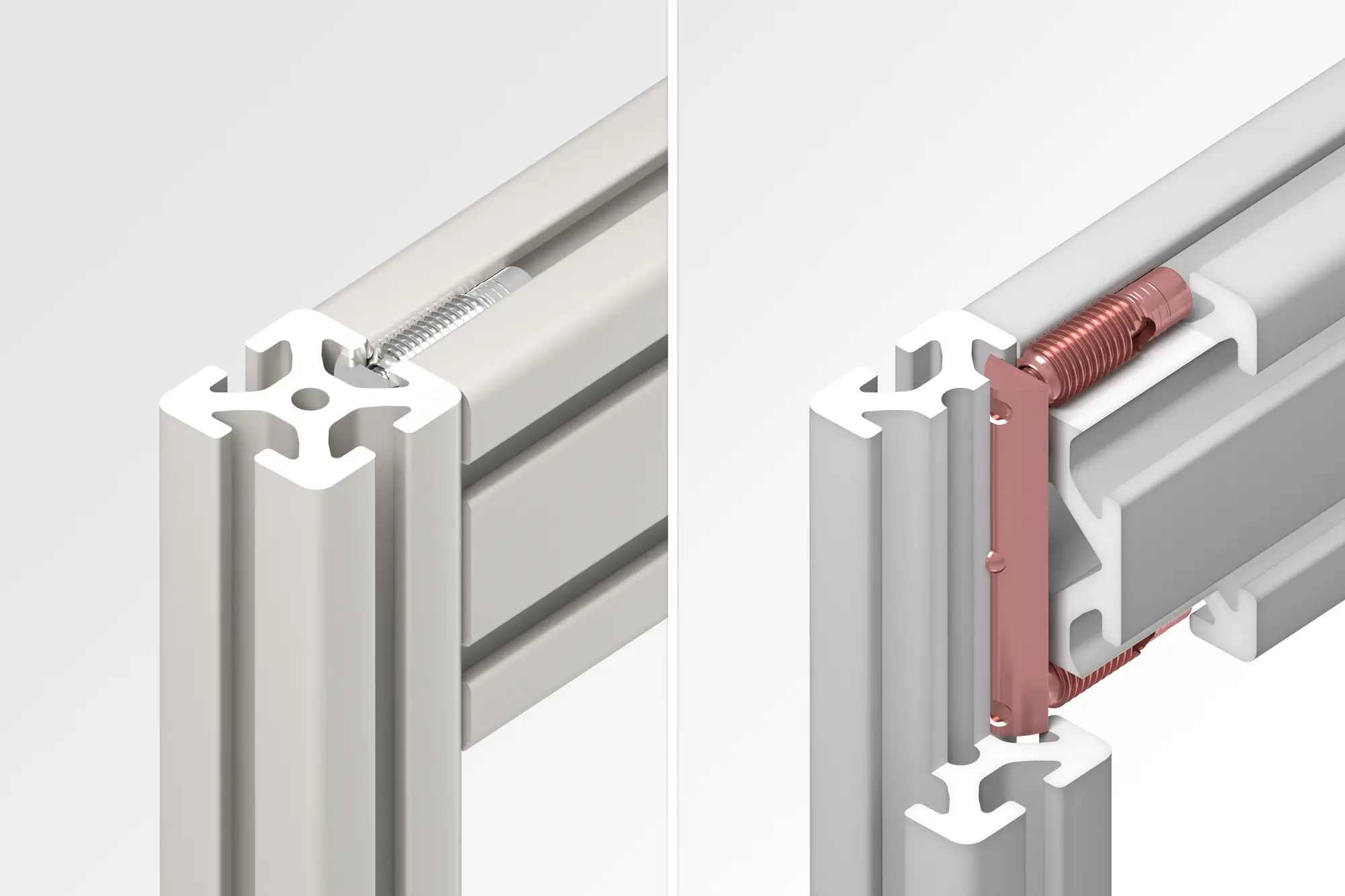

Automatic-Fastening Set 8 80 from item joins two Line 8 profiles at a right angle to create a connection that is highly resistant to displacement, torsion and bending. The T-Slot Nut with two threads makes it easier to fasten both Automatic Fasteners in the modular dimension of 80 mm. The fastener can be used to prevent twisting. The Automatic Fasteners are each screwed into a profile groove and do not require any profile machining. Profiles can be retrofitted to constructions and moved at any time.
Automatic Fasteners should generally be used in pairs. To speed up the installation process, sets that comprise two Automatic Fasteners and one T-Slot Nut with two threads are also available for various profile variants.
With automatic fastening sets, profiles can be retrofitted or moved in existing constructions.
