| Automatic-Fastening Set 12, bright zinc-plated | CADPDFRFQ |
Preview
Automatic-Fastening Set 12, bright zinc-plated
Automatic Fastener 12, St, bright zinc-plated Hexagon Socket Head Cap Screw DIN 912-M8x60, St, bright zinc-plated T-Slot Nut 12 St M8, bright zinc-plated
Scope of Delivery
Automatic Fastener 12, St, bright zinc-plated Hexagon Socket Head Cap Screw DIN 912-M8x60, St, bright zinc-plated T-Slot Nut 12 St M8, bright zinc-plated
Properties
| line 12 | line 12 |
|---|---|
| Property | bright zinc-plated |
| ESD-safe | Yes |
| Weight | m = 125 g |
| Delivery unit | 1 set |
| Tightening torque, bright zinc-plated | Mbz-p = 34 Nm |

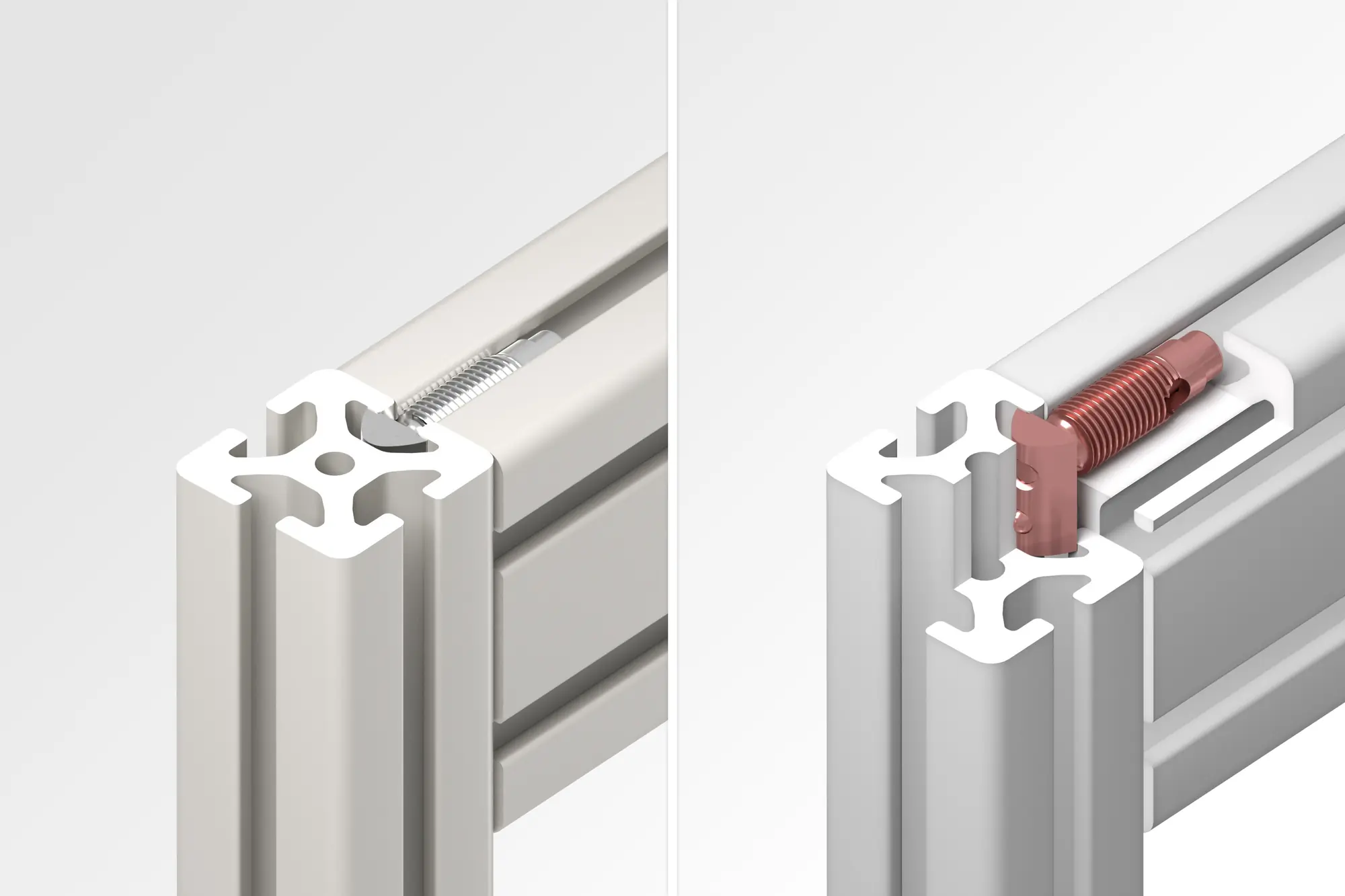

Automatic-Fastening Set 12, bright zinc-plated from item joins two Line 12 profiles at a right angle to create a connection that is highly resistant to displacement, torsion and bending. The fastener can be used to prevent twisting. Automatic Fasteners are screwed into the profile groove and do not require any profile machining. Profiles can be retrofitted to constructions and moved at any time. Automatic Fasteners should generally be used in pairs.
With automatic fastening sets, profiles can be retrofitted or moved in existing constructions.
