| Assembly Set 8, Telescopic Rail heavy duty 19.1×53.1 | CADPDFRFQ |
Preview

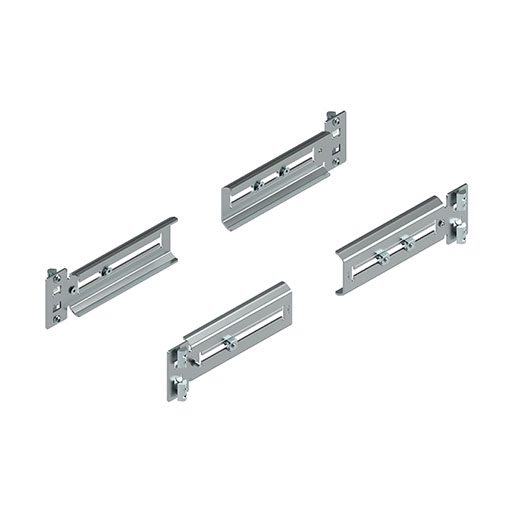

Assembly Set 8, Telescopic Rail heavy duty 19.1×53.1

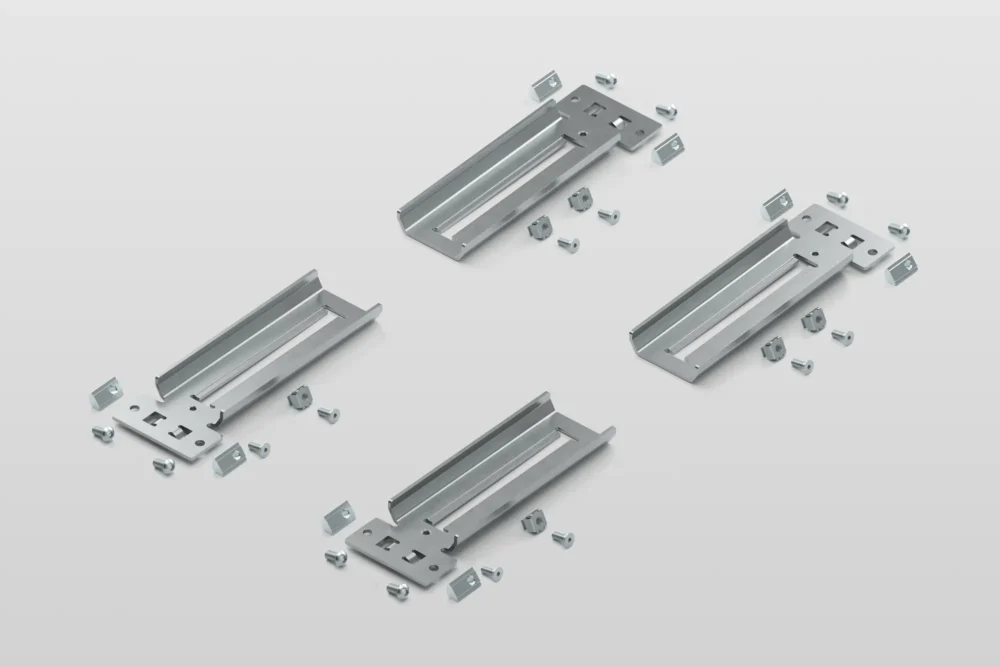

4 fastening brackets 8, Telescopic Rail heavy duty 19.1×53.1, St, bright zinc-plated 8 T-Slot Nuts V 8 St M6, bright zinc-plated 6 Captive Nuts M5 St, bright zinc-plated 8 Countersunk Screws DIN 7991 M5x14, St, bright zinc-plated 8 Button-Head Screws ISO 7380 M6x12, St, bright zinc-plated
Scope of Delivery
4 fastening brackets 8, Telescopic Rail heavy duty 19.1x53.1, St, bright zinc-plated 8 T-Slot Nuts V 8 St M6, bright zinc-plated 6 Captive Nuts M5 St, bright zinc-plated 8 Countersunk Screws DIN 7991 M5x14, St, bright zinc-plated 8 Button-Head Screws ISO 7380 M6x12, St, bright zinc-plated
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 1.3 kg |
| Delivery unit | 1 set |
| cleanroom suitability | No |
| Presentation | 2026-03-24T00:00:00 |

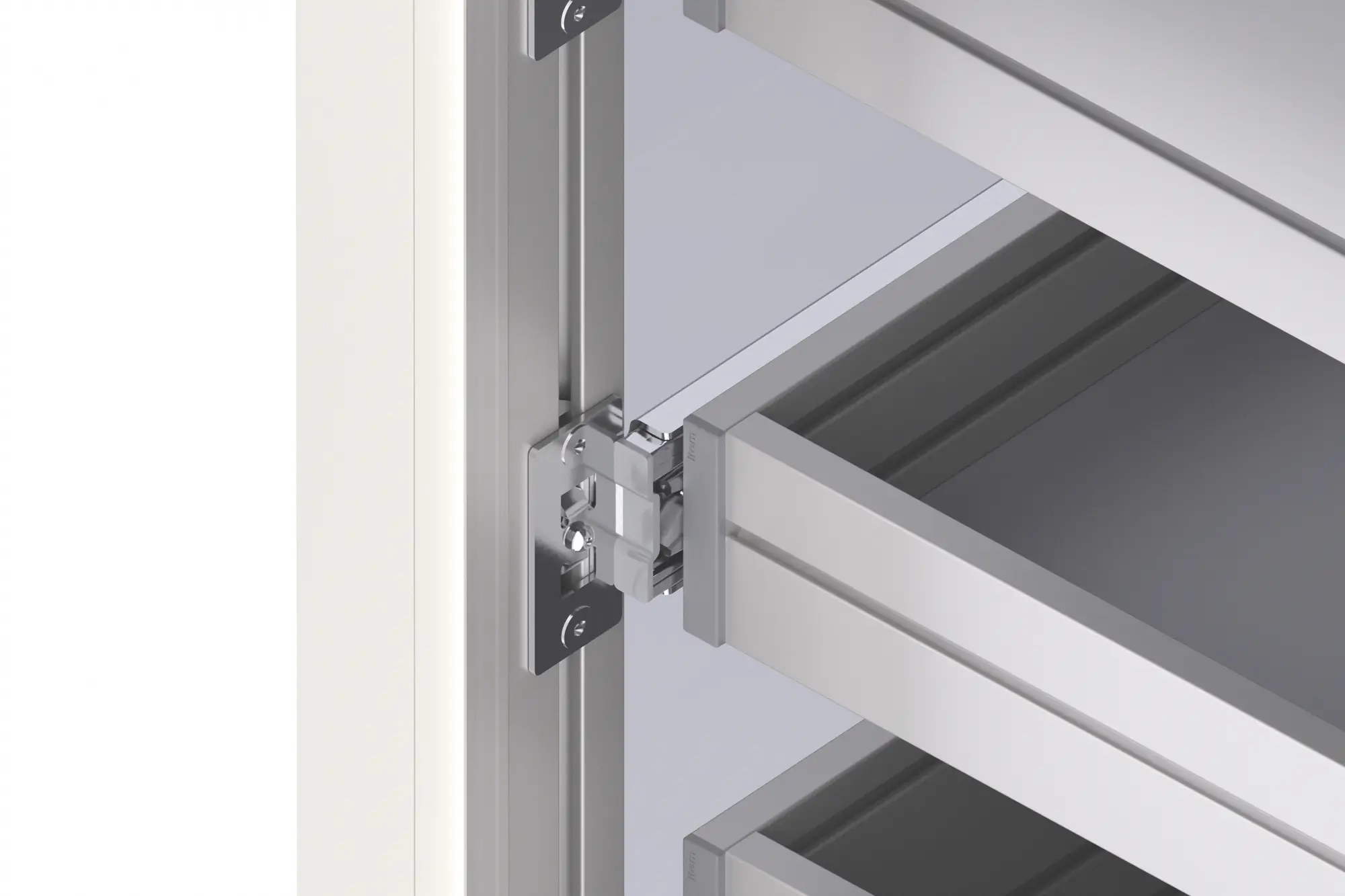

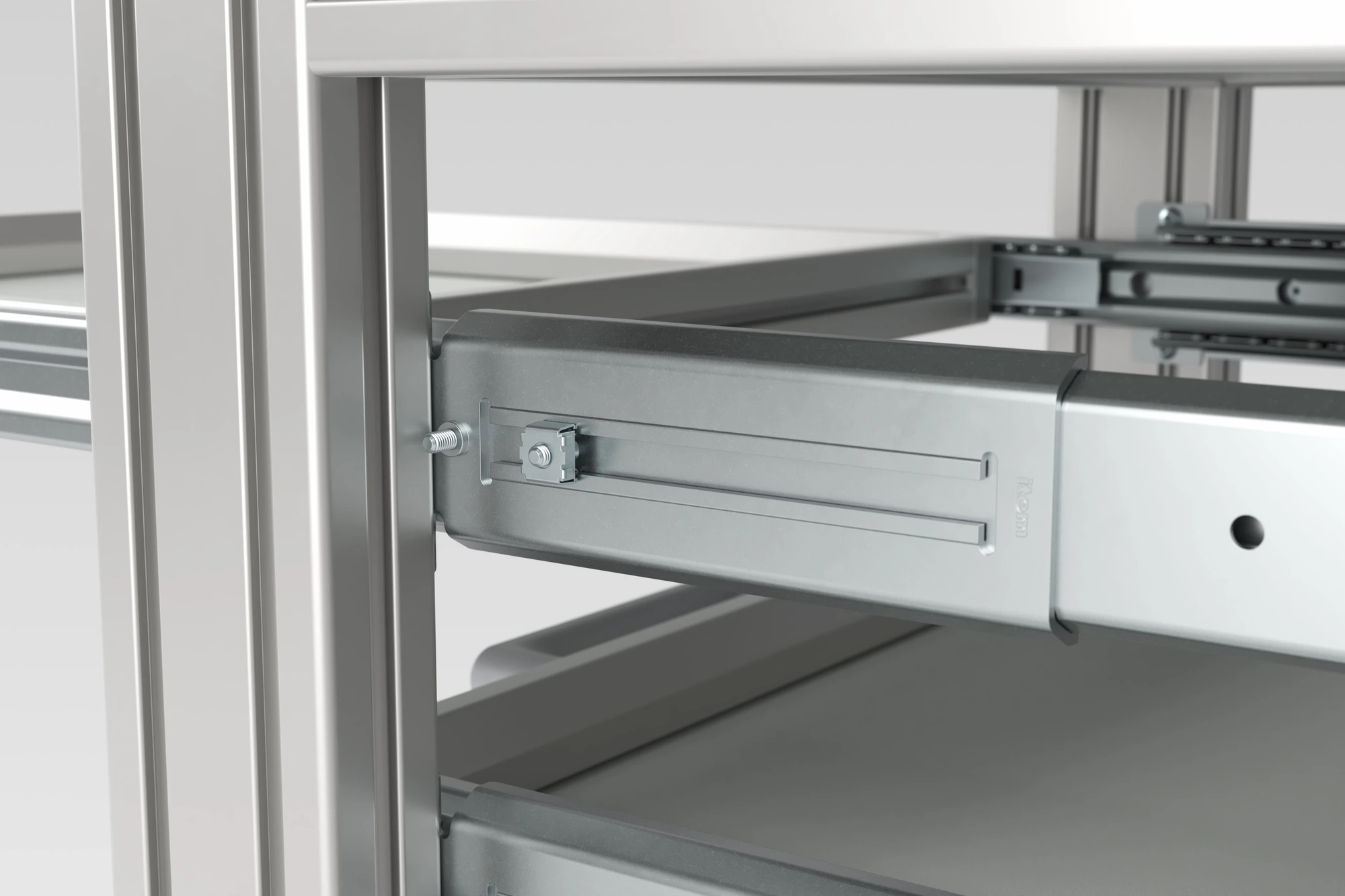

Assembly Set 8, Telescopic Rail heavy duty 19.1x53.1 includes the fixings needed to fasten a pair of item Telescopic Rails heavy duty 19.1x53.1, over extension to a profile frame. Additional cross profiles are not required.
Using Assembly Set 8, Telescopic Rail heavy duty 19.1x53.1 and the recommended screw-fastening in the Line 8 groove of the profile frame ensures that the full load-carrying capacity of the Telescopic Rails can be utilised.
