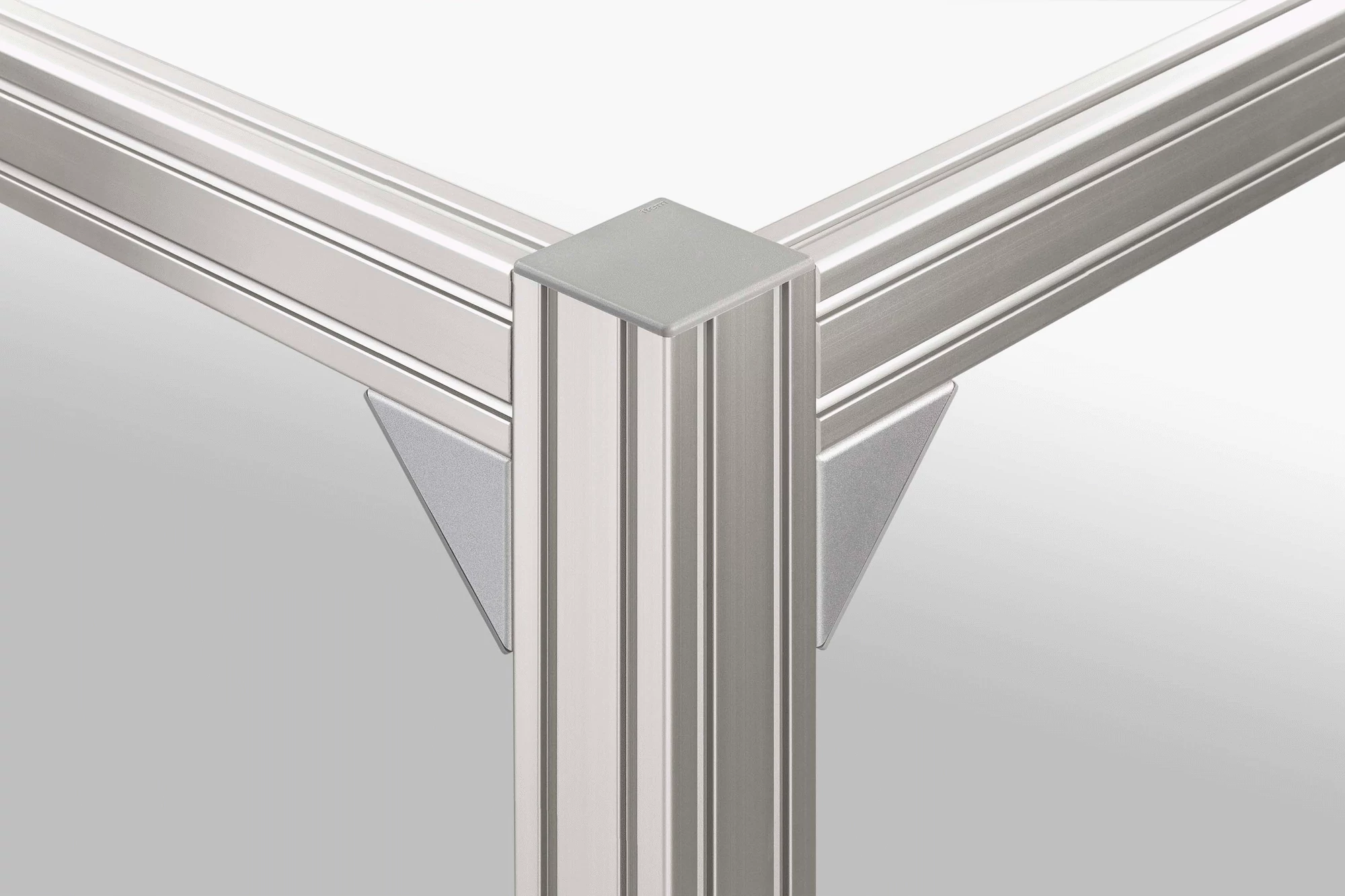

Angle Bracket Set 8 80×80
Angle Bracket 8 80×80, die-cast zinc, white aluminium, similar to RAL 9006 Angle Bracket Cap 8 80×80, PA-GF, grey, similar to RAL 7042 4 Button-Head Screws ISO 7380-M8x18, St, bright zinc-pl. 4 Washers 13.9×13.9×2 St, bright zinc-plated 4 T-Slot Nuts 8 St M8, bright zinc-plated
Scope of Delivery
Angle Bracket 8 80x80, die-cast zinc, white aluminium, similar to RAL 9006 Angle Bracket Cap 8 80x80, PA-GF, grey, similar to RAL 7042 4 Button-Head Screws ISO 7380-M8x18, St, bright zinc-pl. 4 Washers 13.9x13.9x2 St, bright zinc-plated 4 T-Slot Nuts 8 St M8, bright zinc-plated
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 391 g |
| Delivery unit | 1 set |
Angle Bracket Sets 8 create a friction-based connection between profiles, with no machining required. They are therefore frequently used to provide additional reinforcement for profile connections. The enclosed Cap covers over the screw heads to make cleaning easier. It also enhances the harmonious appearance of structures. The Cap for Angle Bracket Sets 8 40x40 and 8 80x80 is now also available in neutral grey. Technically identical Angle Bracket Sets 8 40x40 (0.0.411.15) and 8 80x80 (0.0.411.32) are available as alternatives, each with a black Cap.
When used to reinforce the joints of large profiles or conduits, several Angle Brackets can be used in parallel. Note: Ensure the maximum permissible tensile load on the Profile Groove is not exceeded! For Angle Brackets of Lines 6, 8 and 12, special square washers are used to improve the application of the clamping force. F < 2,000 N ^ F x l < 150 Nm The load-carrying capacity is to be checked to ensure both conditions are met.
Angle Brackets are ideal for connecting cable conduits. The rounded internal edge prevents damage to the cables.
