| Angle Bracket 8 160×160-40 Al M8, white aluminium, similar to RAL 9006 | CADPDFRFQ |
Preview
Angle Bracket 8 160×160-40 Al M8, white aluminium, similar to RAL 9006
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 480 g |
| Delivery unit | 1 pce. |
| Material | Die-cast Al |
| Colour | white aluminium, similar to RAL 9006 |

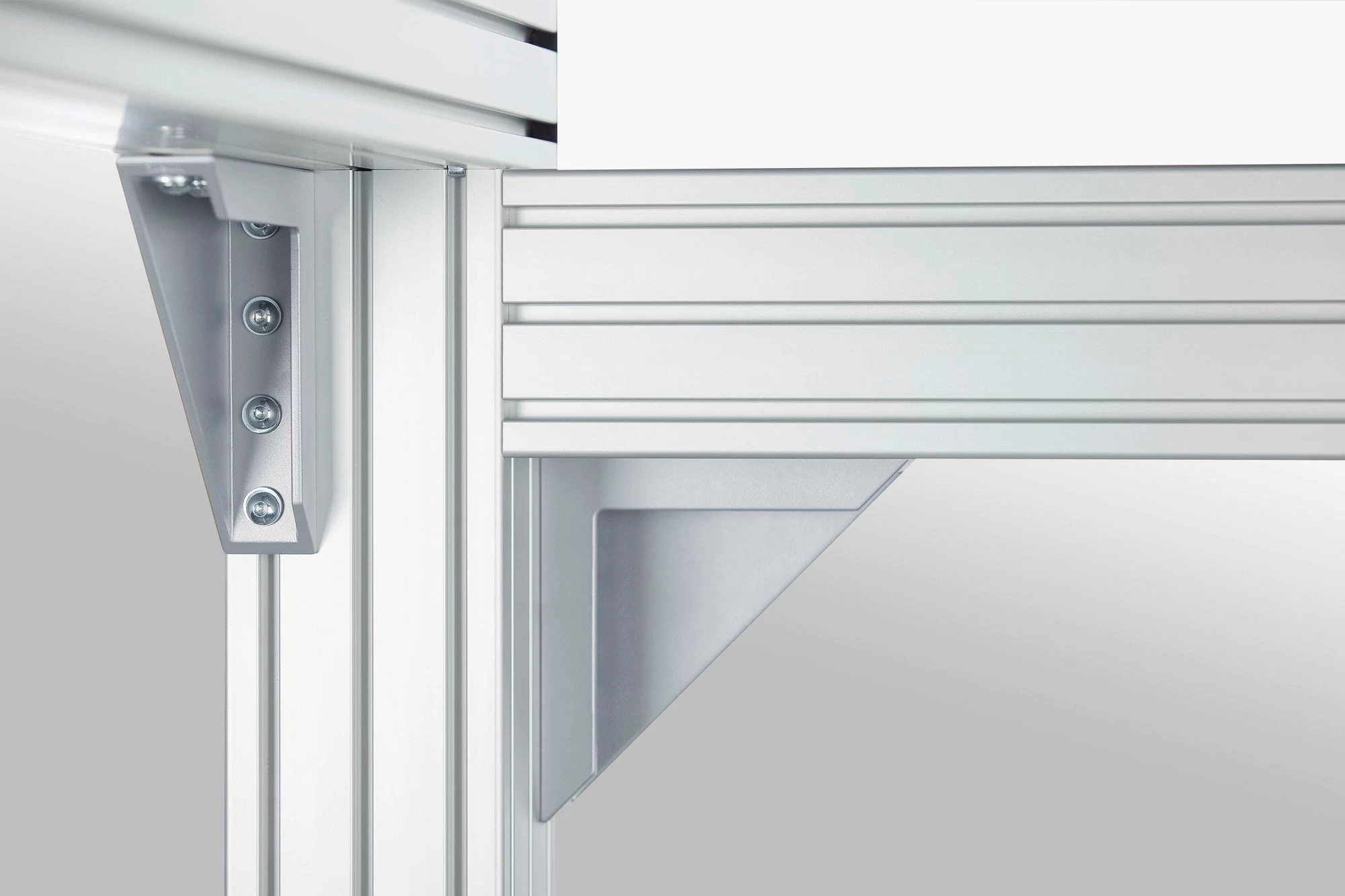

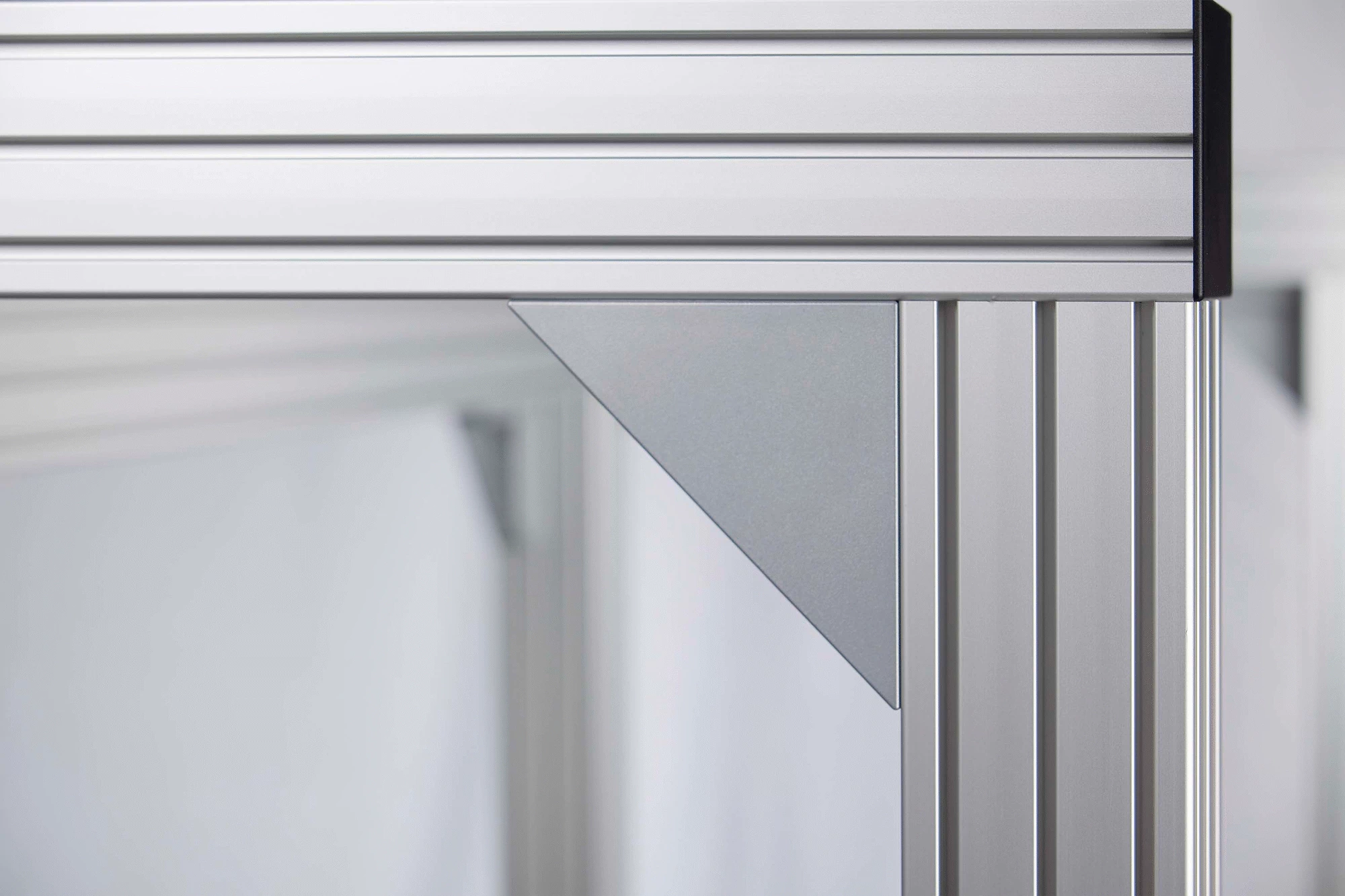

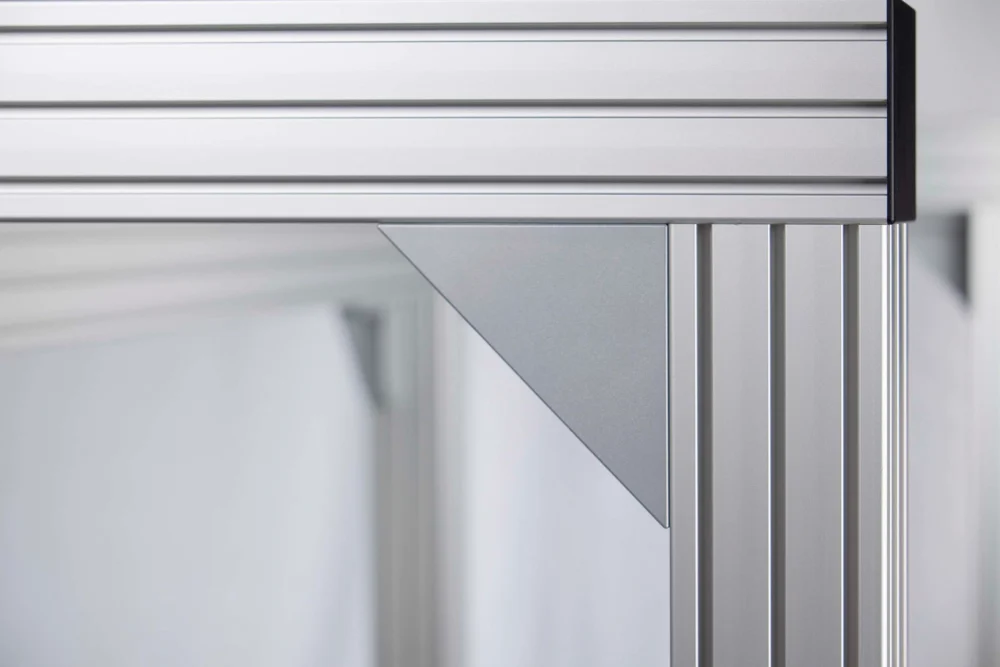

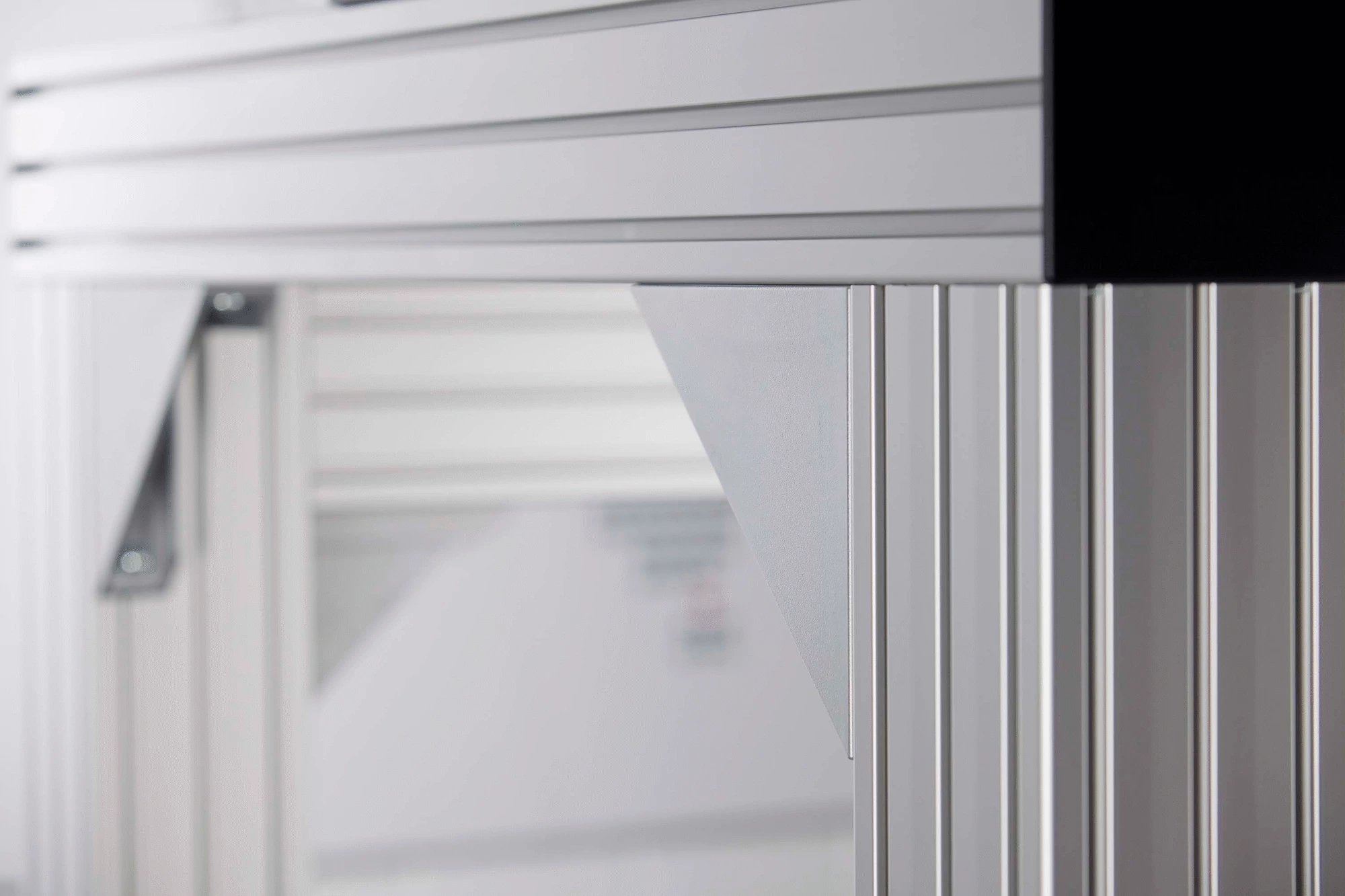

Fastening technology to rely on. Stable angle bracket fastenings for all Profiles 8: no processing, retrofittable and extremely strong. The new Angle Bracket 8 160x160-40 Al M8 can be quickly fitted with appropriate Fastening Sets and securely stabilises heavily loaded structures.
F < 4.000 N ∧ F x l < 400 Nm The load-carrying capacity is to be checked based on both conditions.
