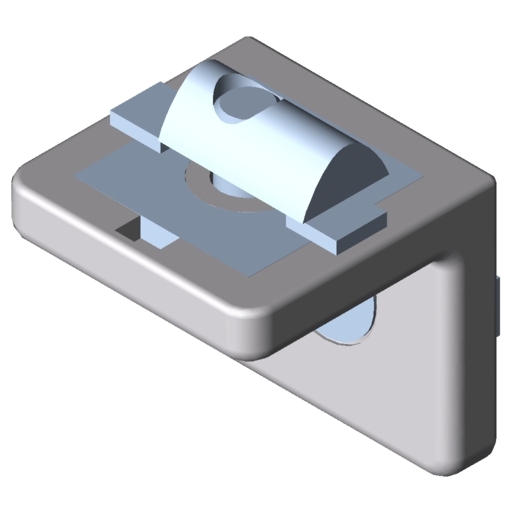

Preview
Angle Bracket 2V 8 40

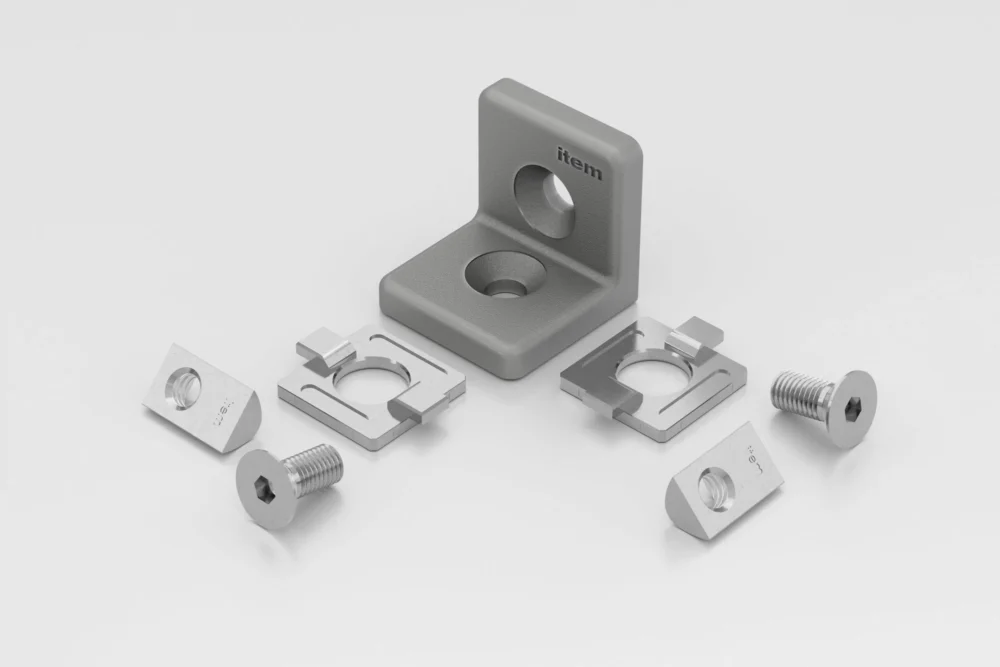

1 Angle Bracket, die-cast Al, natural 2 inserts, die-cast zinc, bright zinc-plated 2 T-Slot Nuts 8 St M8, St, bright zinc-plated 2 Countersunk Screws DIN 7991 M8x18, St, bright zinc-plated
Scope of Delivery
1 Angle Bracket, die-cast Al, natural 2 inserts, die-cast zinc, bright zinc-plated 2 T-Slot Nuts 8 St M8, St, bright zinc-plated 2 Countersunk Screws DIN 7991 M8x18, St, bright zinc-plated
Properties
| Torque | M = 25 Nm |
|---|---|
| line 8 | line 8 |
| ESD-safe | No |
| Weight | m = 101 g |
| Delivery unit | 1 set |

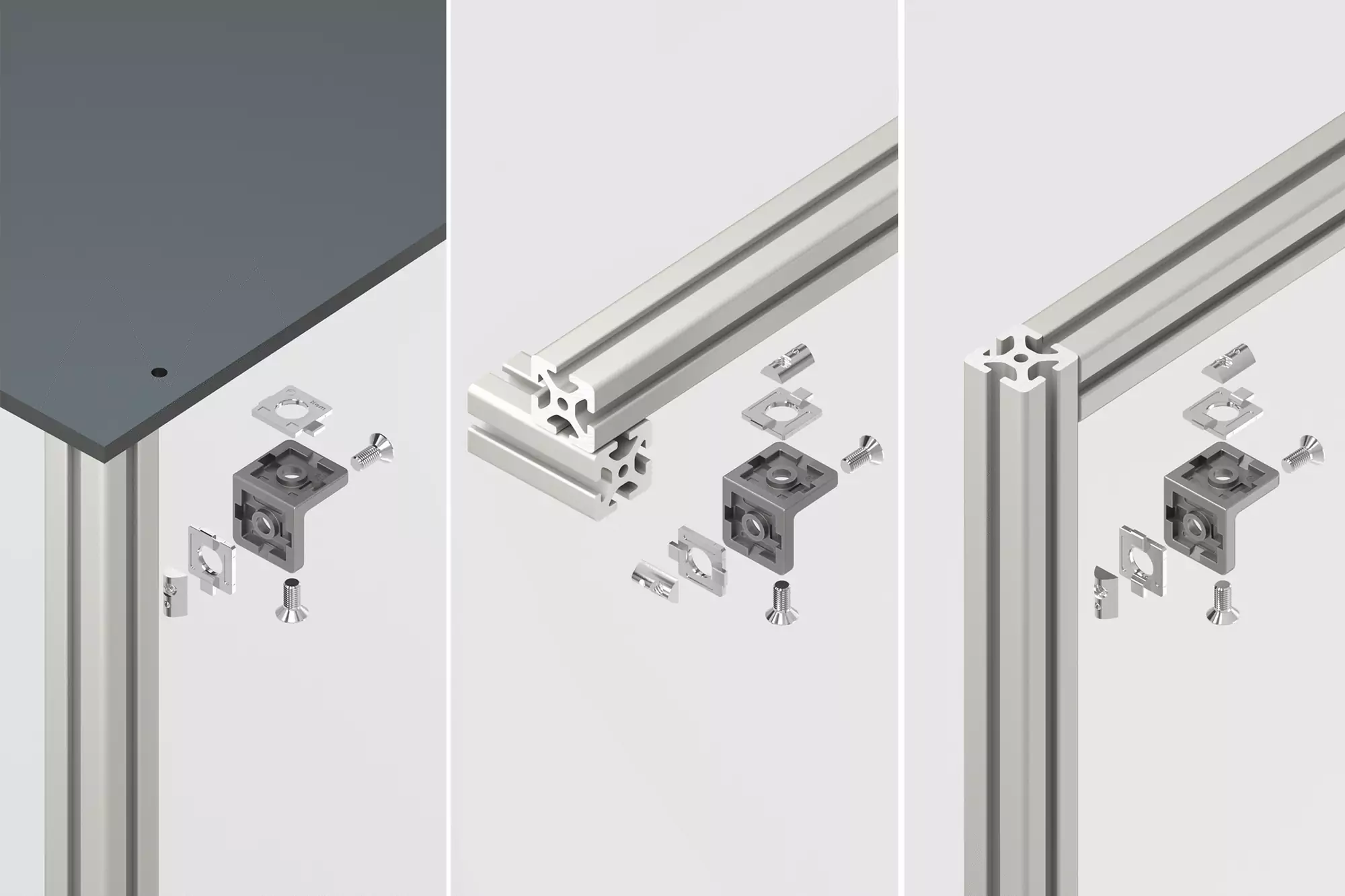

Angle Bracket 2V 8 40 features two inserts with anti-torsion features. It can be used to create right-angled and crossing profile connections with no need for additional machining. This metal bracket can also be used to fasten panel elements to profiles. The inserts can be fitted in 90° increments and reversed. This ensures the anti-torsion features can be positioned to match the alignment of the profile groove. Reversing the insert creates a flat surface.

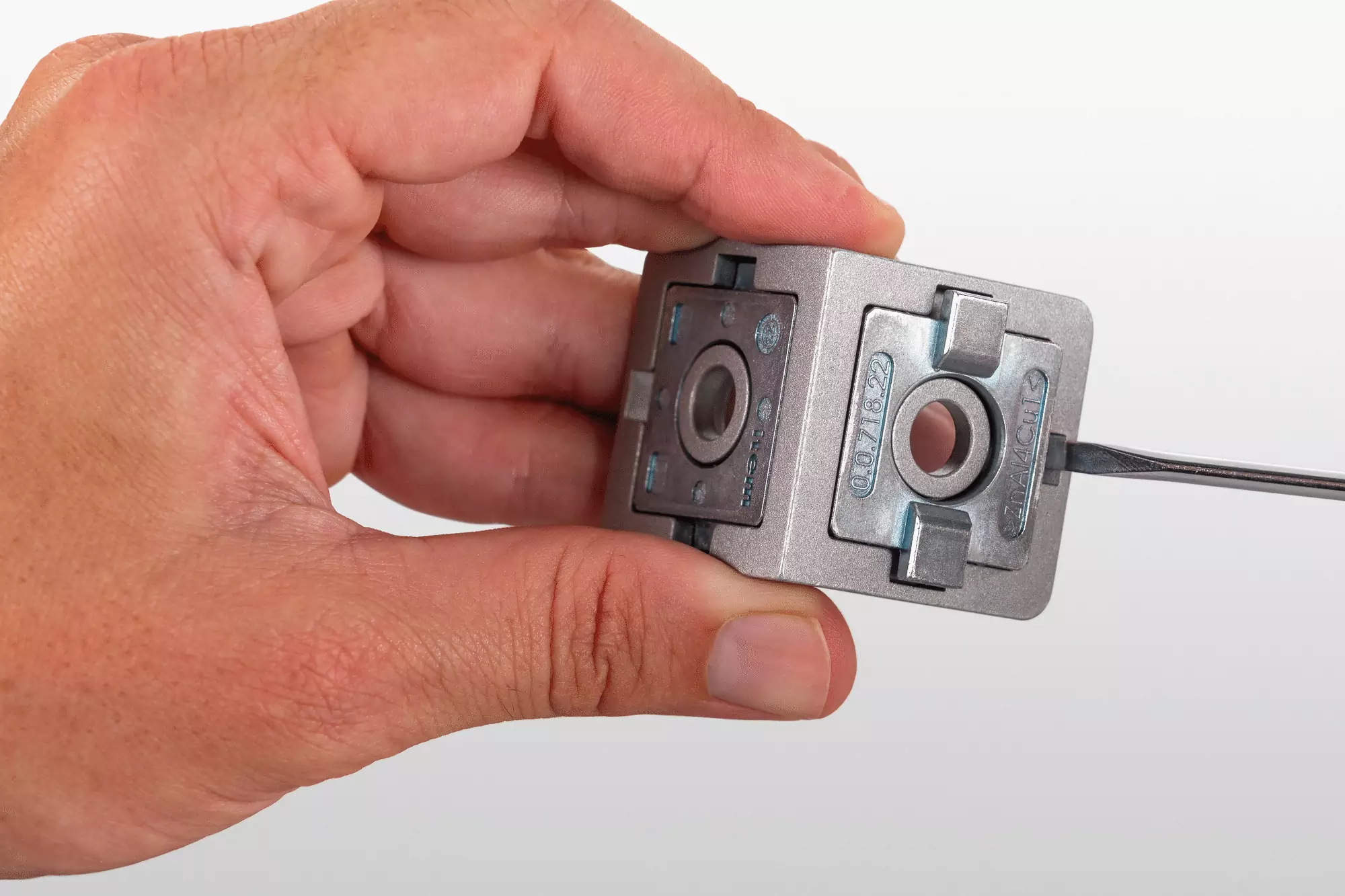

The inserts are positioned on the reverse sides of the Angle Bracket and are secured by the screw. A screwdriver can be used to help adjust their orientation.
