| Adjustable Stand Foot Side Brace 8 | CADPDFRFQ |
Preview

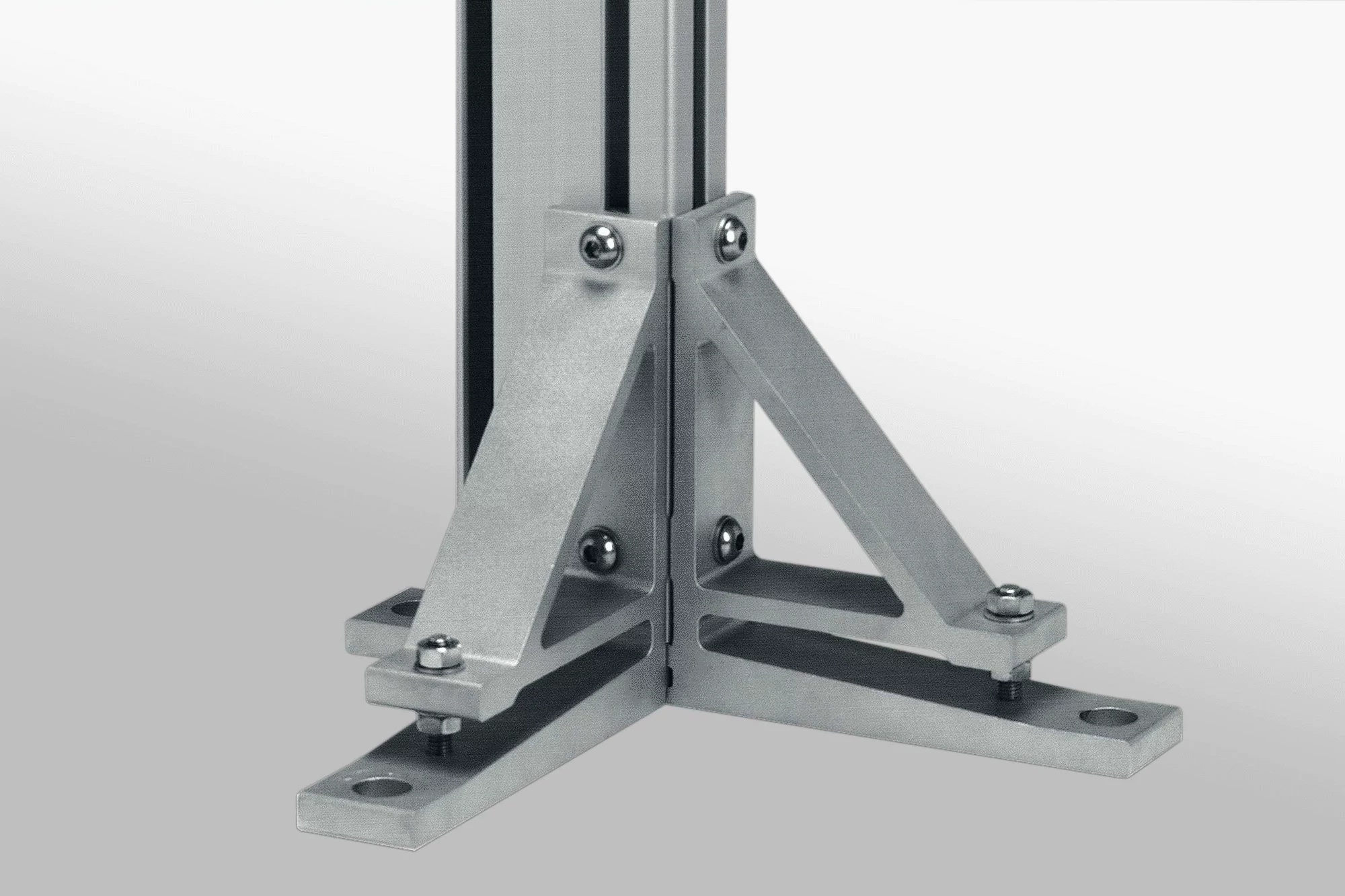

Adjustable Stand Foot Side Brace 8
Adjustable Stand Foot Side Brace, Al, anodized, natural 2 T-Slot Nuts 8 St M8, St, bright zinc-plated 2 Button-Head Screws ISO 7380-M8x20, St, bright zinc-plated 2 Hexagon Nuts DIN 934-M8, St, bright zinc-plated 4 Washers ISO 7089 – 8 – 200 HV, bright zinc-plated Button-Head Screw ISO 7380-M8x45, St, bright zinc-plated
Scope of Delivery
Adjustable Stand Foot Side Brace, Al, anodized, natural 2 T-Slot Nuts 8 St M8, St, bright zinc-plated 2 Button-Head Screws ISO 7380-M8x20, St, bright zinc-plated 2 Hexagon Nuts DIN 934-M8, St, bright zinc-plated 4 Washers ISO 7089 - 8 - 200 HV, bright zinc-plated Button-Head Screw ISO 7380-M8x45, St, bright zinc-plated
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 655 g |
| Delivery unit | 1 set |

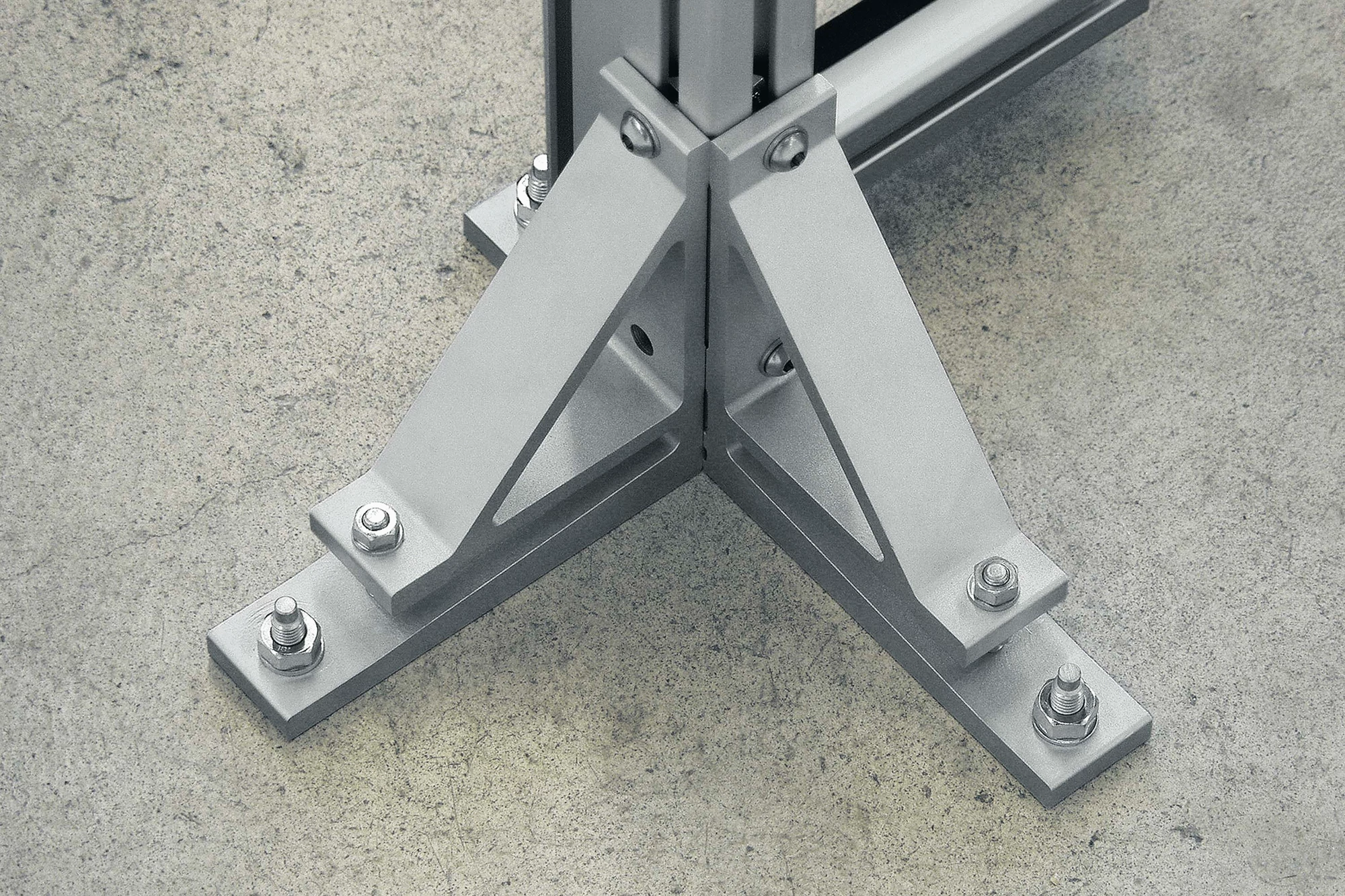

Adjustable Stand Foot Side Brace 8 is used to provide lateral support to an enclosure erected using Adjustable Stand Foot 8. It is inserted into Adjustable Stand Foot 8 and is also screwed to the Stand Profile. The inclination is set in the same way as the Adjustable Stand Foot, using a set screw. Used in conjunction with Adjustable Stand Foot 8, the Stand Profile can then be aligned in all planes.
Adjustable Stand Foot 8 can be used to subsequently align every Stand Profile.
