Adapter 8 D30
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 17.7 g |
| Delivery unit | 1 pce. |
| Material | Die-cast Al |

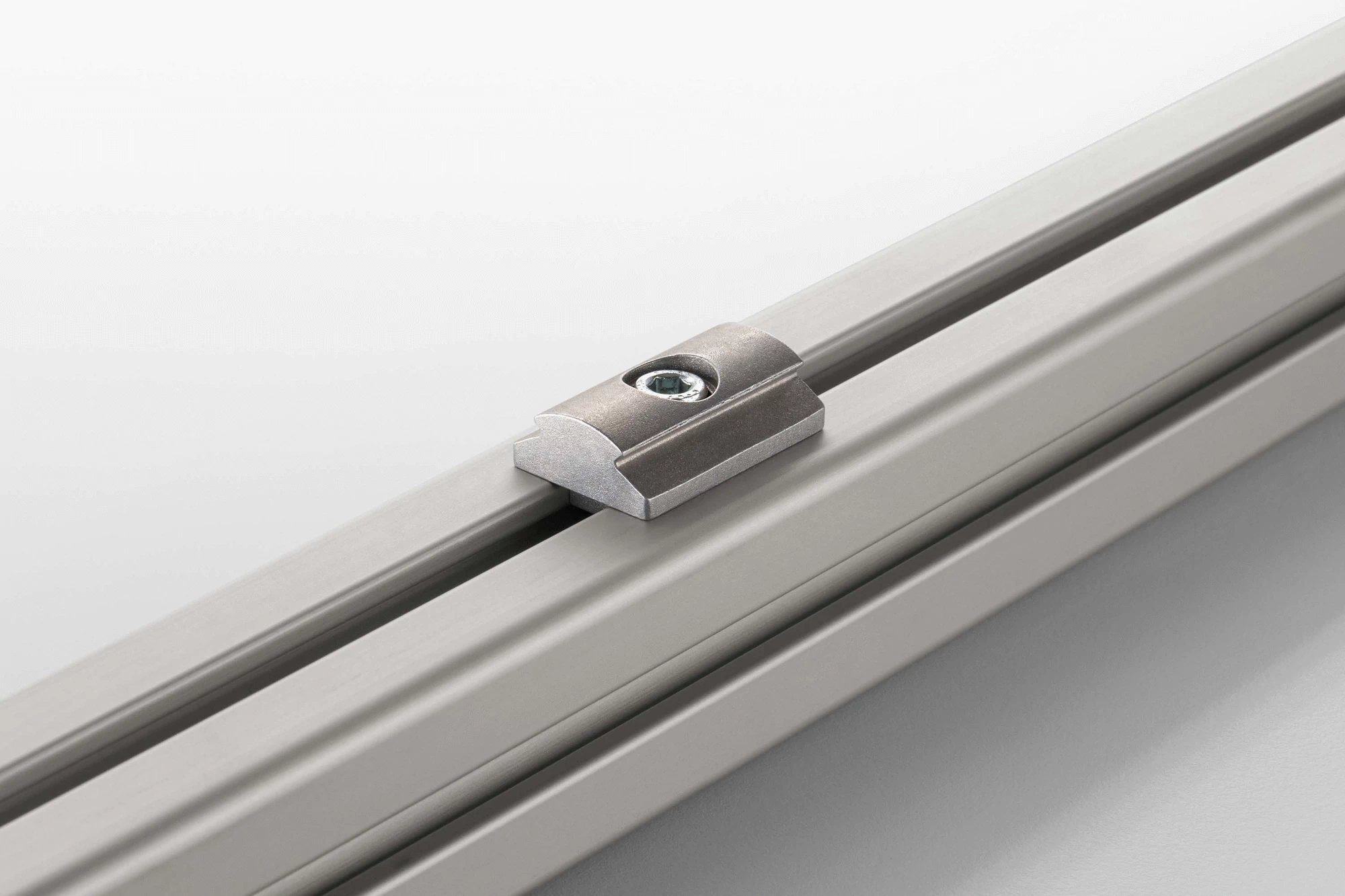

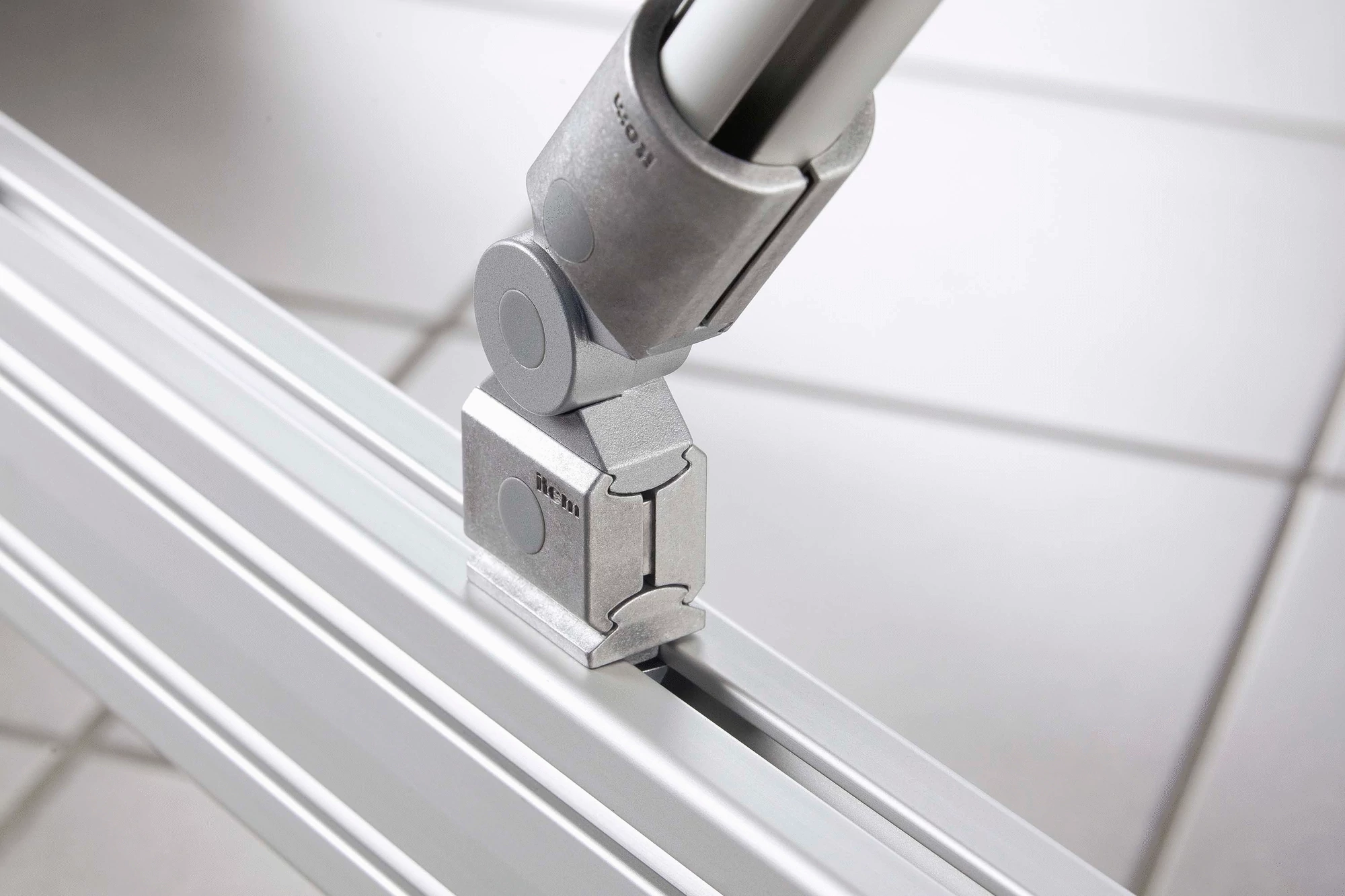

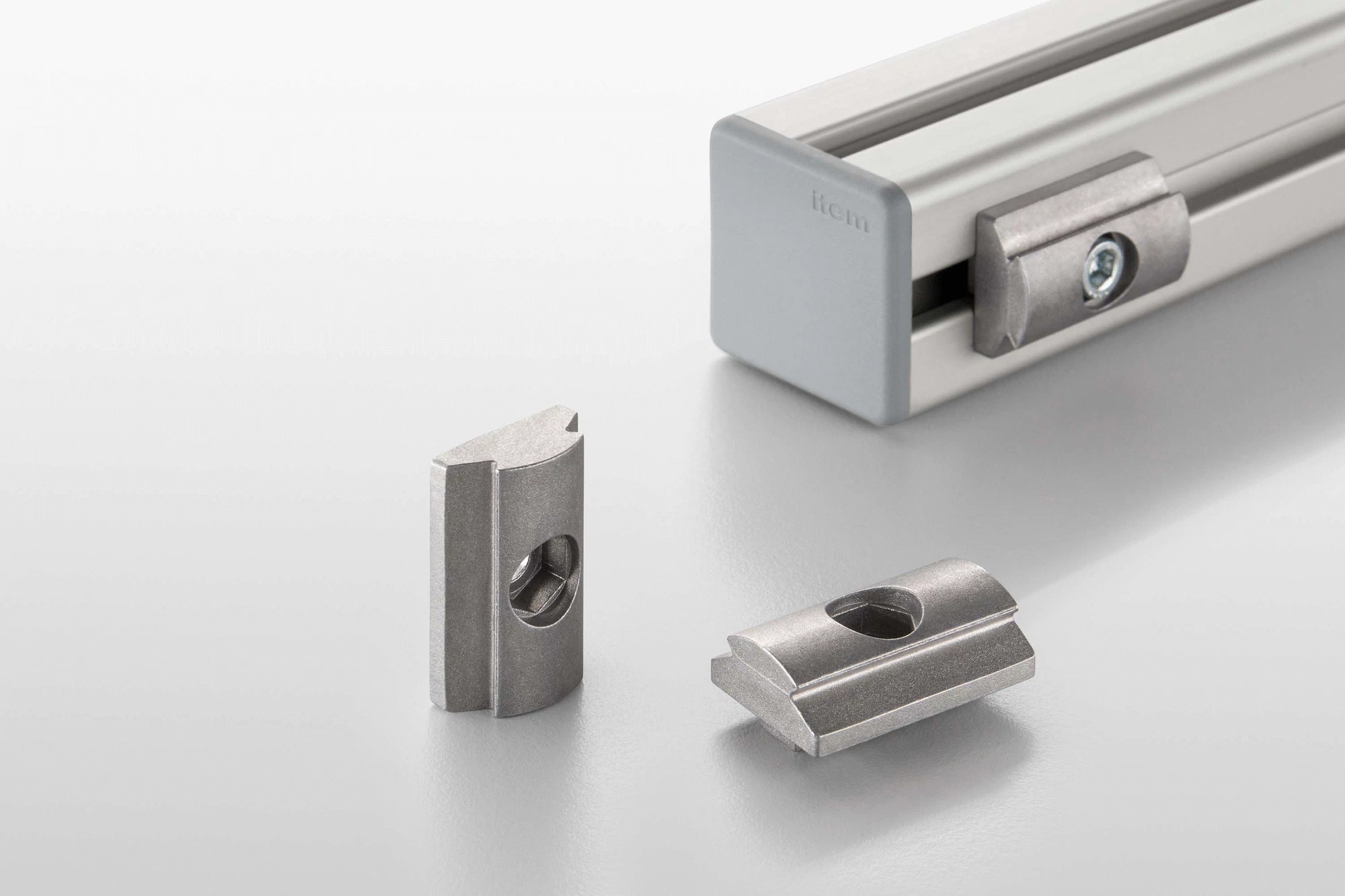

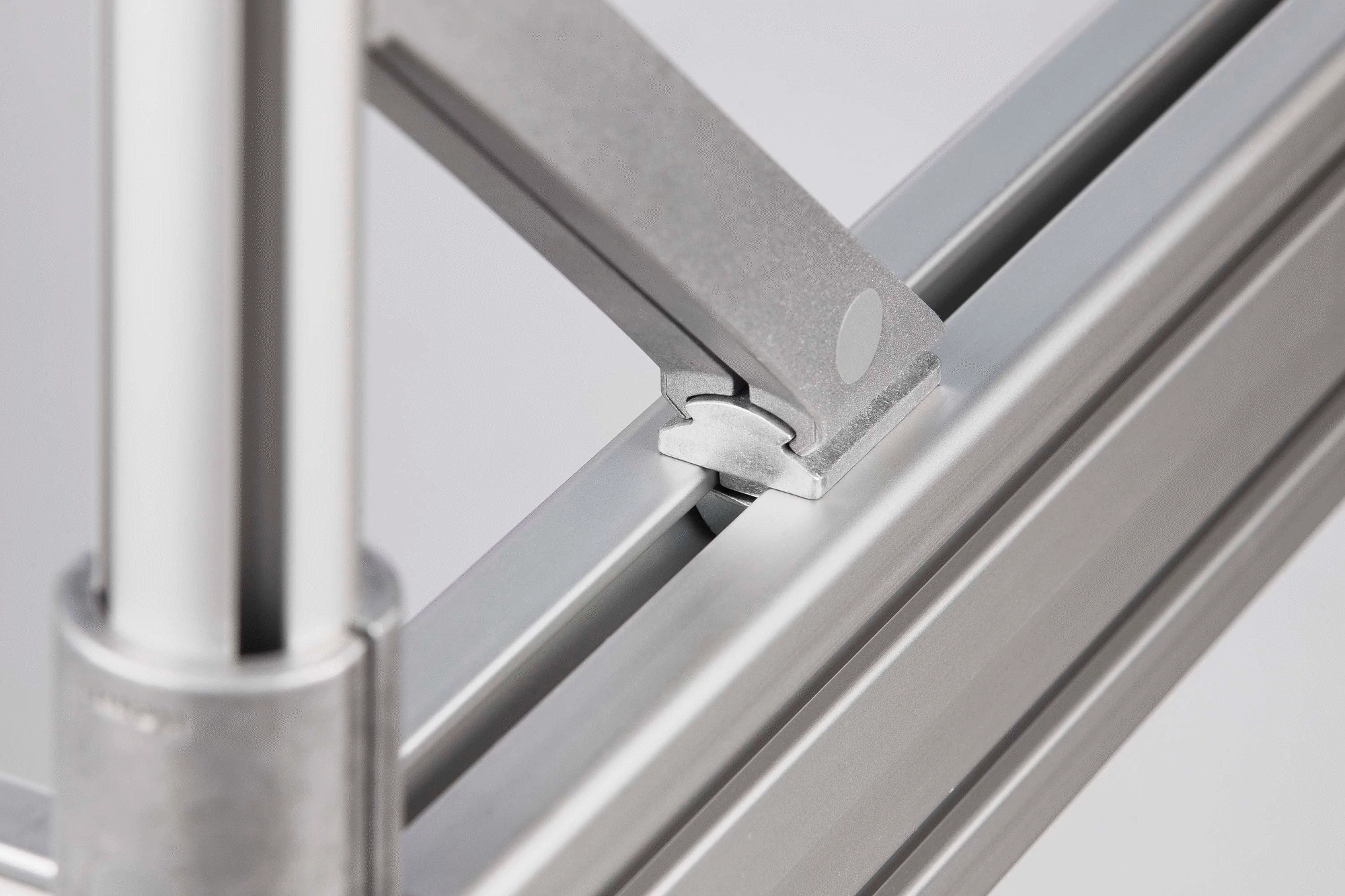

The D30 contour for Line 8: Flat Adapter 8 D30 gives a profile with a Line 8 groove the contour of a Profile Tube D30. A fastener from the Lean Production Building Kit System can then be attached to the adapter. Adapter 8 D30 can also be screwed to a panel element. Note: The longer Adapter 8 80 D30 can be subsequently moved when a Fastener D30 is connected to it centrally. It is also long enough to accommodate two Fasteners D30. More space for connections: Adapter 8 80 D30 can be used to connect two Fasteners D30 to one profile with a Line 8 groove. The Adapter has a flat underside, which means it can also be screwed to any panel. If only one Fastener D30 is fitted in the centre, Adapter 8 80 D30 provides an added advantage – the connection can be subsequently moved, because the screws are still accessible. This means attachments can be easily adjusted without having to detach the Fastener D30.
