| Set CAD-format | ||
|---|---|---|
| 3-Segment Tower Light | CADPDFRFQ |
Preview

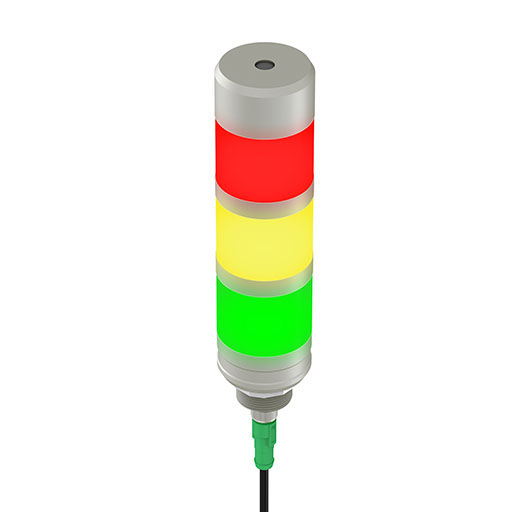

3-Segment Tower Light
1 3-Segment Tower Light 1 installation bracket 1 fastening set
Scope of Delivery
1 3-Segment Tower Light 1 installation bracket 1 fastening set
Properties
| Operating voltage | 24 |
|---|---|
| ESD-safe | No |
| Weight | m = 270 g |
| Ambient temperature (during operation) | 0 °C … +50 °C |
| Protection class | IP 65 |
| Power | P = 3.4 W |
| Delivery unit | 1 pce. |
| Current consumption | 140 mA |

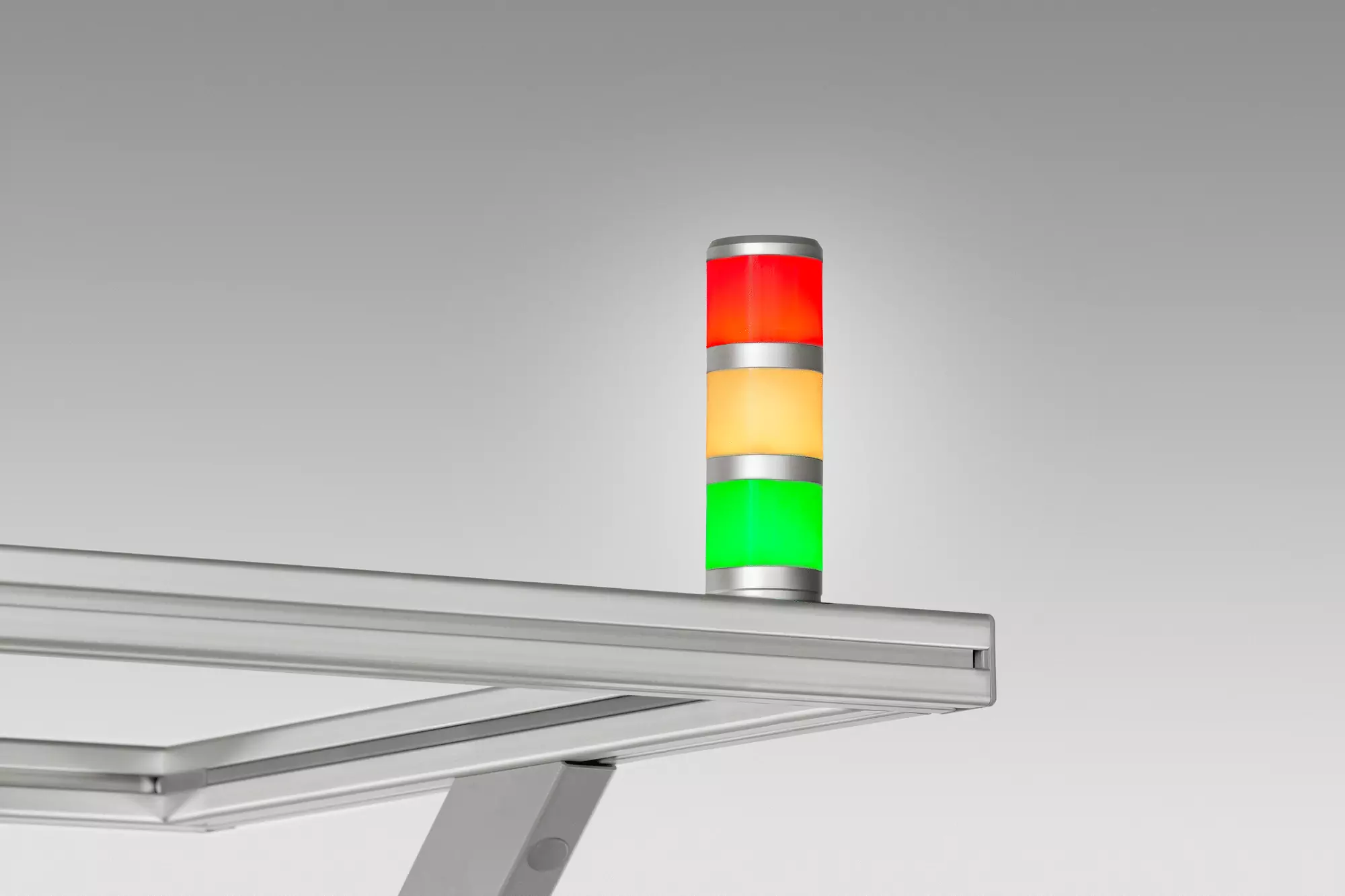

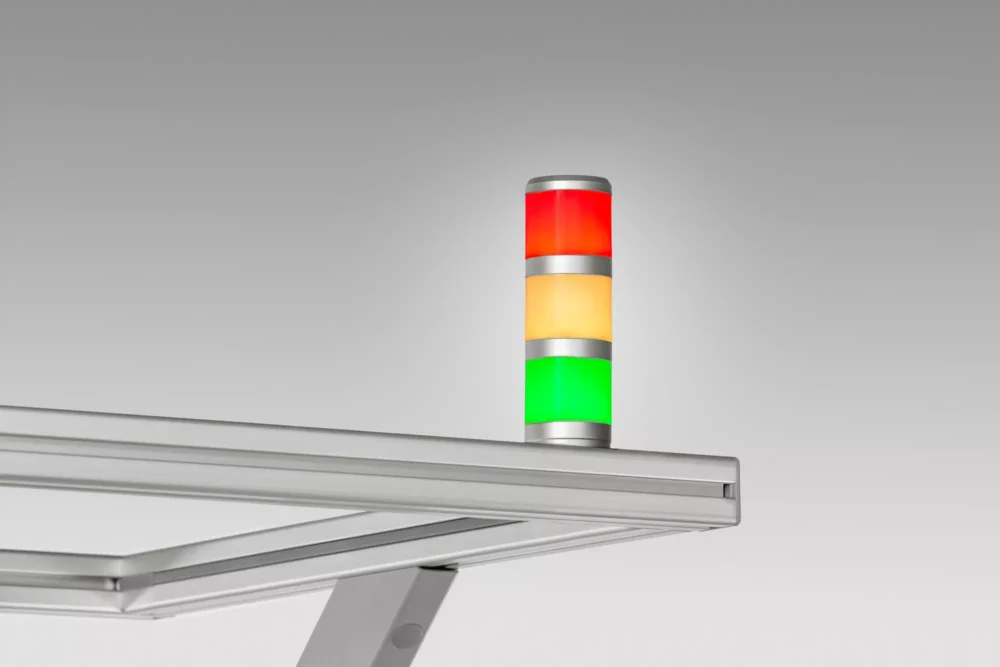

3-Segment RGB Tower Light features three segments with energy-saving LEDs that can be actuated separately. Thanks to the pre-set red, amber and green colour coding for the segments, this column light can be used directly as a clearly visible machine traffic light in industrial production.
