| Limit-Switch Holder D20 | CADPDFRFQ |
Preview
Limit-Switch Holder D20
Housing and anti-torsion block, PA-GF, black Cap Screw DIN 912-M6x28, St, bright zinc-plated
Scope of Delivery
Housing and anti-torsion block, PA-GF, black Cap Screw DIN 912-M6x28, St, bright zinc-plated
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 22 g |
| Delivery unit | 1 set |
For fastening Limit Switches to profiles or other components. When an anti-torsion block is not used, the Limit-Switch Holders can be secured to all profile Lines.

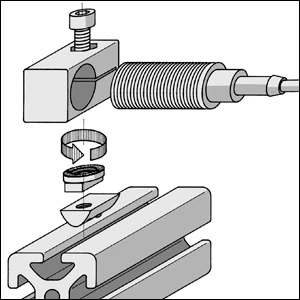

When the anti-torsion block is used, Limit-Switch Holders D18 and 20 can be attached in 10° increments relative to the Profile 8 groove. Without anti-torsion blocks, attachment is possible at any angle. For fastening Limit-Switch Holders D18 and D20 with Hexagon Socket Head Cap Screw DIN 912-M6 and T-Slot Nut of the corresponding Line. Screw M6x28 comes in a special length for fastening to Line 8 profiles.
