| Drive Set KLE 8 80×80 | CADPDFRFQ |
Preview

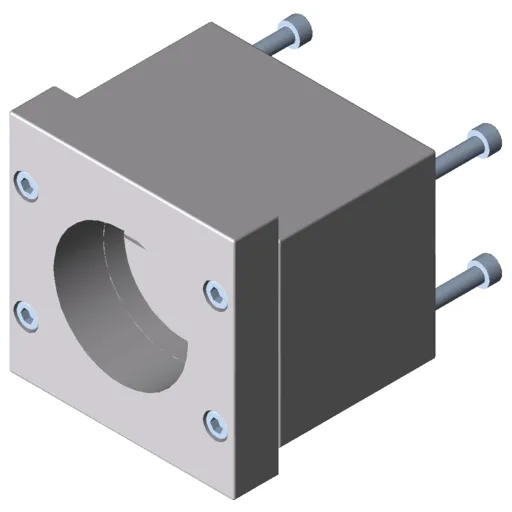

Drive Set KLE 8 80×80
Coupling housing KLE 8 80×80, Al Adapter plate KLE 8 80×80, Al D55/D8 coupling half, Al – reborable up to max. ⌀26 mm Coupling half D55 KLE 8 80×80, Al Coupling Insert D55, PU, green Centring piece D55 KLE 8 80×80, St 4 Hexagon Socket Head Cap Screws DIN 912-M6x25, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M6x85, St, bright zinc-plated Hexagon Socket Head Cap Screw DIN 912-M8x25, St, bright zinc-plated Tightening torque, coupling half D55 KLE 8 80×80, Al: 25 Nm Tightening torque, clamping hub screw: 9.6 Nm
Scope of Delivery
Coupling housing KLE 8 80x80, Al Adapter plate KLE 8 80x80, Al D55/D8 coupling half, Al – reborable up to max. ⌀26 mm Coupling half D55 KLE 8 80x80, Al Coupling Insert D55, PU, green Centring piece D55 KLE 8 80x80, St 4 Hexagon Socket Head Cap Screws DIN 912-M6x25, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M6x85, St, bright zinc-plated Hexagon Socket Head Cap Screw DIN 912-M8x25, St, bright zinc-plated Tightening torque, coupling half D55 KLE 8 80x80, Al: 25 Nm Tightening torque, clamping hub screw: 9.6 Nm
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 1.7 kg |
| Maximum permissible torque of coupling – drive side | Mmax = 50 Nm |
| Efficiency | . = 1 |
| Delivery unit | 1 set |
The relevant Drive Set is attached to the Drive Unit for driving a KLE. This Drive Set consists of a Coupling Half for connection to the pulley, a Coupling Half for connection to the motor shaft, a Coupling Housing with Adapter Plate for connecting the motor to the housing of the Drive Unit, a Centring Piece and fasteners. The prepared Coupling Half and the hub of the pulley are mechanically interlocked and bolted together. The elastic Coupling Insert transmits the drive torque free of play.
Transmission ratios of Drive Units KLE The effective radius of the pulleys is KLE 6 60x60: r W = 24.5 mm KLE 8 80x80: r W = 33.5 mm
The Drive Set is designed so that the interface may be easily machined to suit the motor being attached: - The universal Coupling Half bore is easily machined to accommodate the motor shafts. Parallel keyways or similar can be added if necessary. - The Adapter Plate can be machined to suit the motor plate. Consequently, virtually any motor can be used for driving a KLE. The Centring Piece supplied must always be fitted between the housing parts to prevent alignment errors during assembly. The permissible drive torques for the Drive Units and coupling must be taken into account when specifying the motor. To increase the rigidity of the drive connection, it may be necessary to use a profile construction to support the motor.
