Clamp-Profile Fastener 6 30×30 E
2 Cap Screws DIN 912-M6x16, St, bright zinc-plated
Scope of Delivery
2 Cap Screws DIN 912-M6x16, St, bright zinc-plated
Properties
| line 6 | line 6 |
|---|---|
| ESD-safe | No |
| Weight | m = 78 g |
| Delivery unit | 1 set |
| Material | Die-cast zinc, white aluminium similar to RAL 9006 |

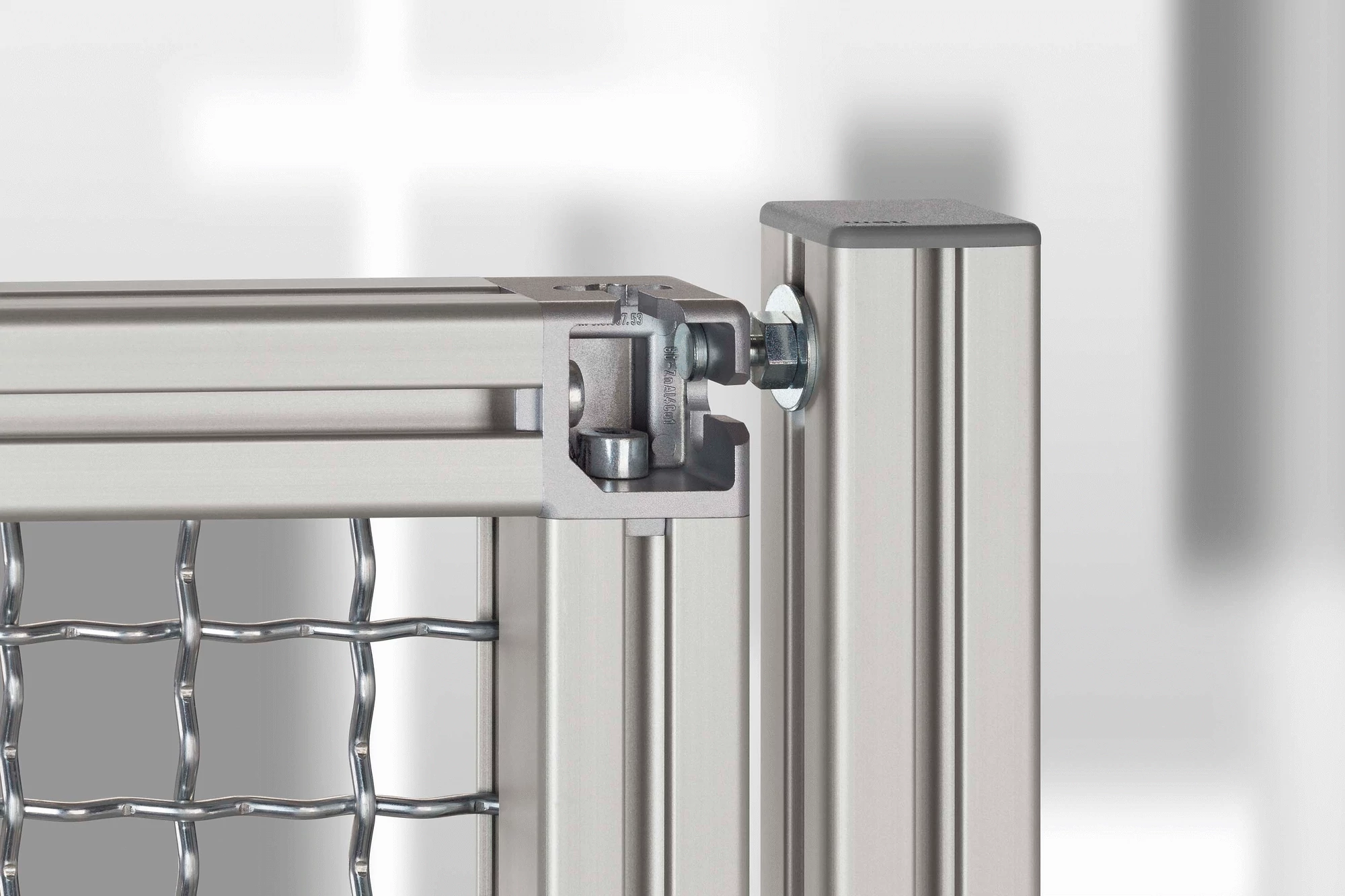

Clamp-Profile Fasteners are special fastening elements which, at the same time, allow easy hanging of protective-fence panels.
Suspended frame elements can also be locked if required by subsequently moving the lower Clamp- Profile Hanger.

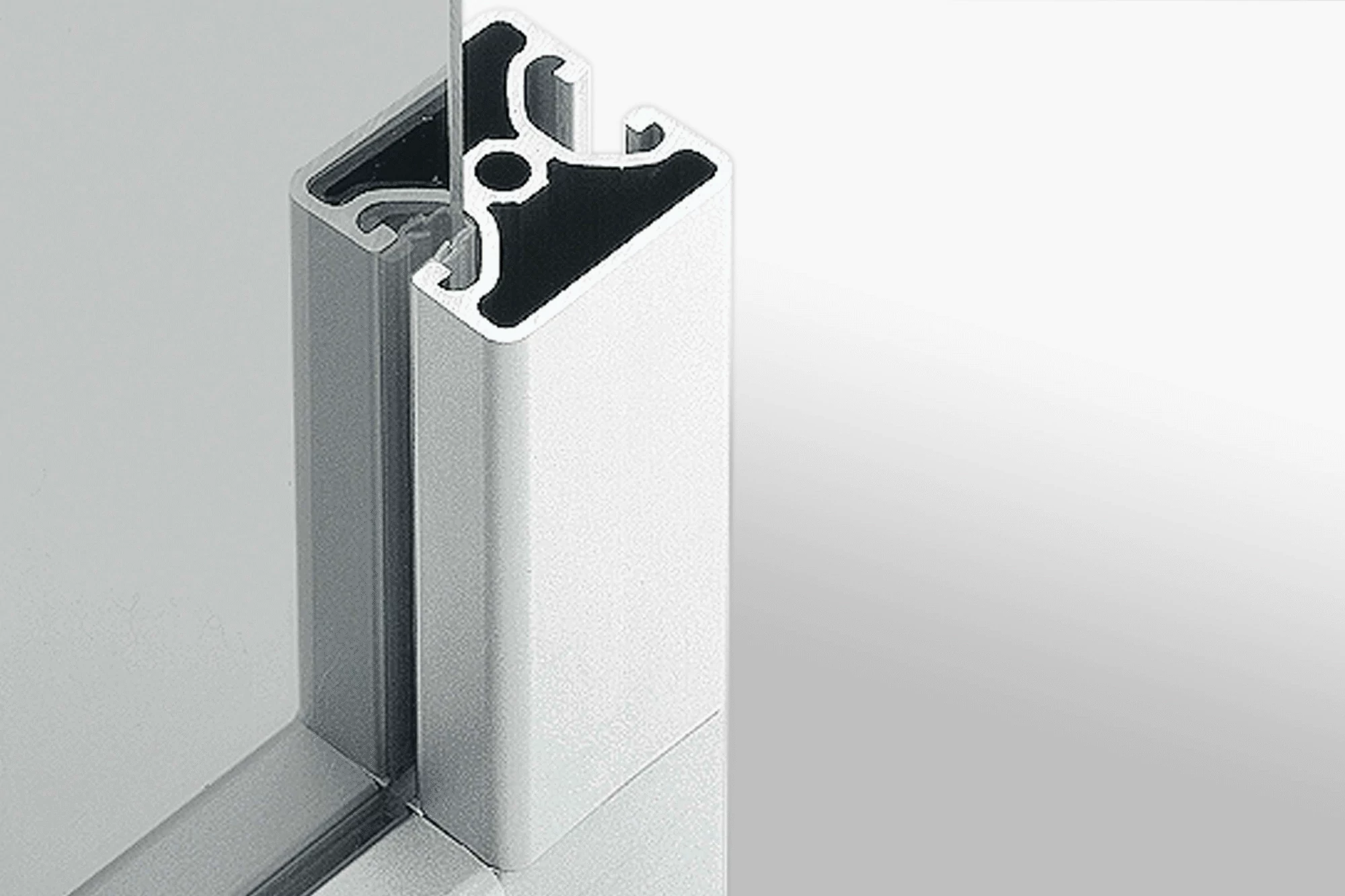

The Clamp-Profile Fastener can be combined with any desired Profiles 6 30x30 or 8 40x40 and also with the existing Clamp Profiles 6 30x30 or 8 40x40. The fact that the Clamp-Profile Fastener has a special cavity means that the panels to be fitted in the profile grooves do not need to be notched.
