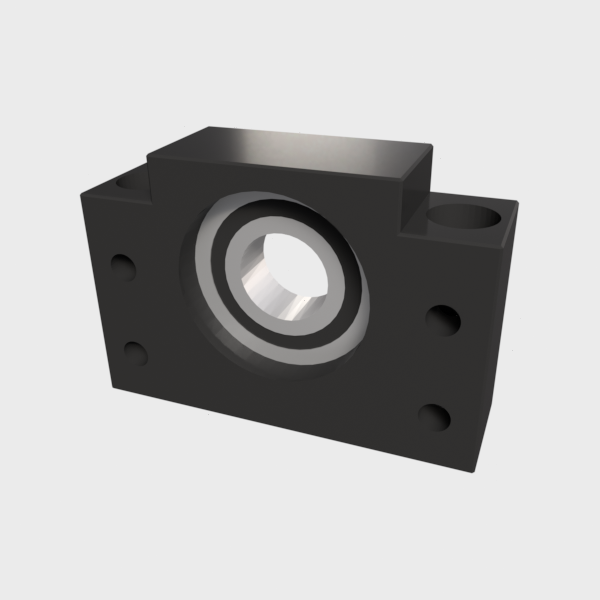

Bearing Unit BF-12

BF Support Unit, Floating for BS size 16

Art. no: BF-12-C7 Category: Tag:
Set CAD-format
Bearing Unit BF-12CADPDFRFQ

Preview


Part No. Part Name Qty
1 Housing 1
2 Bearing 1
3 Snap ring 1

Model No. E P d2 X Y Z
BF10 15 46 5.5 6.6 10.8 5
BF12 18 46 5.5 6.6 10.8 1.5
BF15 18 54 5.5 6.6 11 6.5
BF20 22 70 6.6 9 14 8.5
BF25 33 85 9 11 17 11
BF30 33 102 11 14 20 13
BF40 37 130 14 18 26 17.5

Part No. Part Name Qty
1 Housing 1
2 Bearing 1
3 Snap ring 1

Model No. Ball screw size Shaft Ød1 Bearing Snapring Weigth (Kg)
BF10 12 8 608ZZ S 08 0.3
BF12 16 10 6000ZZ S 10 0.35
BF15 20 15 6002ZZ S 15 0.4
BF20 25 20 6004ZZ S 20 0.77
BF25 32 25 6205ZZ S 25 1.45
BF30 40 30 6206ZZ S 30 1.95
BF40 50 40 6208ZZ S 40 3.3

Part No. Part Name Qty
1 Housing 1
2 Bearing 1
3 Snap ring 1

Model No. L B H b h B1 H1
+/-0.02 +/-0.02
BF10 20 60 39 30 22 34 32.5
BF12 20 60 43 30 25 34 32.5
BF15 20 70 48 35 28 40 38
BF20 26 88 60 44 34 52 50
BF25 30 106 80 53 48 64 70
BF30 32 128 89 64 51 76 78
BF40 37 160 110 80 60 100 90
