GLTH12

Yksikön suunnittelussa on tavoiteltu pientä kokoa kuitenkaan tinkimättä suorituskyvystä. Pieni ja kompakti koko mahdollistaa yksikön käytön hankalissa tai rajoitetussa tilassa.

Määritetyt tuotetiedot

Mitään ei ole vielä luotu

Sinun on määritettävä tuotteesi alla ennen tarjouksen pyytämistä
Tuotenro: GLTH12 Osasto: Avainsana tuotteelle

Allowable Overhang (mm) - Horizontal Installation Example load A - direction (mm) B -  direction (mm) C - direction (mm)
Ball Screw diameter ⌀14 Lead 6 60 kg 1900 165 268
Ball Screw diameter ⌀14 Lead 6 80 kg 1428 113 184
Ball Screw diameter ⌀14 Lead 6 110 kg 963 70 114
Ball Screw diameter ⌀14 Lead 12 60 kg 1538 346 483
Ball Screw diameter ⌀14 Lead 12 70 kg 1300 290 406
Ball Screw diameter ⌀14 Lead 12 88 kg 1010 222 311
Ball Screw diameter ⌀14 Lead 24 20kg 1285 753 693
Ball Screw diameter ⌀14  Lead 24 30 kg 835 487 450
Ball Screw diameter ⌀14 Lead 24 40 kg 613 355 328

Allowable Overhang (mm) - Wall Installation Example load A - direction (mm) B -  direction (mm) C - direction (mm)
Ball Screw diameter ⌀14 Lead 6 60 kg 268 165 1990
Ball Screw diameter ⌀14 Lead 6 80 kg 184 113 1428
Ball Screw diameter ⌀14 Lead 6 110 kg 114 70 963
Ball Screw diameter ⌀14 Lead 12 60 kg 483 346 1538
Ball Screw diameter ⌀14 Lead 12 70 kg 406 290 1300
Ball Screw diameter ⌀14 Lead 12 88 kg 311 222 1010
Ball Screw diameter ⌀14 Lead 24 20kg 693 753 1285
Ball Screw diameter ⌀14  Lead 24 30 kg 450 487 835
Ball Screw diameter ⌀14 Lead 24 40 kg 328 355 613

Allowable Overhang (mm) - Vertical Installation Example load A - direction (mm) C - direction (mm)
Ball Screw diameter ⌀14 Lead 6 20 kg 1250 1250
Ball Screw diameter ⌀14 Lead 6  29 kg 870 870
Ball Screw diameter ⌀14 Lead 12 10 kg 2250 2250
Ball Screw diameter ⌀14 Lead 12  15 kg 1500 1500
Ball Screw diameter ⌀14 Lead 24 7 kg 1840 1840
Ball Screw diameter ⌀14 Lead 24 9 kg 1430 1430

Static Loading Moment (N.m)
MY 606
MP 606
MR 1168

Maximum Performance
Medium Speed 1440 mm/s
Medium Stroke 1250 mm
Max Payload 110 kg

Specification
Repeatability mm ±0.005 ±0.005 ±0.005
Lead mm 6 12 24
Maximum Rotating Speed rmp 3600 3600 3600
Maximum Linear Speed mm/s 360 720 1440
Maximum Payload - Horizontal kg 110 88 40
Maximum Payload - Vertical kg 29 15 9
Rated Thrust N 1156 578 289
Stroke (Increments) mm 50-1250mm/50 (50 increments) 50-1250mm/50 (50 increments) 50-1250mm/50 (50 increments)
Maximum Acceleration G 0.37 0.73 1.47
Ball Screw - Basic dynamic load rating ca N 7733 5855 3007
Ball Screw - Basic static load rating coa N 14200 10401 5414
Linear Guide - Dynamic horizontal (100km) N 51128 51128 51128
Linear Guide - Static horizontal N 84518 84518 84518
Fixed Bearing - Basic dynamic load rating cr N 2600 2600 2600
Fixed Bearing - Static load rating cor N 4750 4750 4750
Ball Screw Ø mm C7Ø 14 C7Ø 14 C7Ø 14
Kytkentä mm 10x14 10x14 10x14

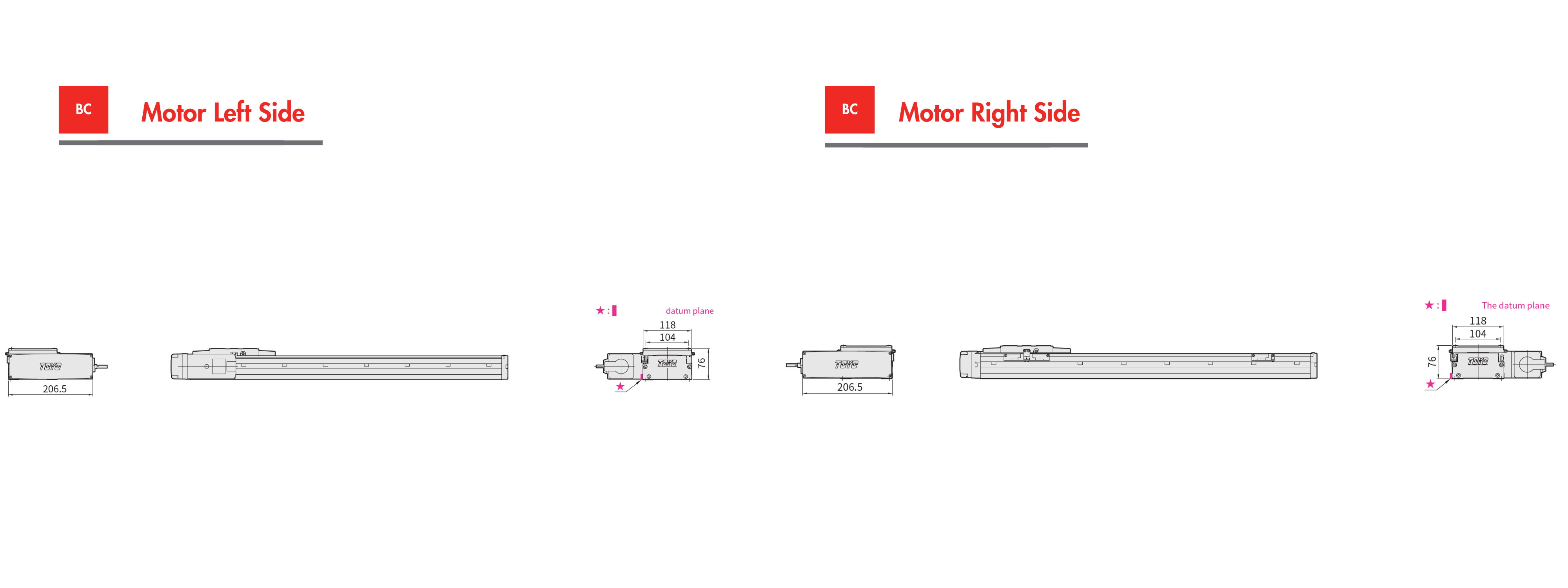

Specification
Stroke (mm) 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250
Limit Stroke (±1) 58.5 108.5 158.5 208.5 258.5 308.5 358.5 408.5 458.5 508.5 558.5 608.5 658.5 708.5 758.5 808.5 858.5 908.5 958.5 1008.5.5 1058.5 1108.5 1158.5 1208.5 1258.8
L - BC (mm) 344 394 444 494 544 594 644 694 744 794 844 894 944 994 1044 1094 1144 1194 1244 1294 1344 1394 1444 1494 1544
L - BM (mm) 330.5 380.5 430.5 480.5 530.5 580.5 630.5 680.5 730.5 780.5 830.5 880.5 930.5 980.5 1030.5 1080.5 1130.5 1180.5 1230.5 1280.5 1330.5 1380.5 1430.5 1480.5 1530.5
A (mm) 50 100 50 100 50 100 50 100 50 100 50 100 50 100 50 100 50 100 50 100 50 100 50 100 50
M (mm) 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13
N (mm) 6 8 8 10 10 12 12 14 14 16 16 18 18 20 20 22 22 24 24 26 26 28 28 30 30
Maximum Linear Speed - Lead 6 (mm/s) 360 360 360 360 360 360 360 360 360 360 360 360 350 310 270 240 210 190 170 160 140 130 120 110 100
Maximum Linear Speed - Lead 12 (mm/s) 720 720 720 720 720 720 720 720 720 720 720 720 700 620 540 480 420 380 340 320 280 260 240 220 200
Maximum Linear Speed - Lead 24 (mm/s) 1440 1440 1440 1440 1440 1440 1440 1440 1440 1440 1440 1440 1400 1240 1080 960 840 760 680 640 560 520 448 440 400

Total Weight of Linear Module incl. Motor Package
Motor Package - BC (kg) 5.05 5.4 5.75 6.1 6.45 6.8 7.15 7.5 7.85 8.2 8.55 8.9 9.25 9.6 9.95 10.3 1065 11 11.35 11.7 12.05 12.4 12.75 13.1 13.45
Motor Package - BM (kg) 5.21 5.56 5.91 6.26 6.61 6.96 7.31 7.66 8.01 8.36 8.71 9.06 9.41 9.76 10.11 10.46 10.81 11.16 11.51 11.86 12.21 12.56 12.91 13.26 13.61

Specification
Stroke (mm) 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250
Limit Stroke (±1) 58.5 108.5 158.5 208.5 258.5 308.5 358.5 408.5 458.5 508.5 558.5 608.5 658.5 708.5 758.5 808.5 858.5 908.5 958.5 1008.5.5 1058.5 1108.5 1158.5 1208.5 1258.8
L  (mm) 323.5 373.5.5 423.5 473.5 523.5 573.5 623.5 673.5 723.5 773.5 823.5 873.5 923.5 973.5 1023.5 1073.5 1123.5 1173.5 1223.5 1273.5 1323.5 1373.5 1423.5 1473.5 1523.5
A (mm) 100 50 100 50 100 50 100 50 100 50 100 50 100 50 100 50 100 50 100 50 100 50 100 50 100
M (mm) 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13
N (mm) 6 8 8 10 10 12 12 14 14 16 16 18 18 20 20 22 22 24 24 26 26 28 28 30 30
Maximum Linear Speed - Lead 6 (mm) 360 360 360 360 360 360 360 360 360 360 360 360 350 310 270 240 210 190 170 160 140 130 120 110 100
Maximum Linear Speed - Lead 12 (mm/s) 720 720 720 720 720 720 720 720 720 720 720 720 700 620 540 480 420 380 340 320 280 260 240 220 200
Maximum Linear Speed - Lead 24 (mm/s) 1440 1440 1440 1440 1440 1440 1440 1440 1440 1440 1440 1440 1400 1240 1080 960 840 760 680 640 560 520 448 440 400

Total Weight of Linear Module incl. Motor Package
KG 5.25 5.6 5.95 6.3 6.65 7 7.35 7.7 8.05 8.4 8.75 9.1 9.45 9.8 10.15 10.5 10.85 11.2 11.55 11.9 12.25 12.6 12.95 13.3 13.65
