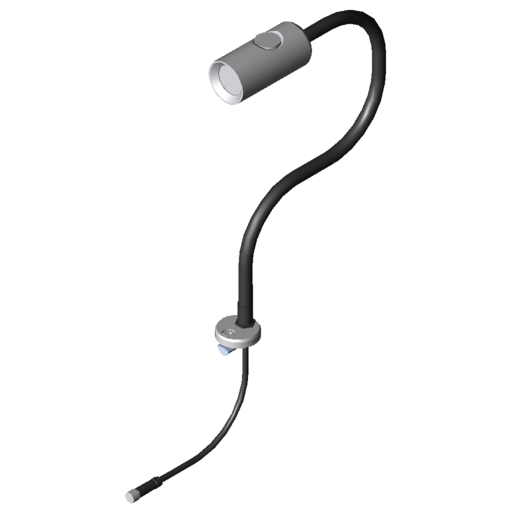

Spotlight 6W LED 35° with Flexible Tube

High-performance 6W LED 35° light beam Dimmer switch Aluminium housing Flexible tube, fastening elements M8 plug-in connector Toughened glass protective pane Protection: IP65, EN 60529 Protection class III Rated voltage: 24 V DC

Tuotenro: 0.0.681.61 Osastot: , Avainsana tuotteelle
Set CAD-format
Spotlight 6W LED 35° with Flexible TubeCADPDFRFQ

Preview

Scope of Delivery

High-performance 6W LED 35° light beam Dimmer switch Aluminium housing Flexible tube, fastening elements M8 plug-in connector Toughened glass protective pane Protection: IP65, EN 60529 Protection class III Rated voltage: 24 V DC

Properties

LineWork Bench System
line 8line 8
ESD-safeNo
Weightm = 0.5 kg
Delivery unit1 set

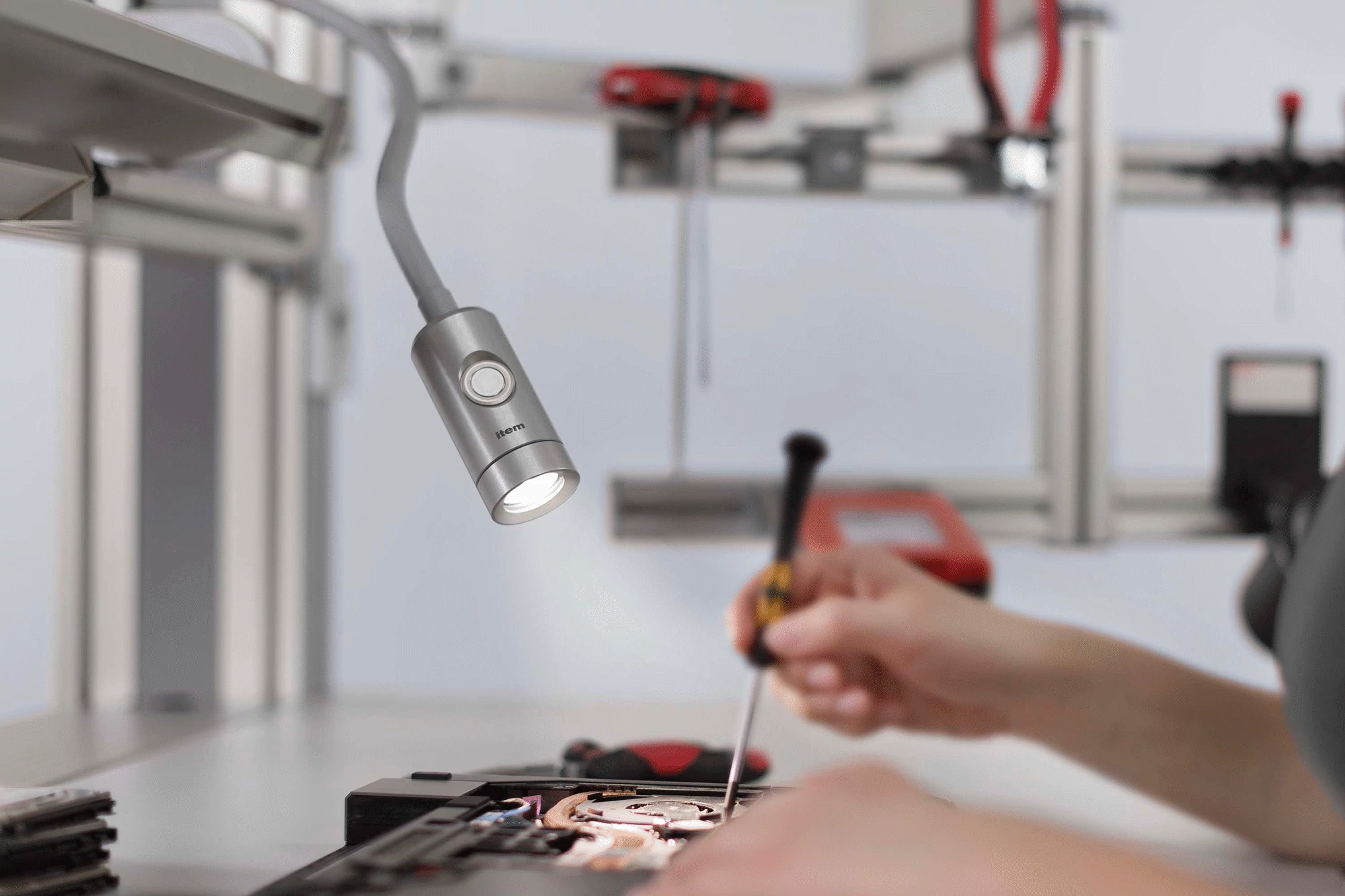

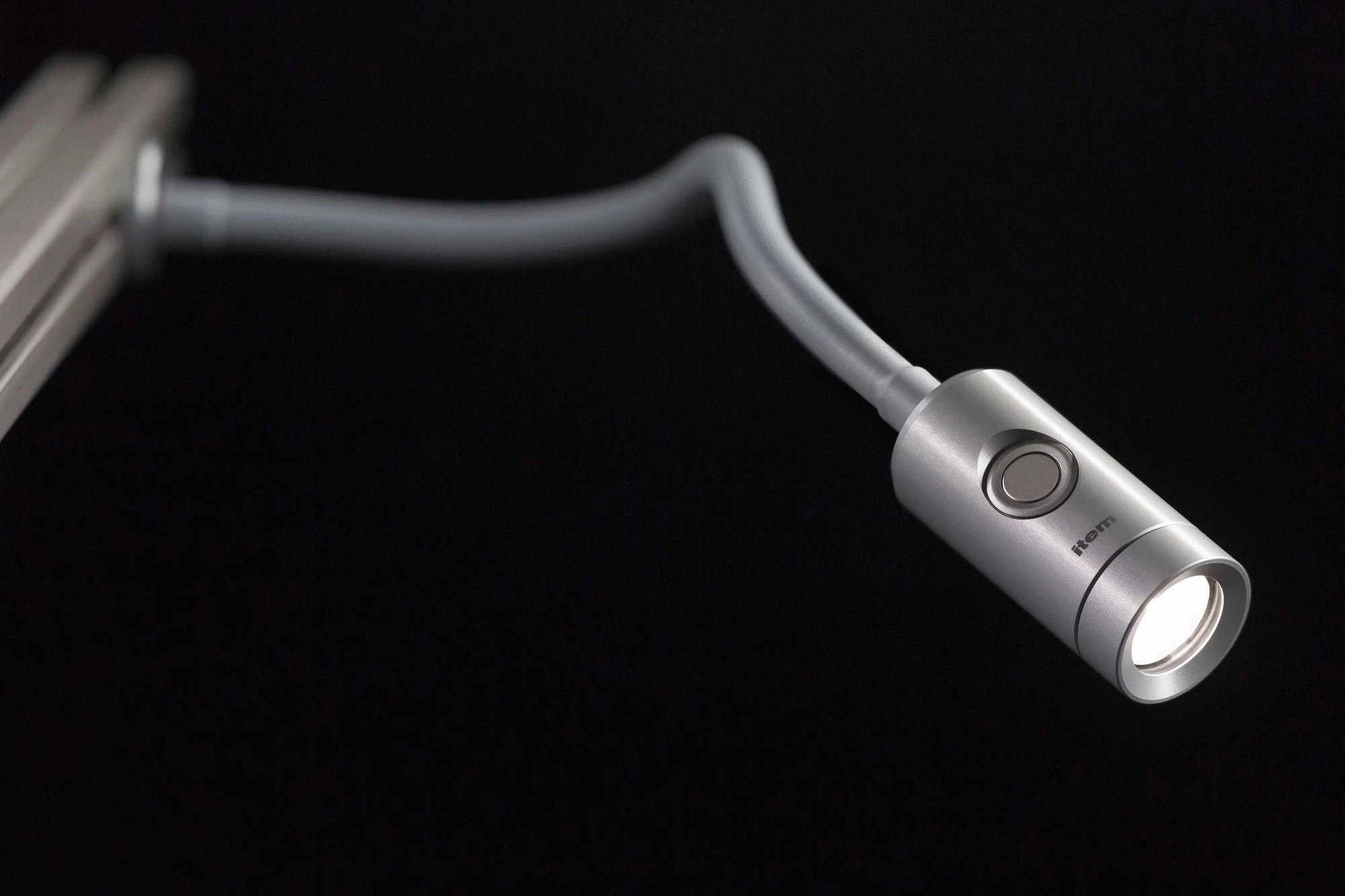

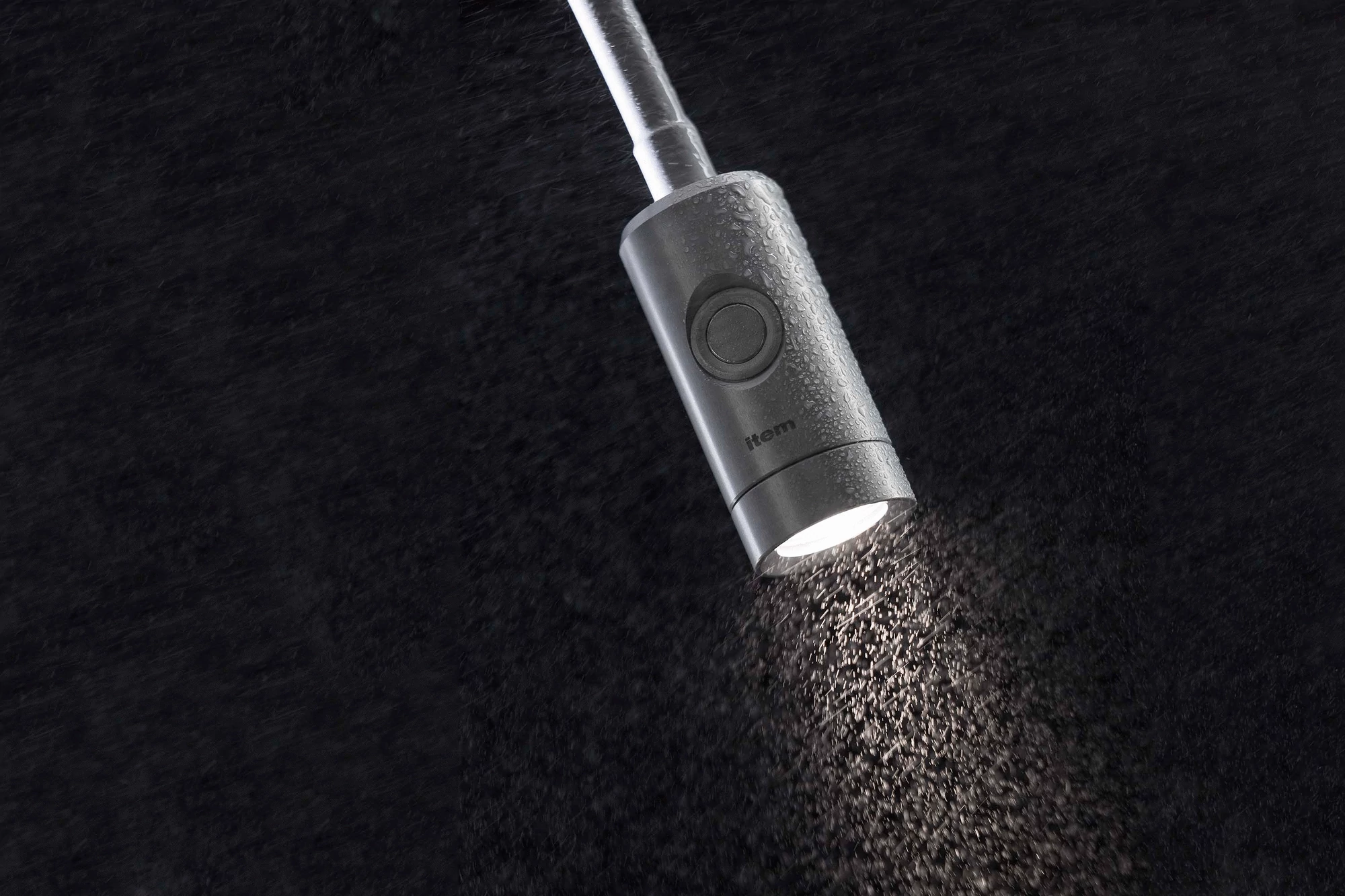

When every detail counts. Thanks to their posable arm, which moves in all directions, Spotlights 6W LED with Flexible Tube can be lined up in seconds. This makes them especially versatile, enabling users to light up exactly the area they need to. With a lighting strength of 20,000 Lux at a distance of 500 mm, the energy-efficient Spotlights are very bright. They can be dimmed via a button on the casing, with the setting retained when switching off and on. They are also compatible with a wireless remote dimming system. Two models are available: A lighting angle of 10° provides focussed lighting, while 35° lights up a wider area. The colour temperature of the lights is 4000 Kelvin (neutral white) and the colour rendering index is >0.85. Spotlights 6W LED can be used with item power packs, cables and dimmers. The casing is protected to IP 65 and thus well equipped for use in wet or dusty environments. With a service life of 50,000 operating hours and outstanding efficiency, the Spotlights help to improve sustainability and deliver energy savings.
Bei der Verlegung von stromführenden Leitungen entlang von Aluminiumprofilen können dort geringe, ungefährliche Spannungen durch induktive Kopplung entstehen. Zur Vermeidung wird empfohlen, die Konstruktion mit der Schutzerde zu verbinden. Gut geeignet ist der Einsatz der Steckdosenleiste 5-fach, mit System-Steckanschluss (0.0.627.44) bzw. der Medienleiste Multi (0.0.631.56) in Kombination mit der Anschlussleitung Buchse-Schukostecker mit Erdung (0.0.677.54).
