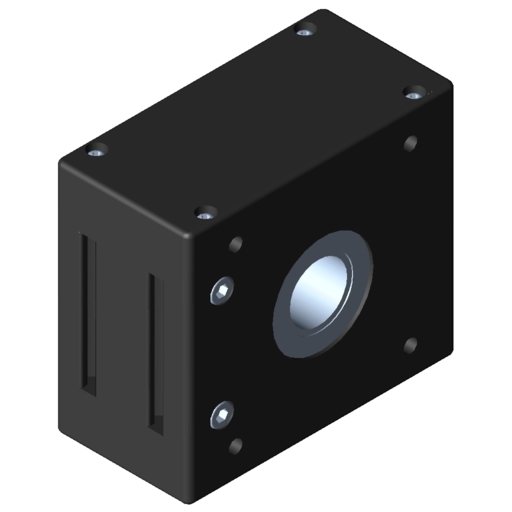

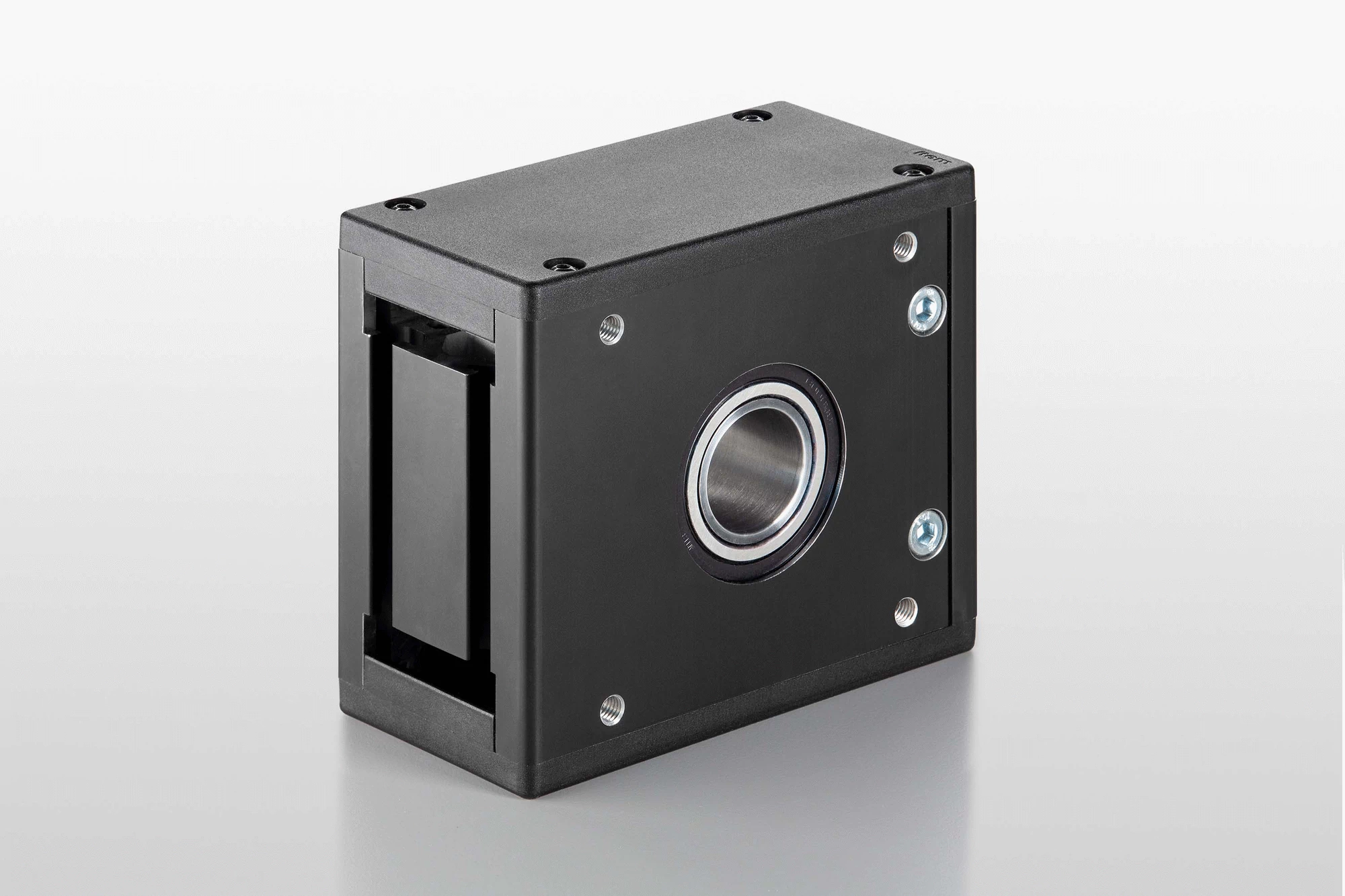

Timing-Belt Reverse Unit 8 80 R50 II with Bore D34
Timing-Belt Reverse Unit, Al, black Ball-bearing timing pulley with ⌀ 34 H7 bore Hub length: 75 mm One revolution equivalent to 280 mm Effective radius r e = 44.6 mm Friction torque at 1‰ preload on timing belt: T F = 1.05 Nm Max. load: T D = 92 Nm Belt length inside Reverse Unit in case of 90° reversal: 220 mm 180° reversal: 300 mm Pitch p = 10 mm Number of teeth n = 28
Tuotenro: 0.0.665.45
Osastot: Timing-belt reverse units, Timing-belt reverse units
Avainsana tuotteelle Static
Scope of Delivery
Timing-Belt Reverse Unit, Al, black Ball-bearing timing pulley with ⌀ 34 H7 bore Hub length: 75 mm One revolution equivalent to 280 mm Effective radius r e = 44.6 mm Friction torque at 1‰ preload on timing belt: T F = 1.05 Nm Max. load: T D = 92 Nm Belt length inside Reverse Unit in case of 90° reversal: 220 mm 180° reversal: 300 mm Pitch p = 10 mm Number of teeth n = 28
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 3.7 kg |
| Delivery unit | 1 pce. |

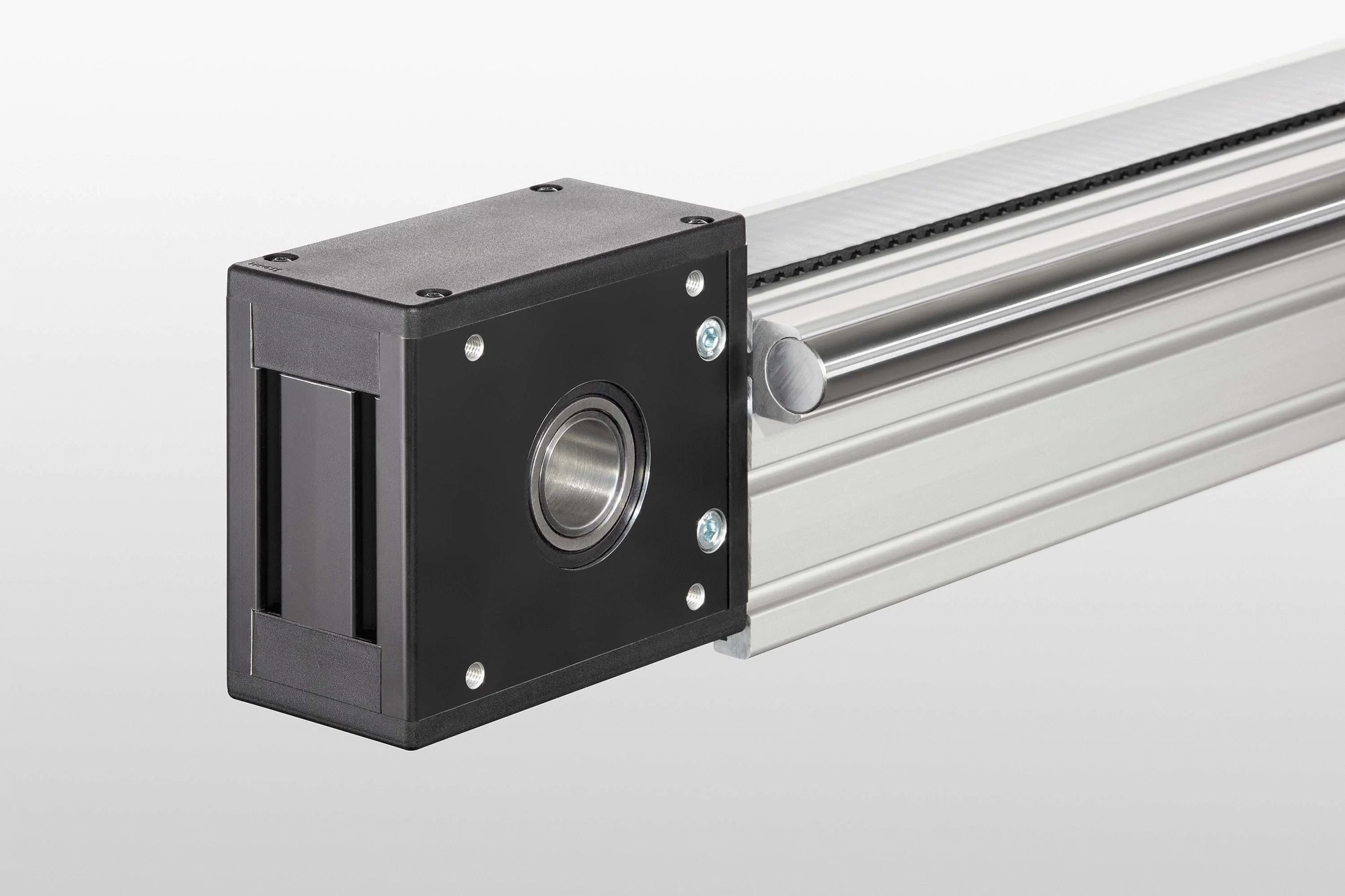

Creating customised Linear Units has never been easier! item Timing-Belt Reverse Units provide a reliable basis for linear axes using a timing-belt drive. The models with a D12, D15 or D34 bore are designed to support a backlash-free connection to item Motors and Gearboxes without requiring hub machining. The expanding hub couplings of Drive Sets ZU and Drive Set 8 D40/D15 can create a friction-based connection between all drive components. Everything fits together seamlessly without the need for machining. The item Automation System offers a wide selection of Gearboxes and servomotors with absolute encoders or resolvers, which helps reduce the complexity of solutions and create dependable Linear Units with a fast timing-belt drive. The universal Drive Sets from item are used to connect virtually any motor. Their coupling bore can be enlarged to match the drive shaft. The item Timing-Belt Reverse Units have been optimised for different profile and timing belt widths. The timing belt can be redirected by 90° or 180° inside the casing. The durable timing pulley, the robust casing and the use of T-Slot Nuts for installation ensure things run smoothly even when under load.
