Synchroniser Shaft Cover Set KLE 5 40×40

2 synchroniser adapter plates KLE 5 40×40, Al, natural 4 Hexagon Socket Head Cap Screws DIN 912 M4x45, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912 M4x50, St, bright zinc-plated 8 taper grooved dowel pins ISO 8745-5×18, St

Tuotenro: 0.0.717.72 Osasto: Avainsana tuotteelle
Set CAD-format
Synchroniser Shaft Cover Set KLE 5 40×40CADPDFRFQ

Preview

Scope of Delivery

2 synchroniser adapter plates KLE 5 40x40, Al, natural 4 Hexagon Socket Head Cap Screws DIN 912 M4x45, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912 M4x50, St, bright zinc-plated 8 taper grooved dowel pins ISO 8745-5x18, St

Properties

line 5line 5
ESD-safeNo
Weightm = 145 g
Delivery unit1 set

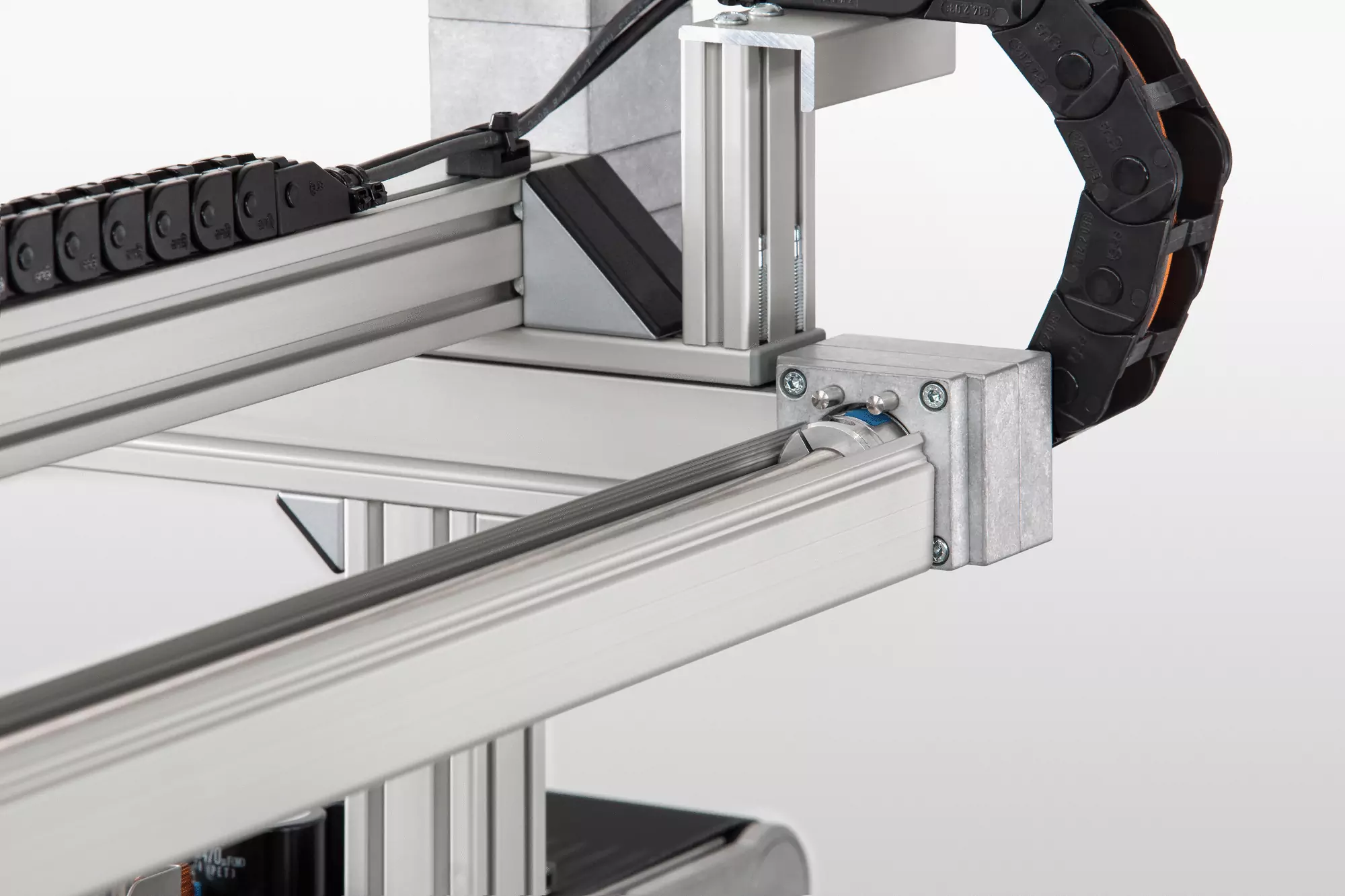

Synchroniser Shaft Cover Set KLE 5 40x40 is a fastening for a protective housing made from Conduit Profiles U to safely cover a synchroniser shaft between two Linear Units KLE 5 40x40 LR (0.0.710.86). The cover set contains the adapter plates and the fastening materials required. Conduit Profile U 40x40 E (7.0.001.44) and Lid Profile D40 E (7.0.001.46) must be ordered separately.
The adapter plates included in the Synchroniser Shaft Cover Set secure the conduit elements between the timing-belt drives of the two Linear Units KLE 5 40x40 LR. Calculating the length: a = Distance between Linear Units c = Length of conduit elements Use a cable conduit consisting of: Conduit Profile U 40x40 E (7.0.001.44) Lid Profile D40 E (7.0.001.46)
