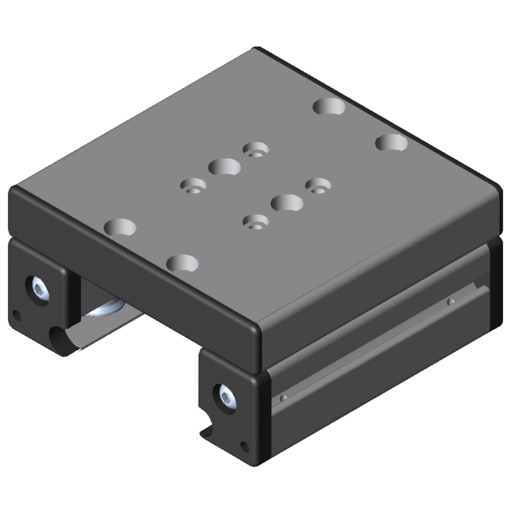

Slide LRF 8 D10 160×160

Slide LRF 8 D10 160×160, preassembled 2 End Cap and Lubricating Systems 8 D10, black 2 Caps LRF 8 D10 160×28, PA-GF, black 2 positioning collars, St Installation guide

Tuotenro: 0.0.658.37 Osastot: , Avainsana tuotteelle
Set CAD-format
Slide LRF 8 D10 160×160CADPDFRFQ

Preview

Scope of Delivery

1 Slide LRF 8 D10 160x160, preassembled 2 End Cap and Lubricating Systems 8 D10, black 2 Caps LRF 8 D10 160x28, PA-GF, black 2 positioning collars, St Installation guide

Properties

line 8line 8
ESD-safeNo
Weightm = 2.55 kg
Delivery unit1 set

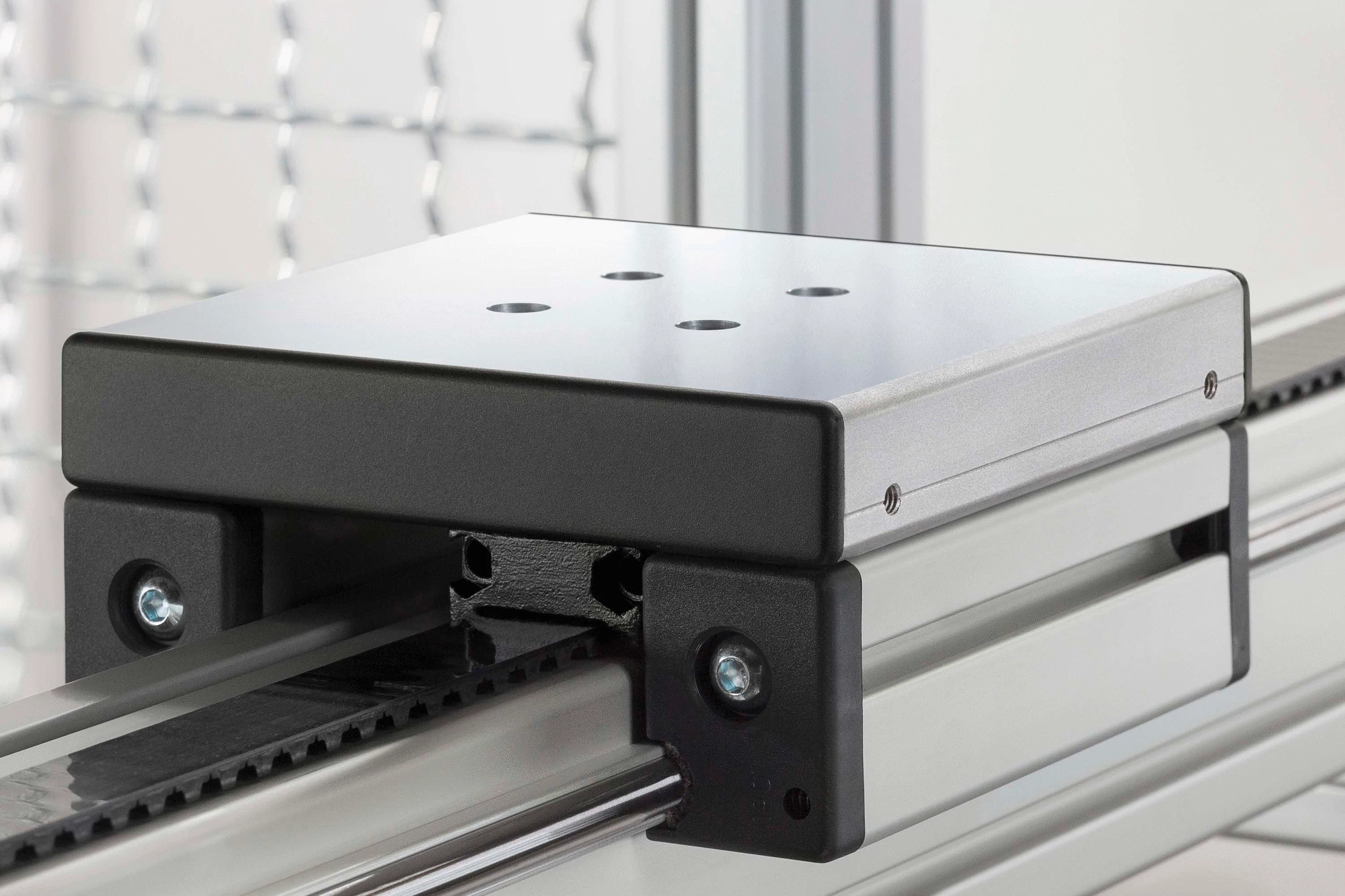

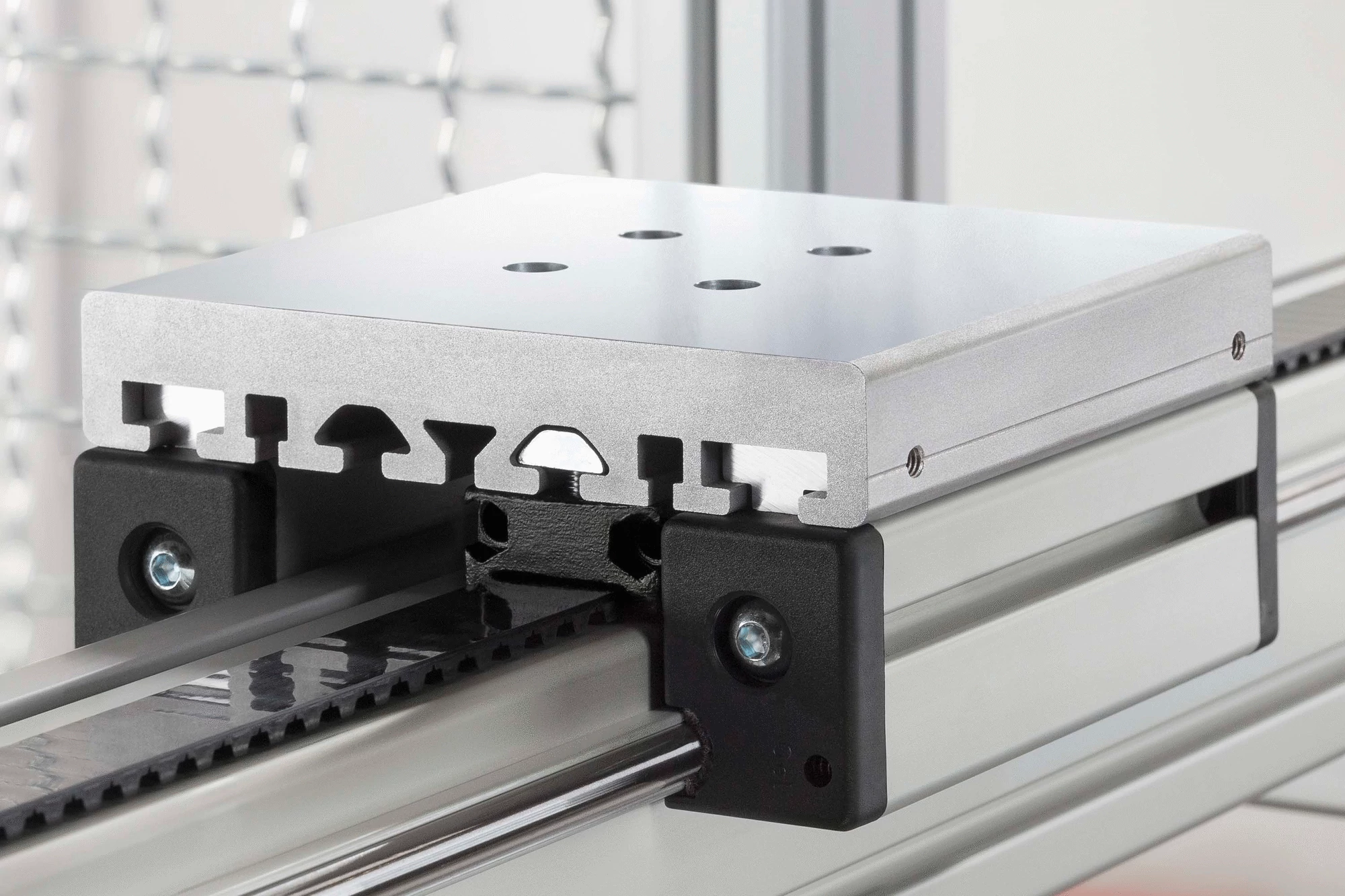

Everything runs smoothly with this solution. Slide LRF 8 is a practical complete system for roller guides that run on Shafts D10 or D14, which are fastened to a Line 8 groove using Shaft-Clamp Profiles. It is delivered ready for installation and comprises a Carriage Profile with a flat surface and two quiet-running Double-Bearing Units with End Cap and Lubricating Systems. Simply slot it onto the shafts, adjust the rollers from the side, tighten everything up and that’s it – your torsion-resistant linear slide is good to go. Slide LRF 8 is available for linear slides in a width of 40 and 80 mm. Fitting functional elements is also incredibly easy. The upper surface of the slide has been milled flat and features four openings for positioning collars. As a result, any application can be fastened to the Slide with outstanding precision, which makes maintenance work easier and reduces setup times. Slide LRF can also be combined with a Timing-Belt Drive or chain drive to form automated solutions. Slide Sets LRF and Slide Profiles LRF can also be ordered separately to build slides in customised lengths.
LRF 8 D10
Load specifications Run length under max. load: 10000 km Max. speed: 10 m/s
