| Ball-Bearing Guide Bush Unit 8 D25 | CADPDFRFQ |
Preview

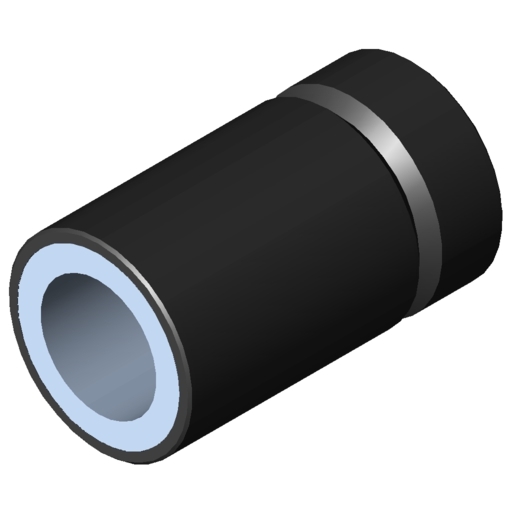

Ball-Bearing Guide Bush Unit 8 D25
Sleeve, St, black Ball Bush D25, sealed both ends, maintenance-free Grub screw DIN 914-M8x22, St, bright zinc-plated
Tuotenro: 0.0.387.12
Osastot: Ball-bearing guide bush units, Ball-bearing guide bush units
Avainsana tuotteelle Static
Scope of Delivery
Sleeve, St, black Ball Bush D25, sealed both ends, maintenance-free Grub screw DIN 914-M8x22, St, bright zinc-plated
Properties
| line 8 | line 8 |
|---|---|
| Diameter | d = 25 mm |
| ESD-safe | No |
| Velocity | vmax. = 2 m/s |
| Weight | m = 300 g |
| Delivery unit | 1 pce. |
| Load Factor, dynamic | C = 1990 N |
| Load Factor, static | C0 = 1670 N |
Ball-Bearing Guide Bush Units consist of sleeves accommodating the Ball Bushes. They form the guide elements for a ball-bearing guide bush.

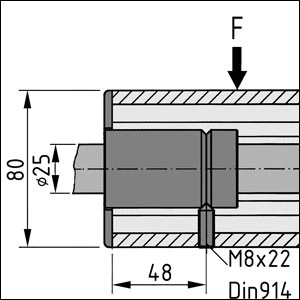

The Ball-Bearing Guide Bush Units are fixed in the cavities of Profiles 8 using grub screw DIN 914-M8. The direction of the load for the Ball-Bearing Guide Bush Unit should be selected such that the operating load presses the Ball-Bearing Guide Bush Unit into the prism of the profile cavity and not against the grub screw.
