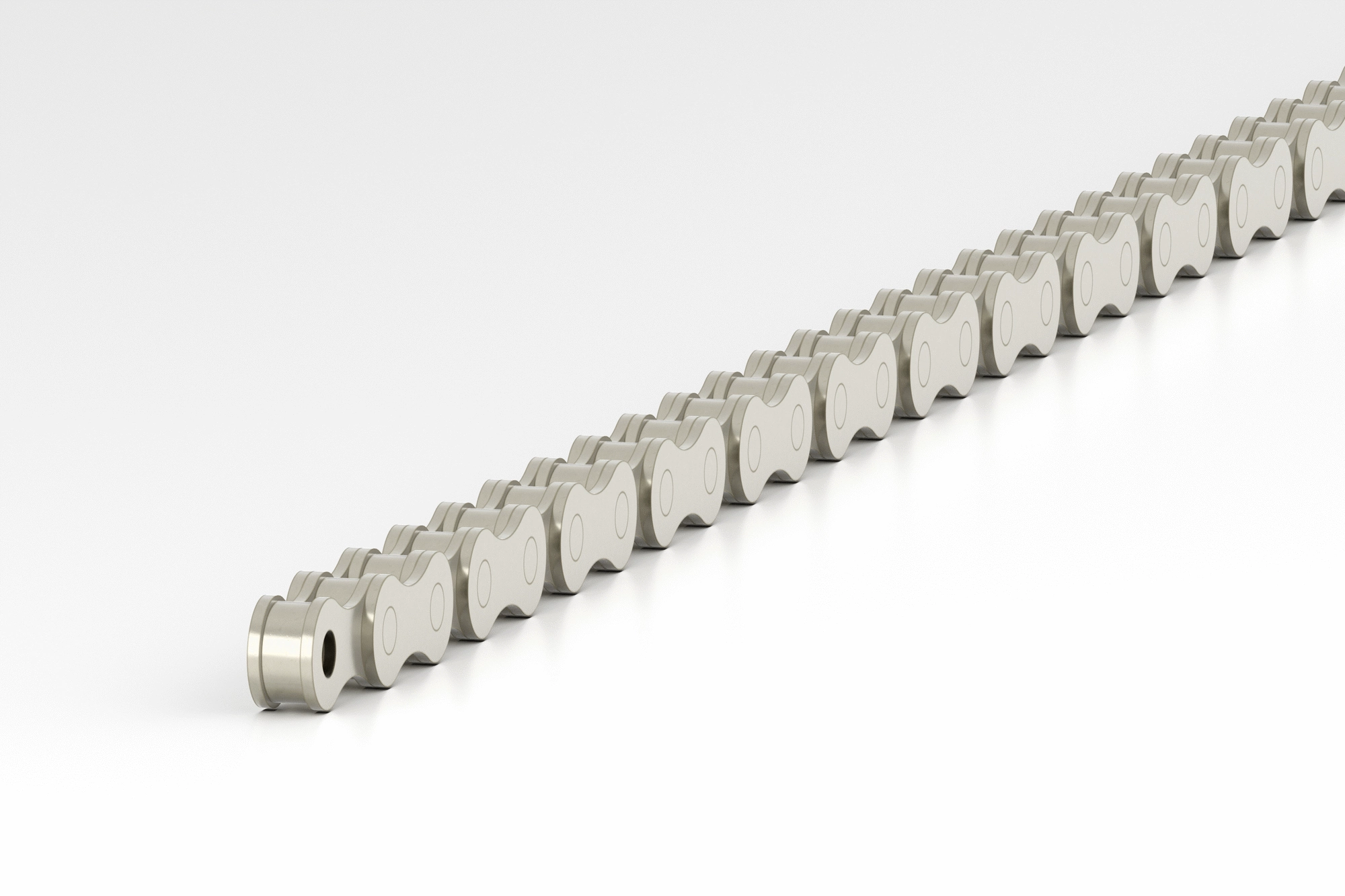

Chain 1/2″
Pitch p = 12.7 mm corresponding to ½″ Operating load = max. 1,400 N Elongation at 1,400 N = 2.5 – 3 ‰
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quote
Tuotenro: 0.0.465.17
Osastot: Chain drive components, Chain drive components, Chain conveyor system, Lifting-door systems
Avainsana tuotteelle Meter
Scope of Delivery
Pitch p = 12.7 mm corresponding to ½″ Operating load = max. 1,400 N Elongation at 1,400 N = 2.5 - 3 ‰
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 215 g/m |
| Force max | Fmax. = 1400 N |
| Delivery unit | cut-off max. 25 m in 1″ intervals |
| Material | St, nickel-plated |
On Linear Units and in dynamic applications, Chain 1/2" is routed through the profile groove. It can be accessed through the groove and can be used to transfer drive forces. No fastening elements can be fitted in the profile grooves where the chain is run.
