| Timing-Belt Reverse Unit 8 80 R25 with Bore D34 | CADPDFRFQ |
Preview
Timing-Belt Reverse Unit 8 80 R25 with Bore D34
Timing-Belt Reverse Unit, die-cast zinc, black Ball-bearing timing pulley with ⌀ 34 H7 bore Hub length: 29 mm One revolution equivalent to 280 mm Effective radius r e = 44.6 mm Friction torque at 1‰ preload on timing belt: (Emergence dimension 40) T F = 1.05 Nm (Emergence dimension 80) T F = 0.55 Nm Max. load: T D = 52 Nm Belt length inside Reverse Unit in case of 90° reversal: 190 mm 180° reversal (emergence dimension 40): 360 mm 180° reversal (emergence dimension 80): 340 mm 2 Universal Fasteners 8 2 Button-Head Screws ISO 7380 M8x30, St, bright zinc-plated 1 special T-Slot Nut GS M8 Pitch p = 10 mm Number of teeth n = 28 Notes on Use and Installation
Tuotenro: 0.0.662.88
Osastot: Timing-belt reverse units, Timing-belt reverse units
Avainsana tuotteelle Static

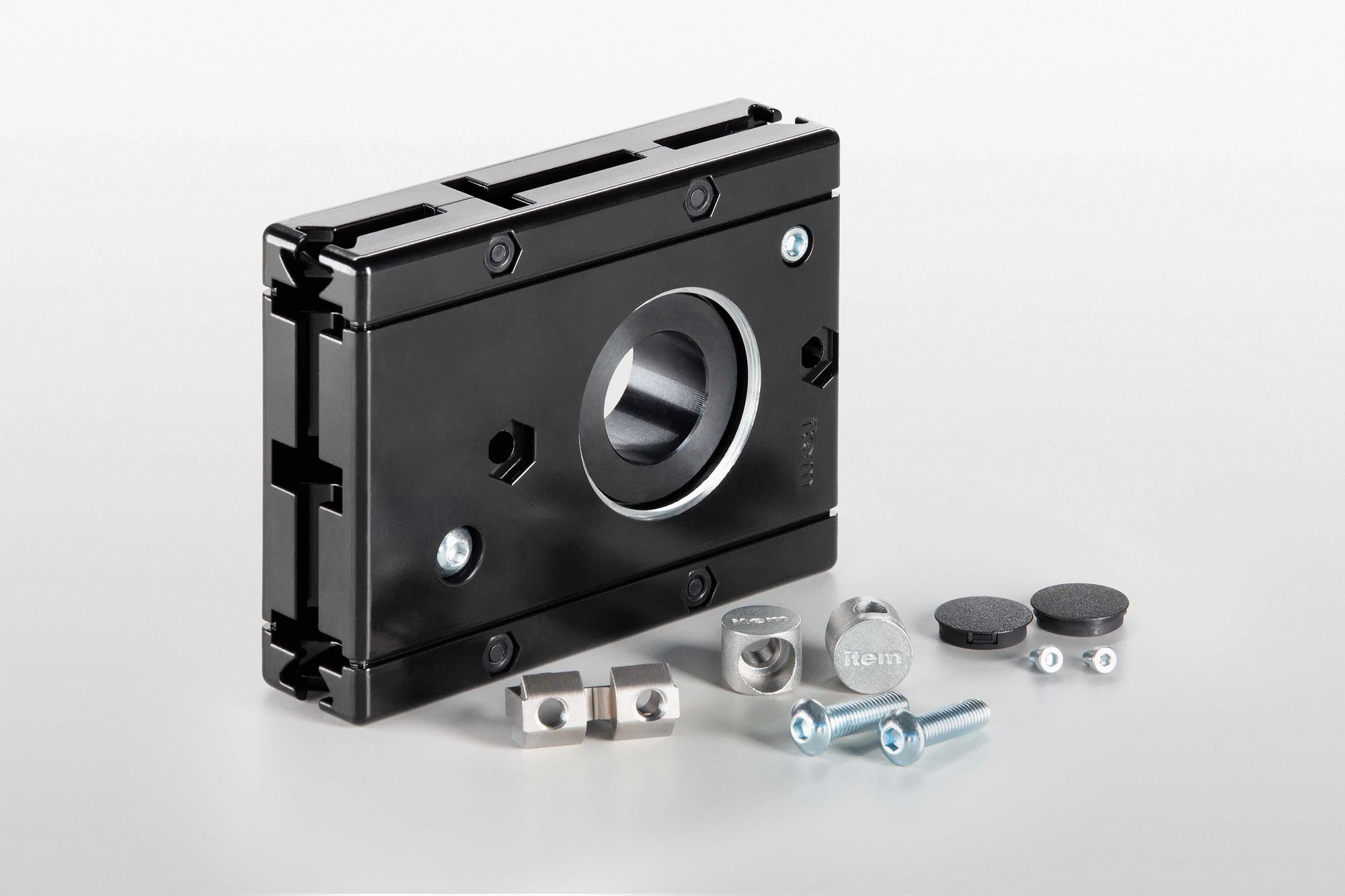

Scope of Delivery
Timing-Belt Reverse Unit, die-cast zinc, black Ball-bearing timing pulley with ⌀ 34 H7 bore Hub length: 29 mm One revolution equivalent to 280 mm Effective radius r e = 44.6 mm Friction torque at 1‰ preload on timing belt: (Emergence dimension 40) T F = 1.05 Nm (Emergence dimension 80) T F = 0.55 Nm Max. load: T D = 52 Nm Belt length inside Reverse Unit in case of 90° reversal: 190 mm 180° reversal (emergence dimension 40): 360 mm 180° reversal (emergence dimension 80): 340 mm 2 Universal Fasteners 8 2 Button-Head Screws ISO 7380 M8x30, St, bright zinc-plated 1 special T-Slot Nut GS M8 Pitch p = 10 mm Number of teeth n = 28 Notes on Use and Installation
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 3.1 kg |
| Delivery unit | 1 set |

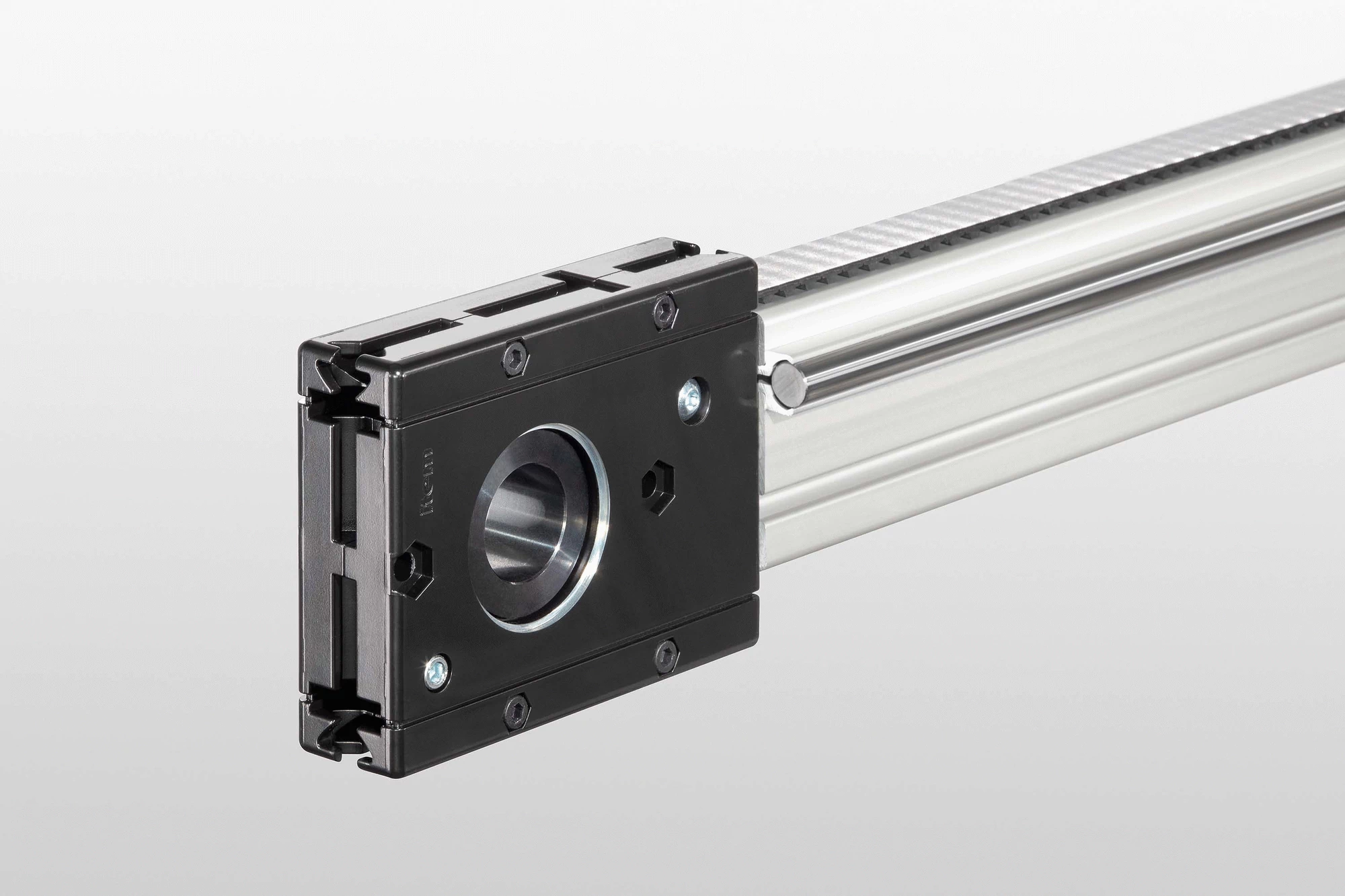

Creating customised Linear Units has never been easier! item Timing-Belt Reverse Units provide a reliable basis for linear axes using a timing-belt drive. The models with a D12, D15 or D34 bore are designed to support a backlash-free connection to item Motors and Gearboxes without requiring hub machining. The expanding hub couplings of Drive Sets ZU and Drive Set 8 D40/D15 can create a friction-based connection between all drive components. Everything fits together seamlessly without the need for machining. The item Automation System offers a wide selection of Gearboxes and servomotors with absolute encoders or resolvers, which helps reduce the complexity of solutions and create dependable Linear Units with a fast timing-belt drive. The universal Drive Sets from item are used to connect virtually any motor. Their coupling bore can be enlarged to match the drive shaft. The item Timing-Belt Reverse Units have been optimised for different profile and timing belt widths. The timing belt can be redirected by 90° or 180° inside the casing. The durable timing pulley, the robust casing and the use of T-Slot Nuts for installation ensure things run smoothly even when under load.
