| Timing-Belt Reverse Unit 5 40 R10 with Bore | CADPDFRFQ |
Preview

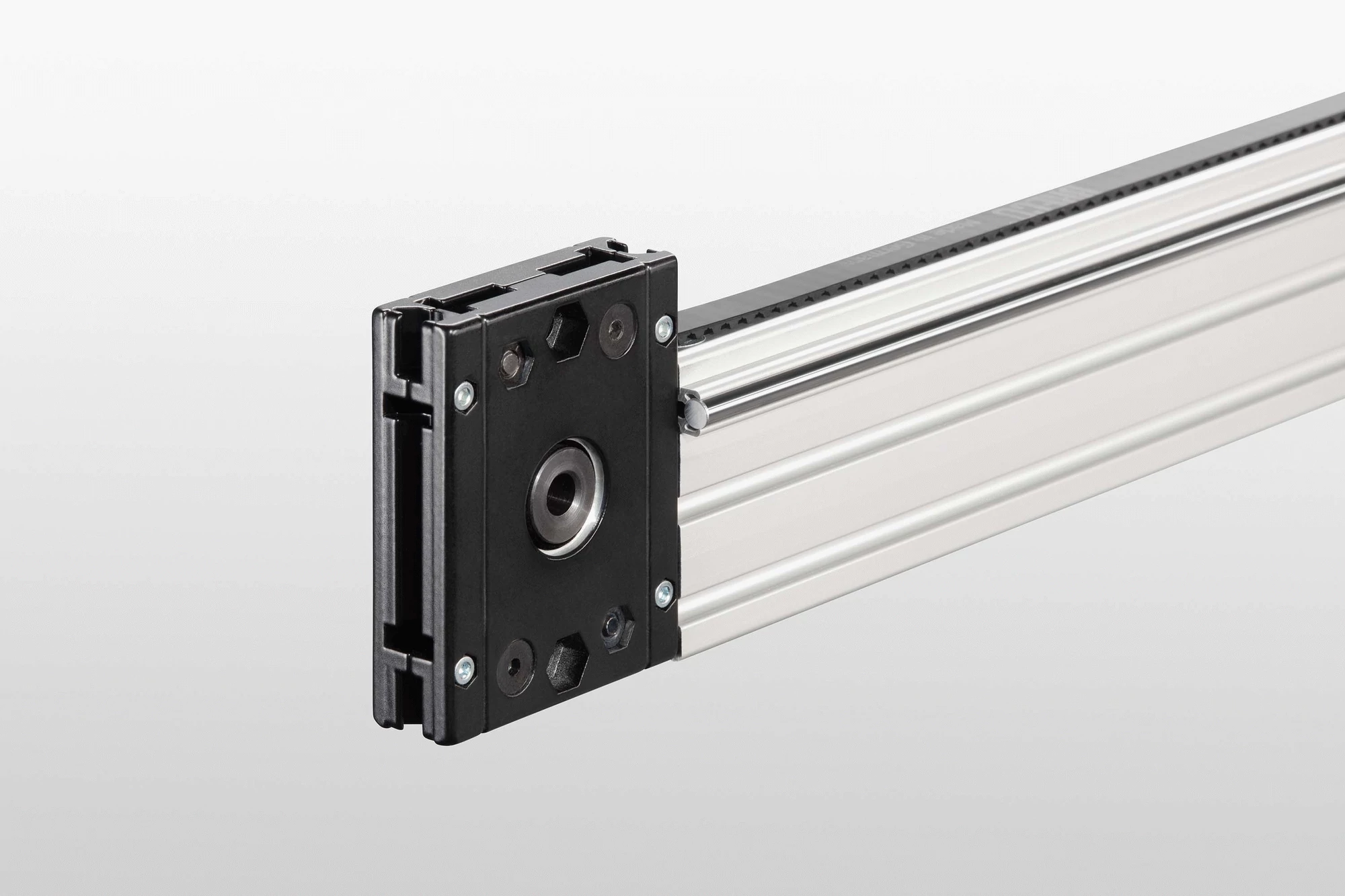

Timing-Belt Reverse Unit 5 40 R10 with Bore
Timing-Belt Reverse Unit, die-cast aluminium, black Ball-bearing timing pulley with bore ⌀ 8H7, reborable up to max. ⌀ 15 mm Hub depth 18 mm One revolution corresponds to 140 mm, effective radius r w = 22.3 mm, Frictional moment with 1‰ pre-tensioning of the Timing Belt: M R = 0.05 Nm Max. load: M D = 3.3 Nm Timing Belt length in the Timing-Belt Reverse Unit for 90° reversal: 110 mm 180° reversal (outer dimension 80): 135 mm 180° reversal (outer dimension 64): 150 mm 2 Universal-Fastening Sets 5, die-cast zinc, bright zinc-pl. Pitch p = 5 mm Number of teeth z = 28 Notes on Use and Installation
Tuotenro: 0.0.410.06
Osastot: Timing-belt reverse units, Timing-belt reverse units
Avainsana tuotteelle Static
Scope of Delivery
Timing-Belt Reverse Unit, die-cast aluminium, black Ball-bearing timing pulley with bore ⌀ 8H7, reborable up to max. ⌀ 15 mm Hub depth 18 mm One revolution corresponds to 140 mm, effective radius r w = 22.3 mm, Frictional moment with 1‰ pre-tensioning of the Timing Belt: M R = 0.05 Nm Max. load: M D = 3.3 Nm Timing Belt length in the Timing-Belt Reverse Unit for 90° reversal: 110 mm 180° reversal (outer dimension 80): 135 mm 180° reversal (outer dimension 64): 150 mm 2 Universal-Fastening Sets 5, die-cast zinc, bright zinc-pl. Pitch p = 5 mm Number of teeth z = 28 Notes on Use and Installation
Properties
| line 5 | line 5 |
|---|---|
| Torque max. | Mmax. = 4 Nm |
| ESD-safe | No |
| Weight | m = 277 g |
| Delivery unit | 1 set |
To protect the Timing Belt against damage, the profiles must be rounded at the joint to the Timing-Belt Reverse Unit.
Mounting at a height of 40 mm in the groove of Profile 5 with Universal-Fastening Set 5.
