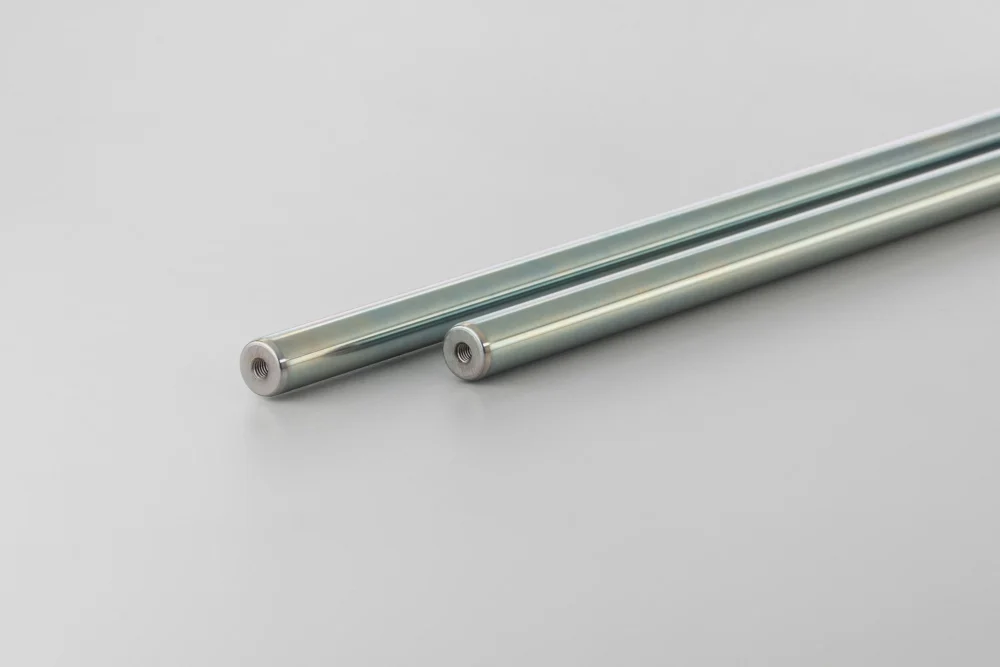

Shaft D14 K

Hardness HRc 60 ± 2 Roughness Ra = 0.3 μm, Rz = 1.6 μm Hardening depth min. 0.6 mm Roundness 5 μm, Parallelism 8 μm/1000 mm With corrosion-resistant coating

Configurated product data

Nothing generated yet

You must configurate your product below before requesting quote
Tuotenro: 0.0.294.55 Osastot: , Avainsana tuotteelle
Set CAD-format
0.0.294.55

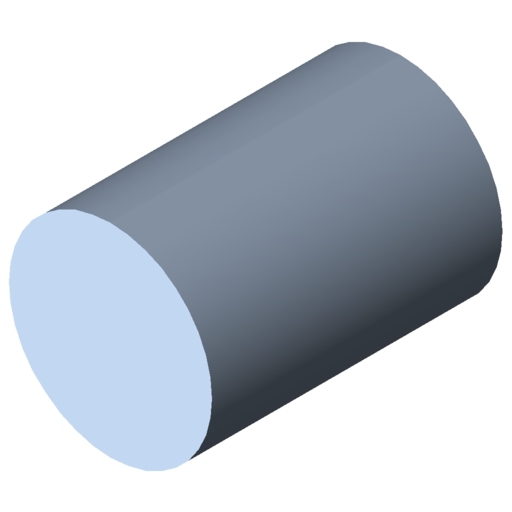

Preview

Scope of Delivery

Hardness HRc 60 ± 2 Roughness Ra = 0.3 μm, Rz = 1.6 μm Hardening depth min. 0.6 mm Roundness 5 μm, Parallelism 8 μm/1000 mm With corrosion-resistant coating

Properties

Diameterd = 14 mm
ESD-safeNo
Weightm = 1.21 kg/m
Delivery unitcut-off max. 3000 mm
MaterialSt, Cf 53, hardened, polished
