Drawbar D25-610
Preassembled Drawbar D25-610, St, bright zinc-plated Impact Buffer M8 D30x30, NBR Double torsion spring D32x4-70, St, stainless
Scope of Delivery
Preassembled Drawbar D25-610, St, bright zinc-plated Impact Buffer M8 D30x30, NBR Double torsion spring D32x4-70, St, stainless
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 3.609 kg |
| Delivery unit | 1 pce. |

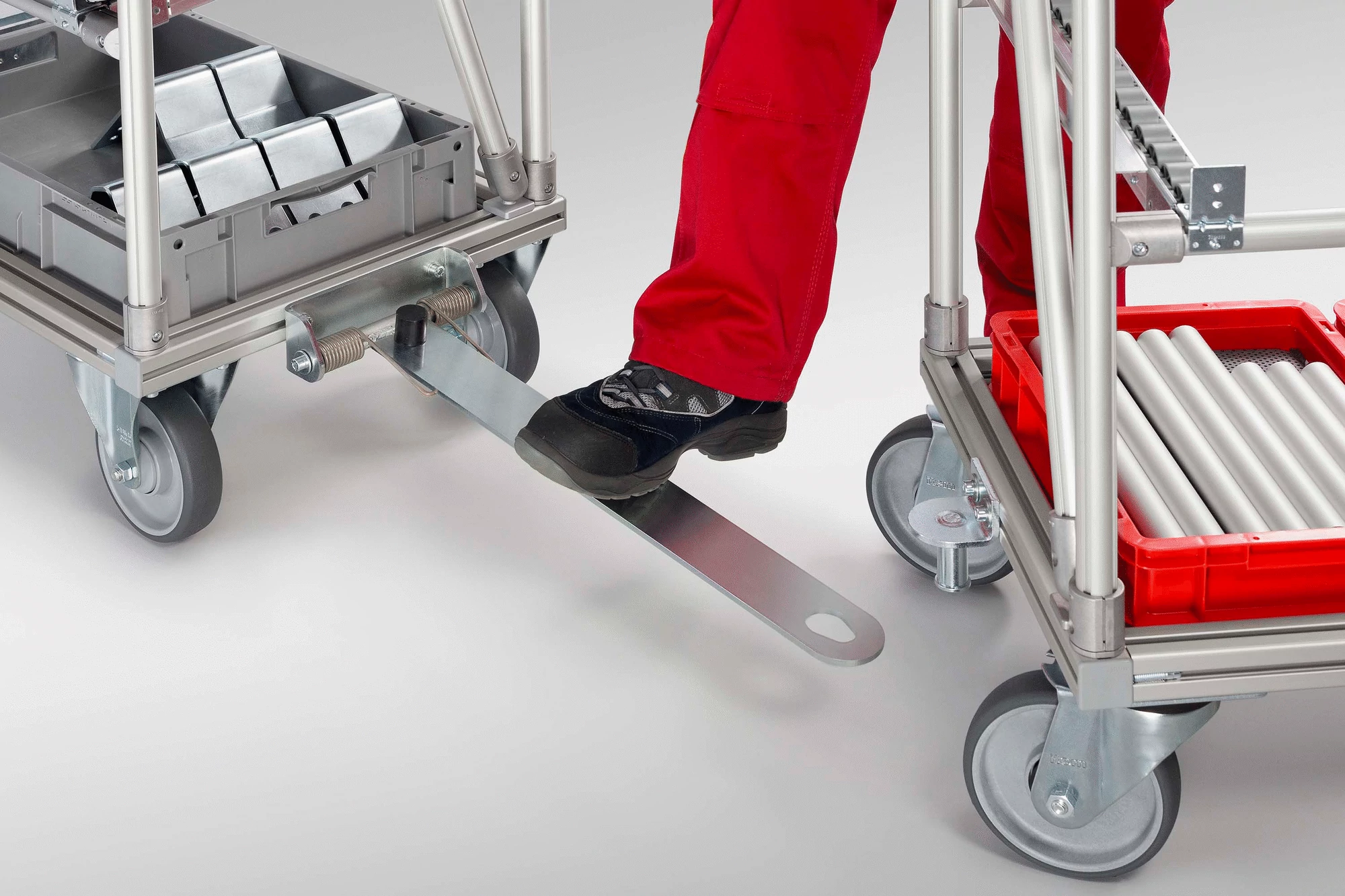

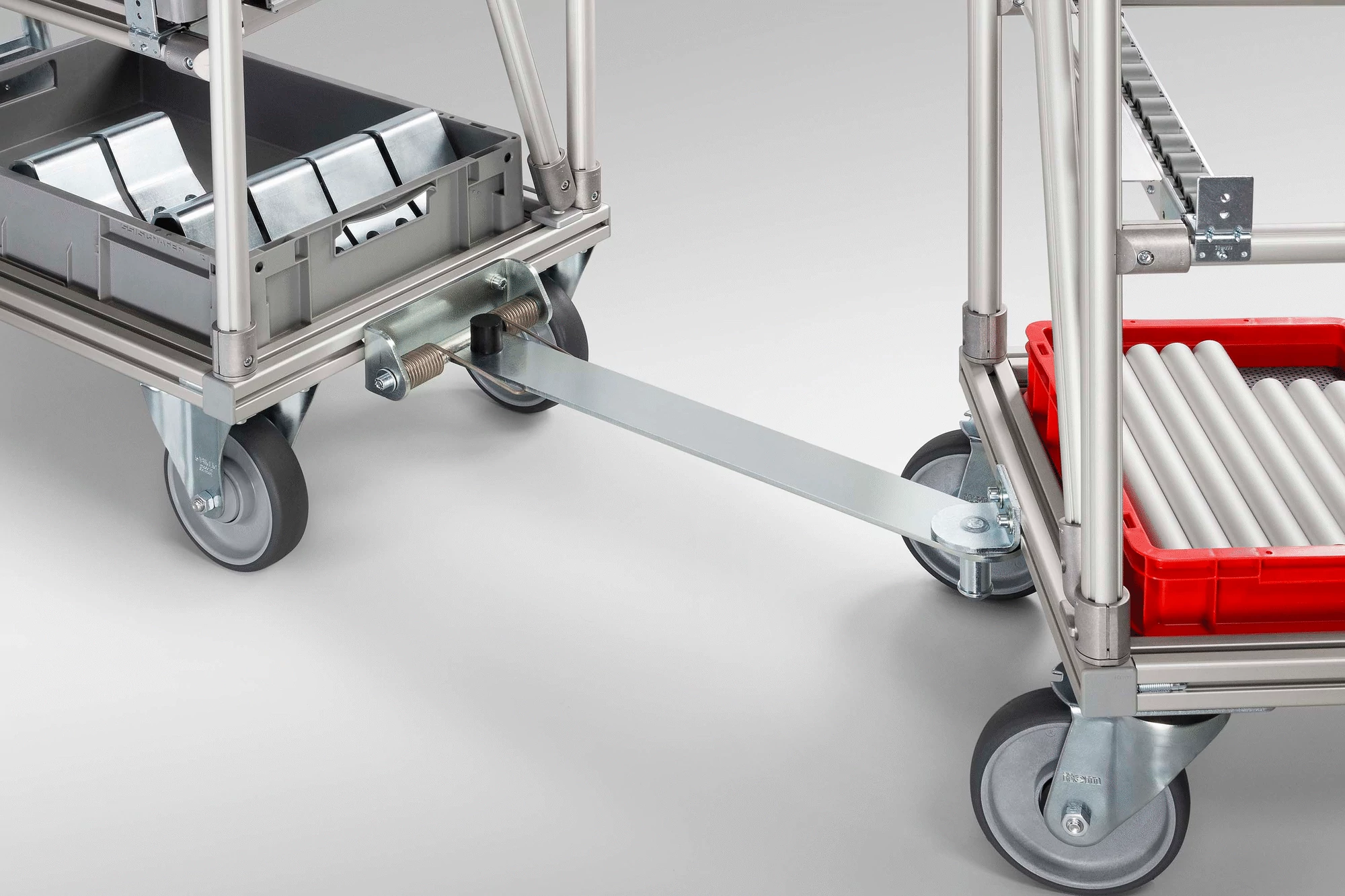

The easier way to pull lightweight trolleys! Thanks to its low dead weight, Drawbar D25-610 is ideal for transport trolleys and tugger trains that are also light in weight. The ergonomic self-lifting mechanism on Drawbar D25-610 is easy on the back. Its integrated spring pushes the Drawbar up, which means users can couple and uncouple trolleys using their feet and without having to bend over. If the Drawbar is not needed, it folds up automatically so that it doesn’t present a trip hazard. Drawbar D25-610 connects to Drawbar Coupling D25-30. The pin of the Coupling should be pointing down. Important: Ensure the correct combination of Drawbar and Coupling are used. Drawbar Coupling D25-74 cannot be used, because the pin is located at a different working height.
Connection dimensions for Drawbar D25-610
