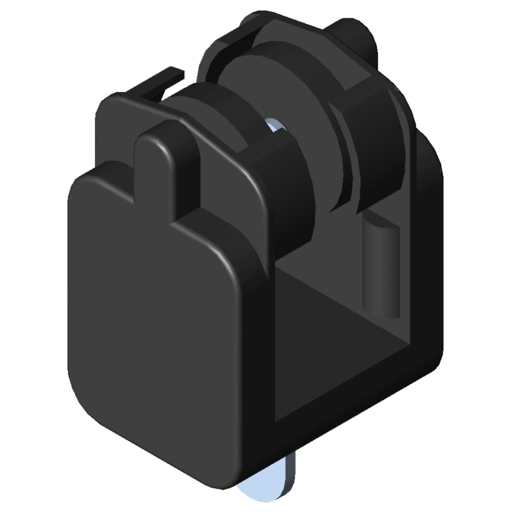

Carriage D37-32 ESD
1 Carriage D37-32, PA-ESD, black similar to RAL 9005
Tuotenro: 0.0.715.67
Osasto: Low-cost automation – the mechanical solution
Avainsana tuotteelle Static
Scope of Delivery
1 Carriage D37-32, PA-ESD, black similar to RAL 9005
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 129.5 g |
| Delivery unit | 1 pce. |
| Status on delivery | Preassembled |
| Max. load-carrying capacity | F = 50 N |

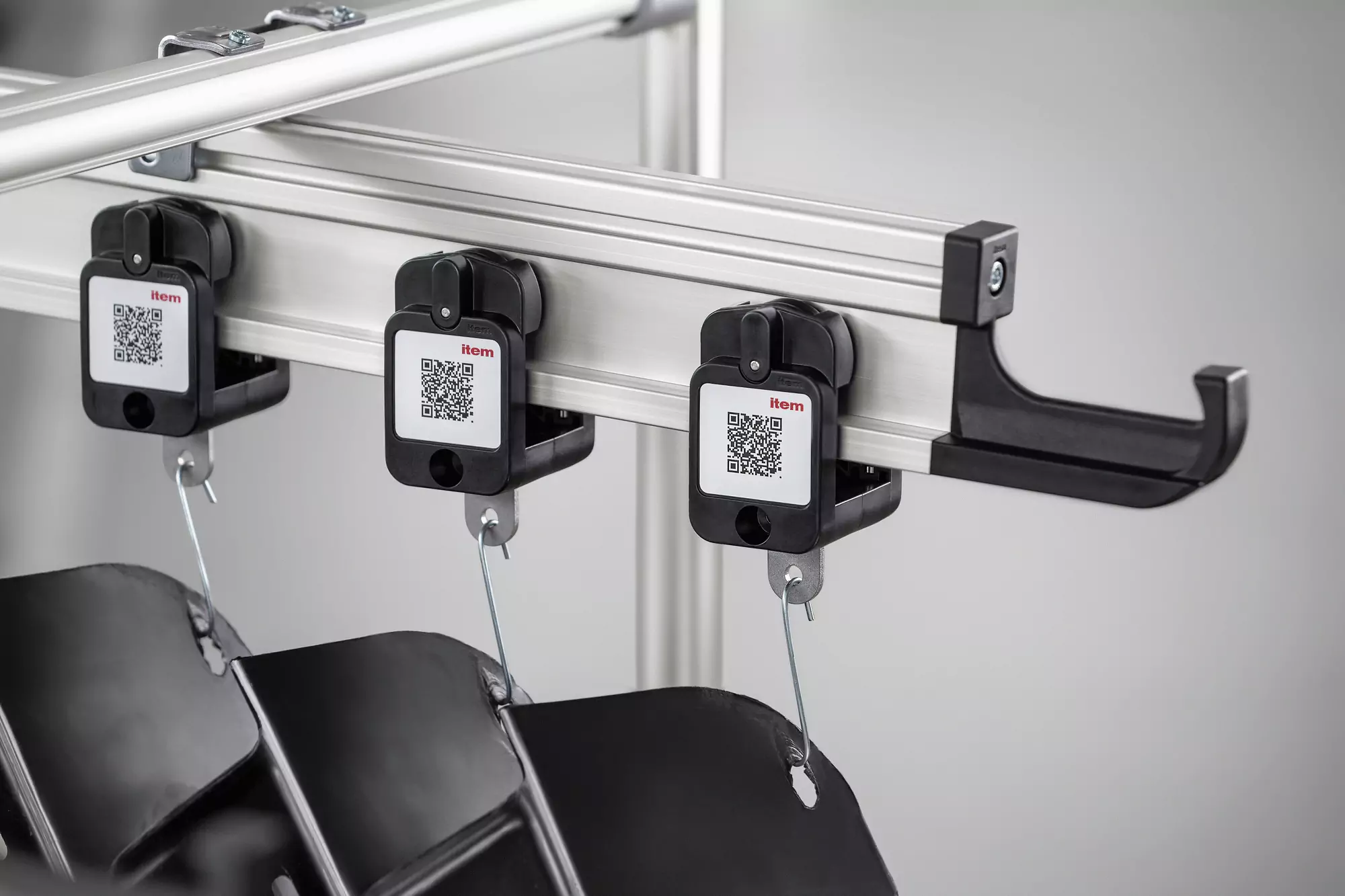

Carriage D37-32 ESD is used to transport materials by suspending them on Conveyor Rail Profile 6 30x30-80 (0.0.712.90). The easy-running, ESD-safe carriage features a universal connection tab on the underside for use with hangers and spring hooks, for example.

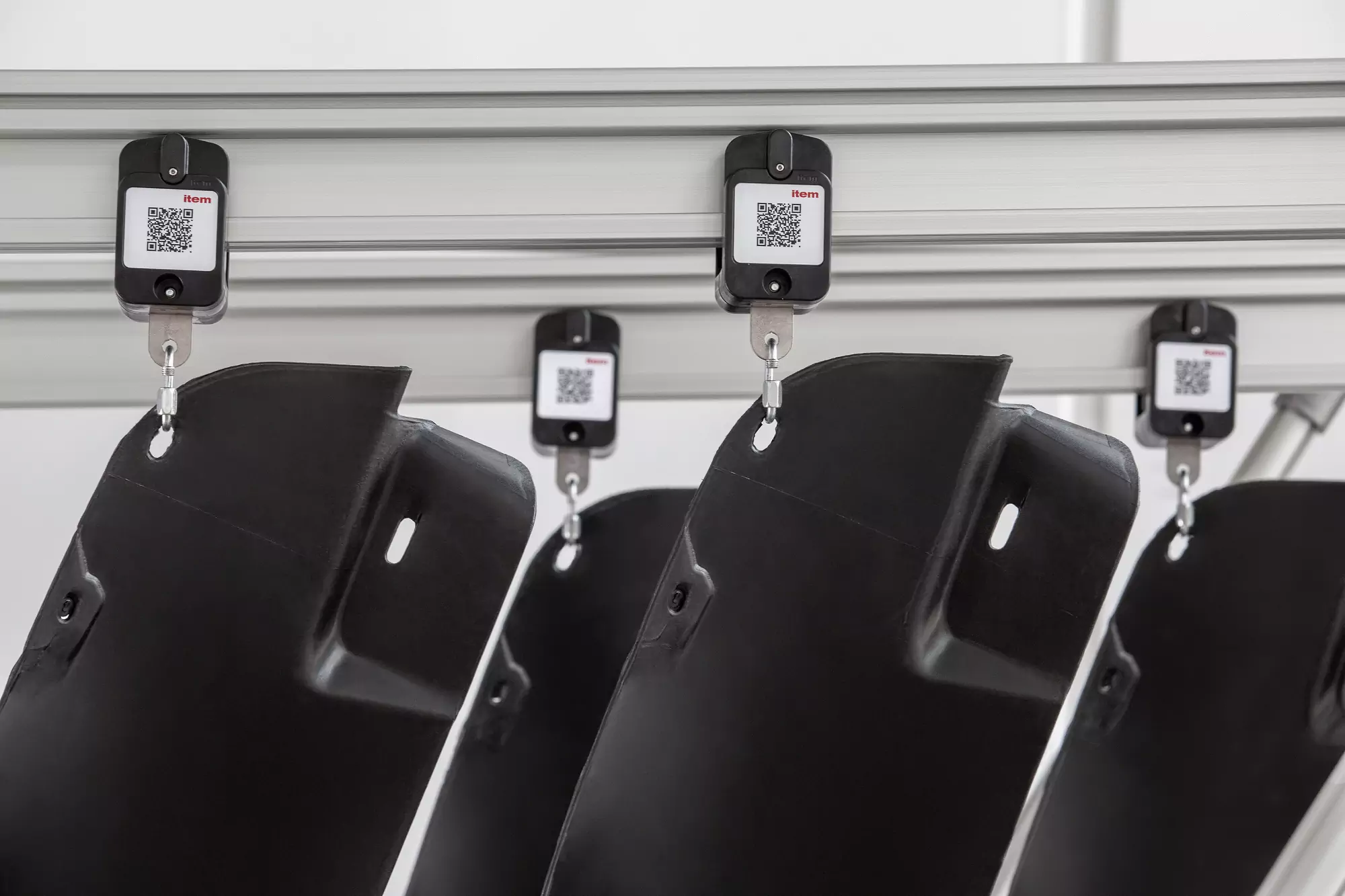

An incline of 3° is all that Carriage D37-32 ESD needs in order to travel along the Conveyor Rail Profile independently under the force of gravity, all the way to the End Stop. Two low-friction castors and four vertical rollers for lateral support ensure smooth running, even when under load and when weight is distributed asymmetrically. A swing/tilt angle stop mechanism limits oscillating motions to 15°.

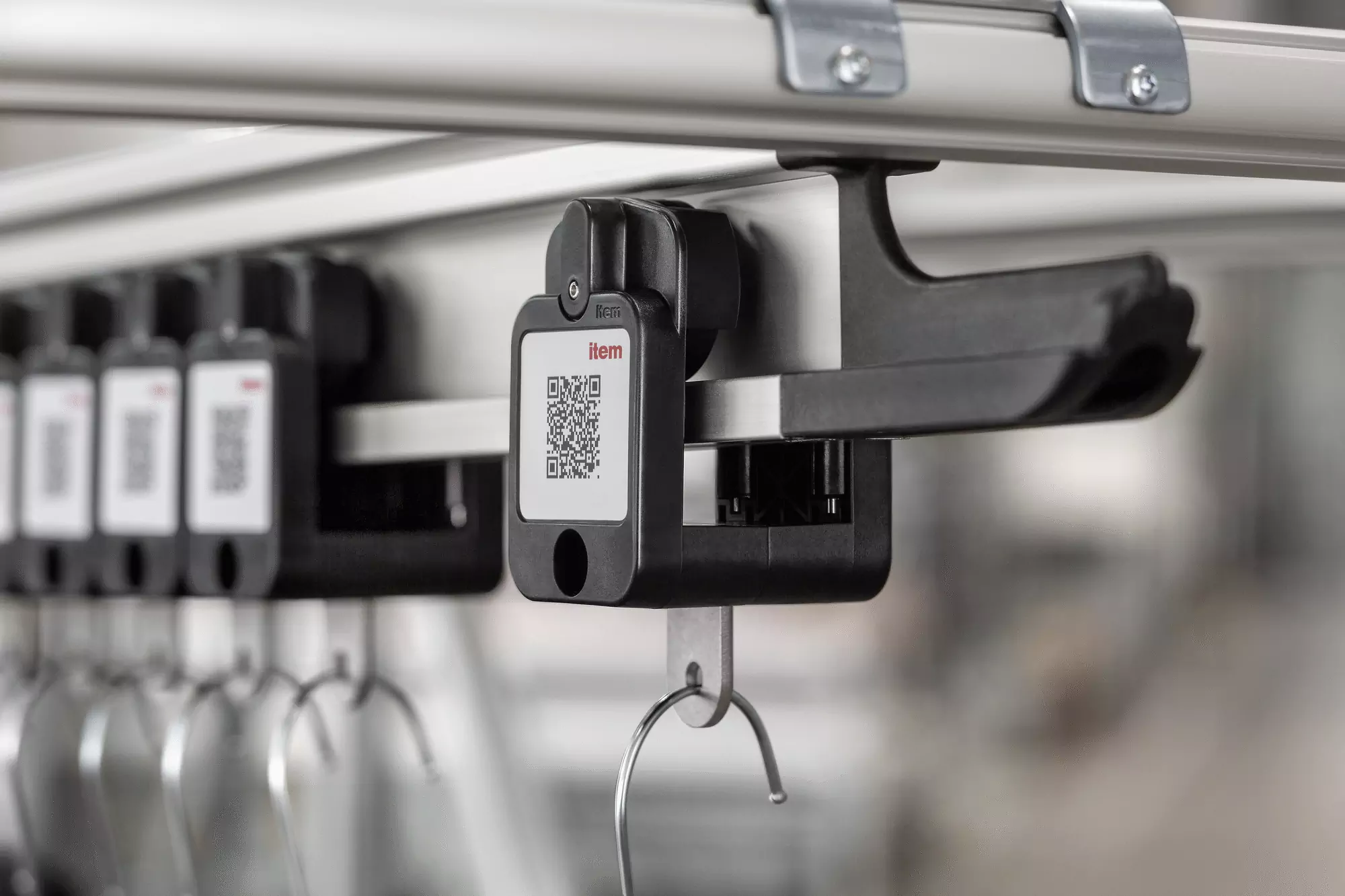

An indentation designed for labels is included on both sides of the casing for material management purposes. It is suitable for self-adhesive labels or QR codes in a format of 34 x 30 mm or 41 x 37 mm with R4 radii at the corners.
