Standard-Fastening Set 5, stainless

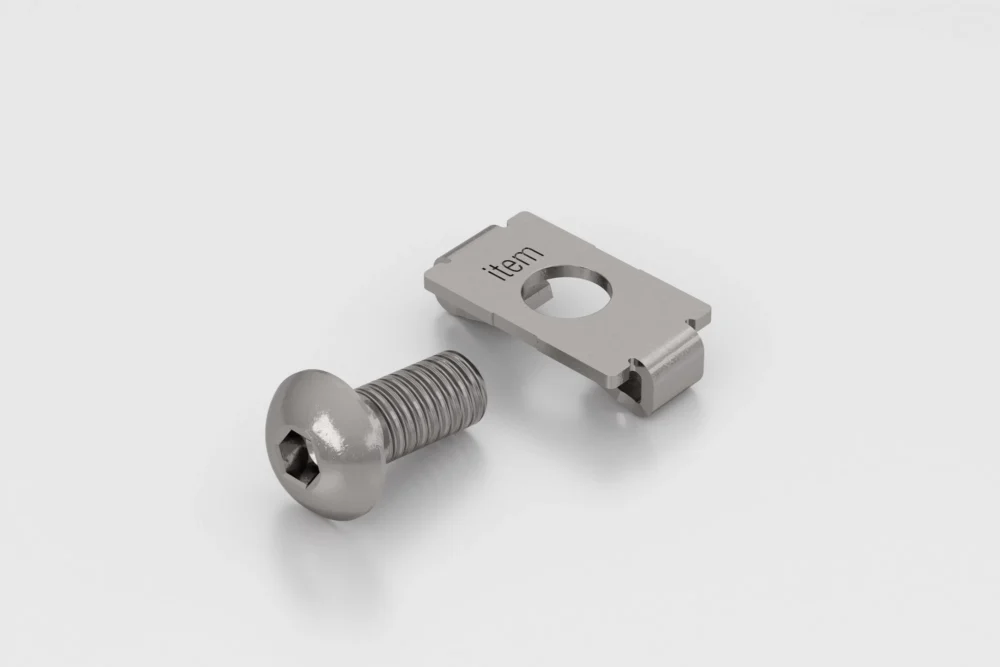

Standard connecting plate 5, St, stainless Special Button-Head Screw similar to ISO 7380-M5x12, St, stainless
Scope of Delivery
Standard connecting plate 5, St, stainless Special Button-Head Screw similar to ISO 7380-M5x12, St, stainless
Properties
| Torque | M = 3.6 Nm |
|---|---|
| line 5 | line 5 |
| Property | stainless |
| ESD-safe | Yes |
| Weight | m = 4 g |
| Delivery unit | 1 set |
Standard-Fastening Set 5, stainless from item joins two Line 5 profiles at a right angle to create a connection that exhibits particularly high resistance to displacement and torsion. The stainless steel connecting plate projects into the grooves on both sides and thus ensures a torsion-resistant alignment. A thread needs to be tapped into the core bore of the first profile to install the fastener. The second profile requires an installation bore and is connected in a fixed position.

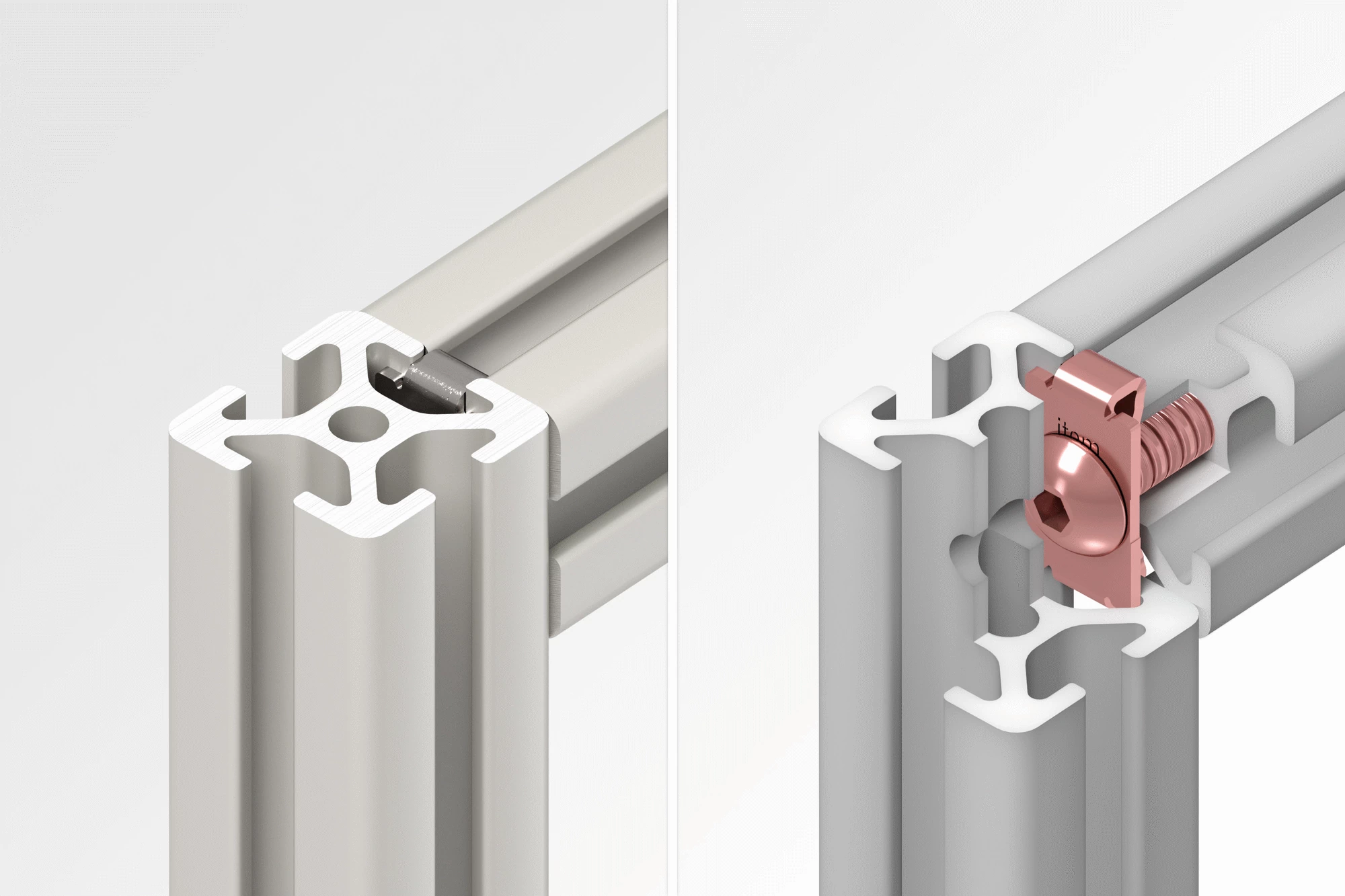

Installation with flush-mounted profile end face
