| Sealing Plug D19 | CADPDFRFQ |
Preview

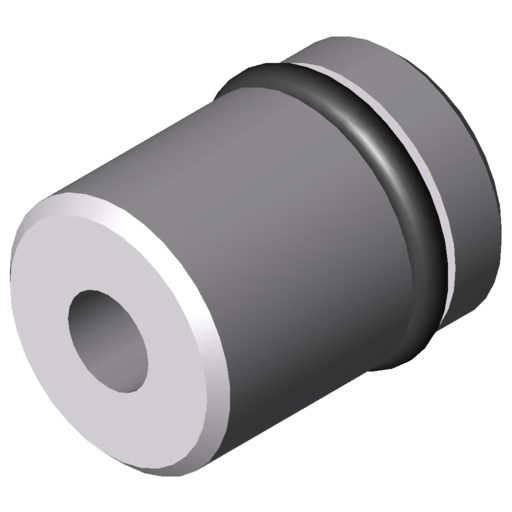

Sealing Plug D19
Sealing Plug D19, Al O-ring DIN 3771 15×2.5, NBR, black
Scope of Delivery
Sealing Plug D19, Al O-ring DIN 3771 15x2.5, NBR, black
Properties
| ESD-safe | No |
|---|---|
| Weight | m = 16 g |
| Delivery unit | 1 set |

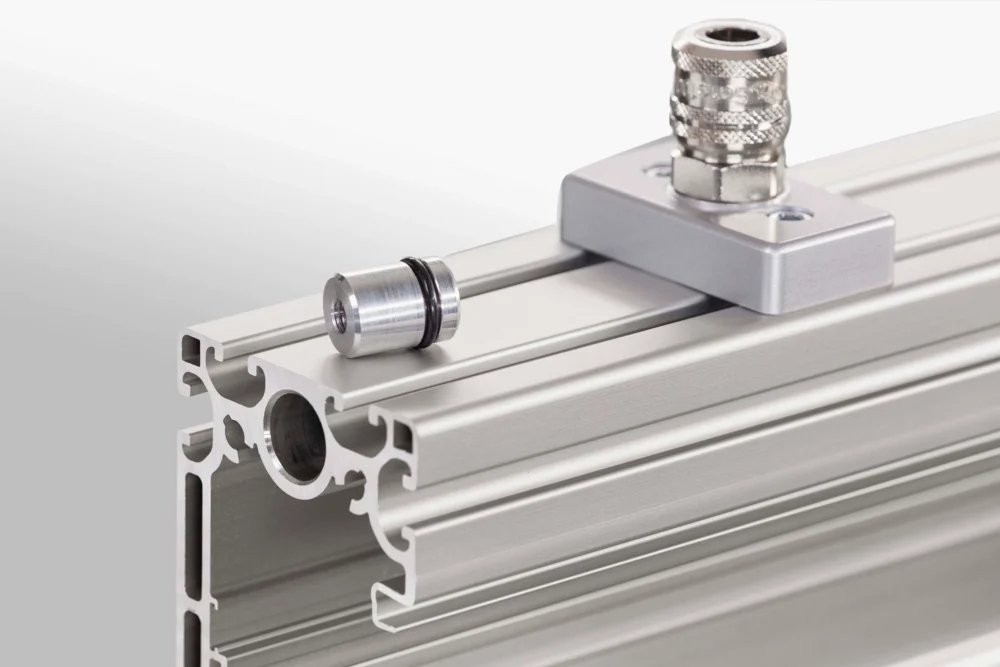

Sealing Plug D19 creates an airtight seal in a compressed air conduit in Installation Profile 8 160x80 K76 and Installation Column Profile 8 160x160 K76. To ensure it can’t be forced out, Caps 8 160x80 or Caps 8 160x160 must be screwed into place. The Sealing Plugs are not connected to the Caps, which prevents leakage when the Installation Profiles are subjected to transverse loads.
