| Telescopic Rail heavy duty 19.1×53.1 L900, over extension, bright zinc-plated | CADPDFRFQ |

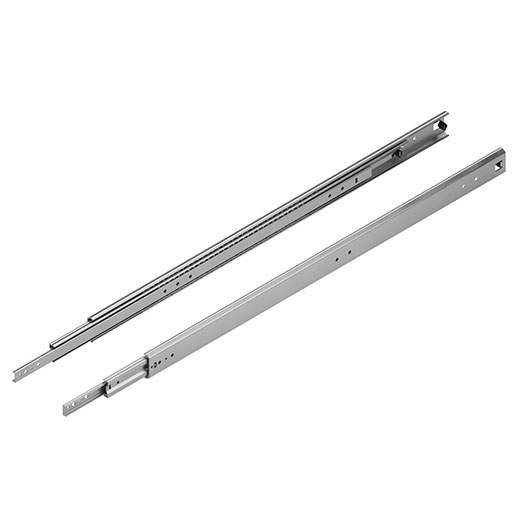

Esikatselu
Telescopic Rail heavy duty 19.1×53.1 L900, over extension, bright zinc-plated
2 Telescopic Rails heavy duty 19.1×53.1 L900, over extension
Tuotenro: 0.0.729.94
Osastot: Työpöydän lisävarusteet, New Products Work Bench System
Avainsana tuotteelle Staattinen
Scope of Delivery
2 Telescopic Rails heavy duty 19.1x53.1 L900, over extension
Properties
| rivi 5 | rivi 5 |
|---|---|
| rivi 6 | rivi 6 |
| rivi 8 | rivi 8 |
| Lataa | max. 80 kg per pair |
| Kiinteistö | kirkas sinkitty |
| ESD-safe | Kyllä |
| Paino | m = 5.3034 kg |
| Ambient temperature (during operation) | -20 °C … +70 °C |
| Delivery unit | 1 set |
| Materiaali | St |
Especially robust Telescopic Rail heavy duty 19.1x53.1 L900, over extension exhibits a rail length of 900 mm and an extended pull-out length of 923.5 mm. When in the closed position, a latching mechanism prevents unintentional extension of the rail.
Telescopic Rails with an over-extension mechanism can be fitted to Profiles with Line 5, 6 or 8 grooves and to panel elements so that drawers or trays can be pulled out beyond the frame to provide easier access to their contents. This makes it possible to create ergonomic service trolleys and robust under-bench cabinets. The fastening positions described in the installation guide must be used in order to achieve the maximum load values.
