| Telescopic Rail 12.7×45.7 L450 soft close, full extension, bright zinc-plated | CADPDFRFQ |
Esikatselu

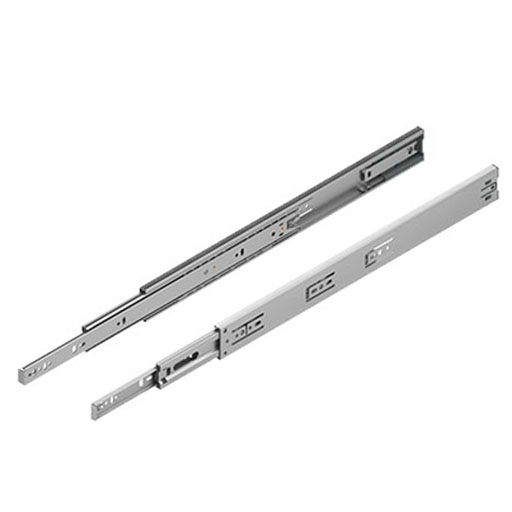

Telescopic Rail 12.7×45.7 L450 soft close, full extension, bright zinc-plated
2 Telescopic Rails 12.7×45.7 L450 soft close, full extension
Tuotenro: 0.0.729.89
Osastot: New Products Work Bench System, Työpöydän lisävarusteet
Avainsana tuotteelle Staattinen
Scope of Delivery
2 Telescopic Rails 12.7x45.7 L450 soft close, full extension
Properties
| rivi 5 | rivi 5 |
|---|---|
| rivi 6 | rivi 6 |
| rivi 8 | rivi 8 |
| Lataa | max. 45 kg per pair |
| Kiinteistö | kirkas sinkitty |
| ESD-safe | Kyllä |
| Paino | m = 1.3468 kg |
| Ambient temperature (during operation) | +10 °C … +40 °C |
| Delivery unit | 1 set |
| Materiaali | St |

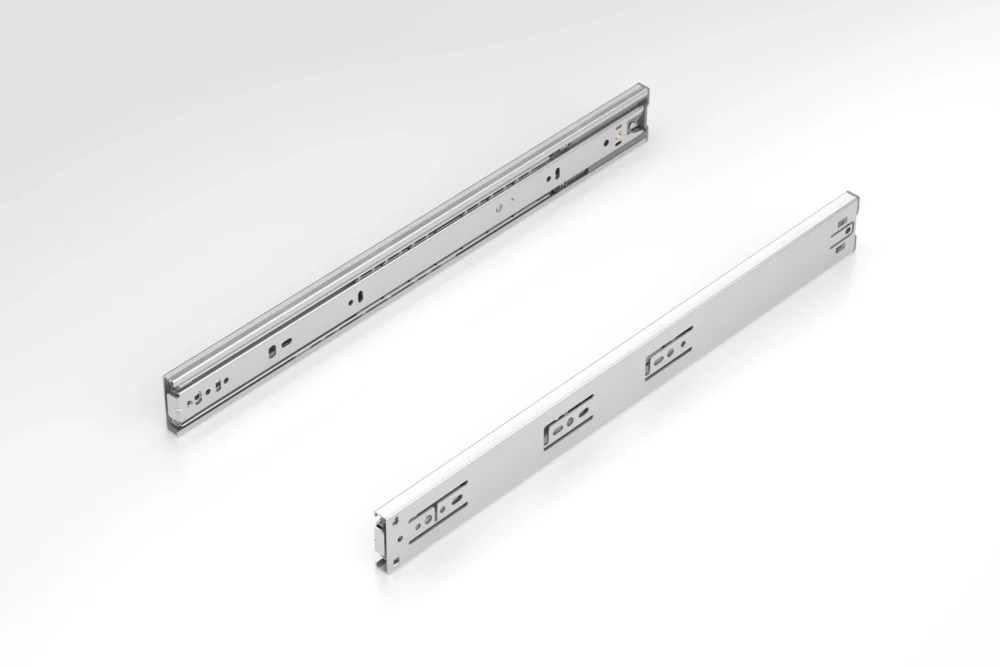

Telescopic Rail 12.7x45.7 L450 soft close, full extension exhibits a rail length of 450 mm and a pull-out length of 457 mm. The soft close feature ensures drawers can be closed gently and securely. The integrated latching mechanism prevents unintentional extension of the rail when in the closed position.

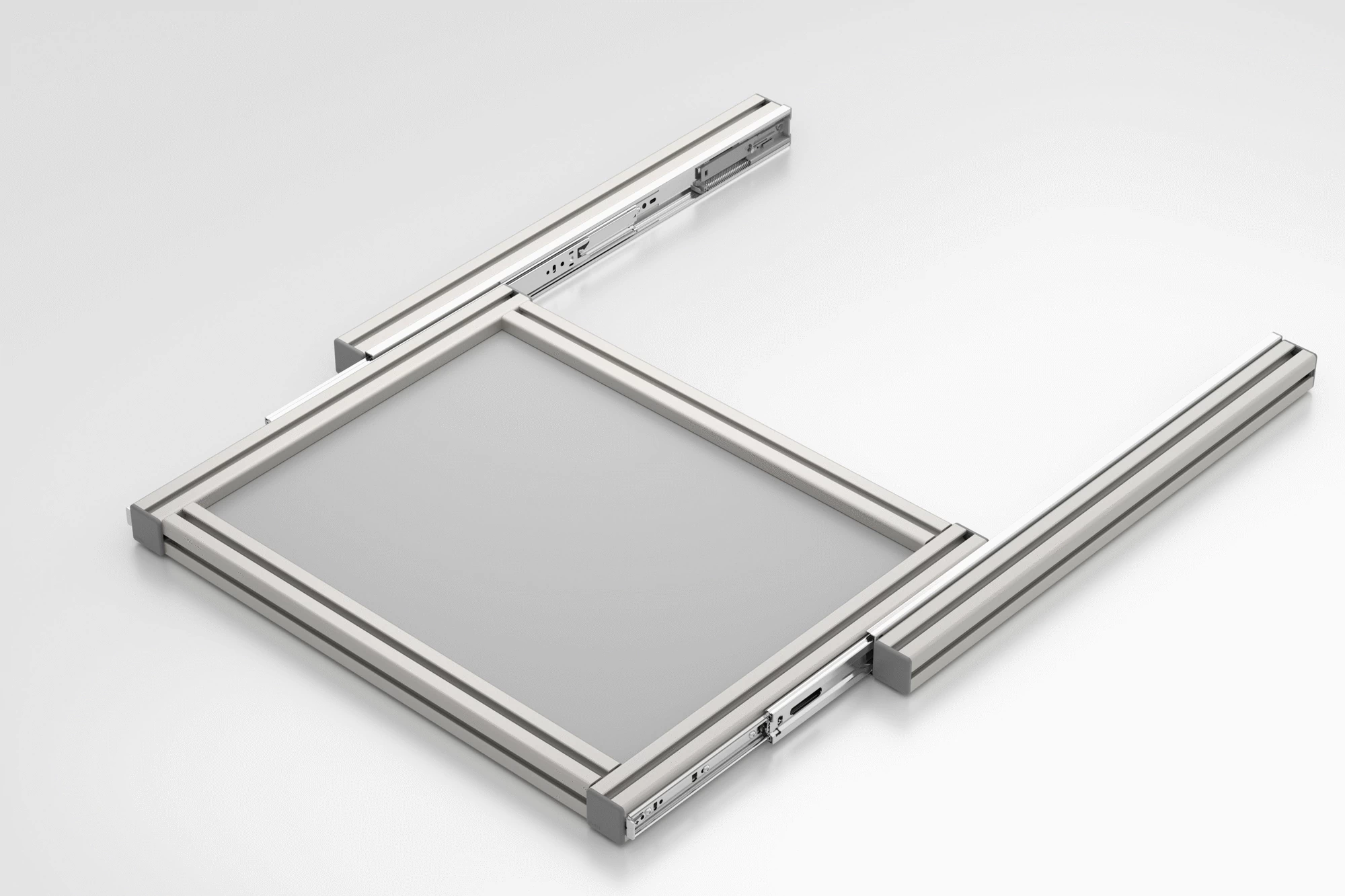

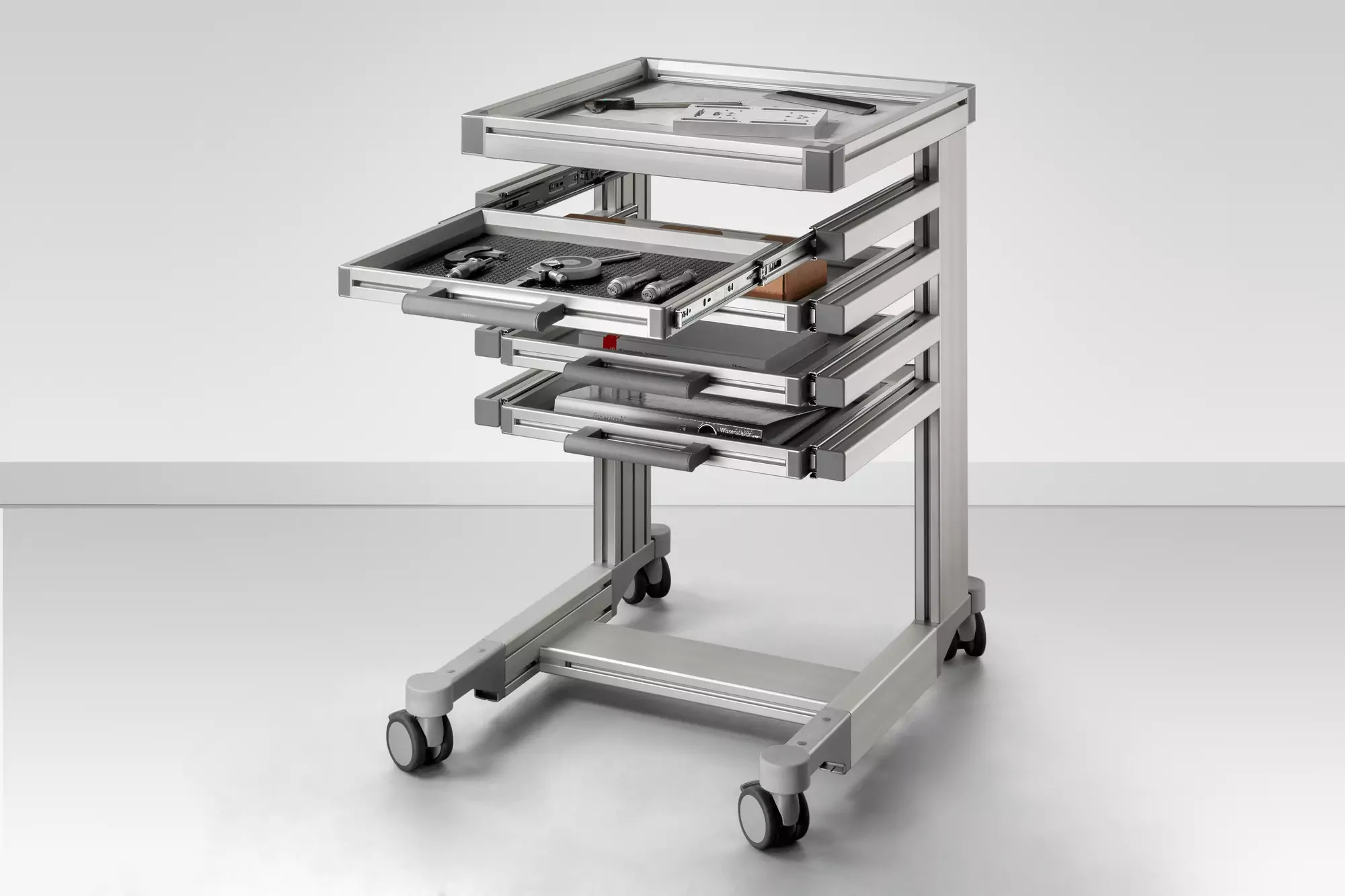

Full-extension telescopic rails can be fastened to profiles with Line 5, 6 or 8 grooves and to panel elements. They can be used to create customised under-bench cabinets with drawers and ergonomic service trolleys with pull-out trays. The fastening positions described in the installation guide must be used in order to achieve the maximum load values.
