| Roller Set 8 D30-30 ESD | CADPDFRFQ |
Preview
Roller Set 8 D30-30 ESD
Partially preassembled Roller D30/D6-16, thermoplastic, ESD 2 Spacer Bushings D17/D6-12, St, bright zinc-plated Hexagon Socket Head Cap Screw similar to DIN 912 M6x50, St, bright zinc-plated T-Slot Nut V 8 St M6, St, bright zinc-plated
Tuotenro: 0.0.681.51
Osastot: Material flow, Low-cost automation – the mechanical solution
Avainsana tuotteelle Static
Scope of Delivery
Partially preassembled Roller D30/D6-16, thermoplastic, ESD 2 Spacer Bushings D17/D6-12, St, bright zinc-plated Hexagon Socket Head Cap Screw DIN 912 M6x50, St, bright zinc-plated T-Slot Nut V 8 St M6, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 79 g |
| Delivery unit | 1 set |

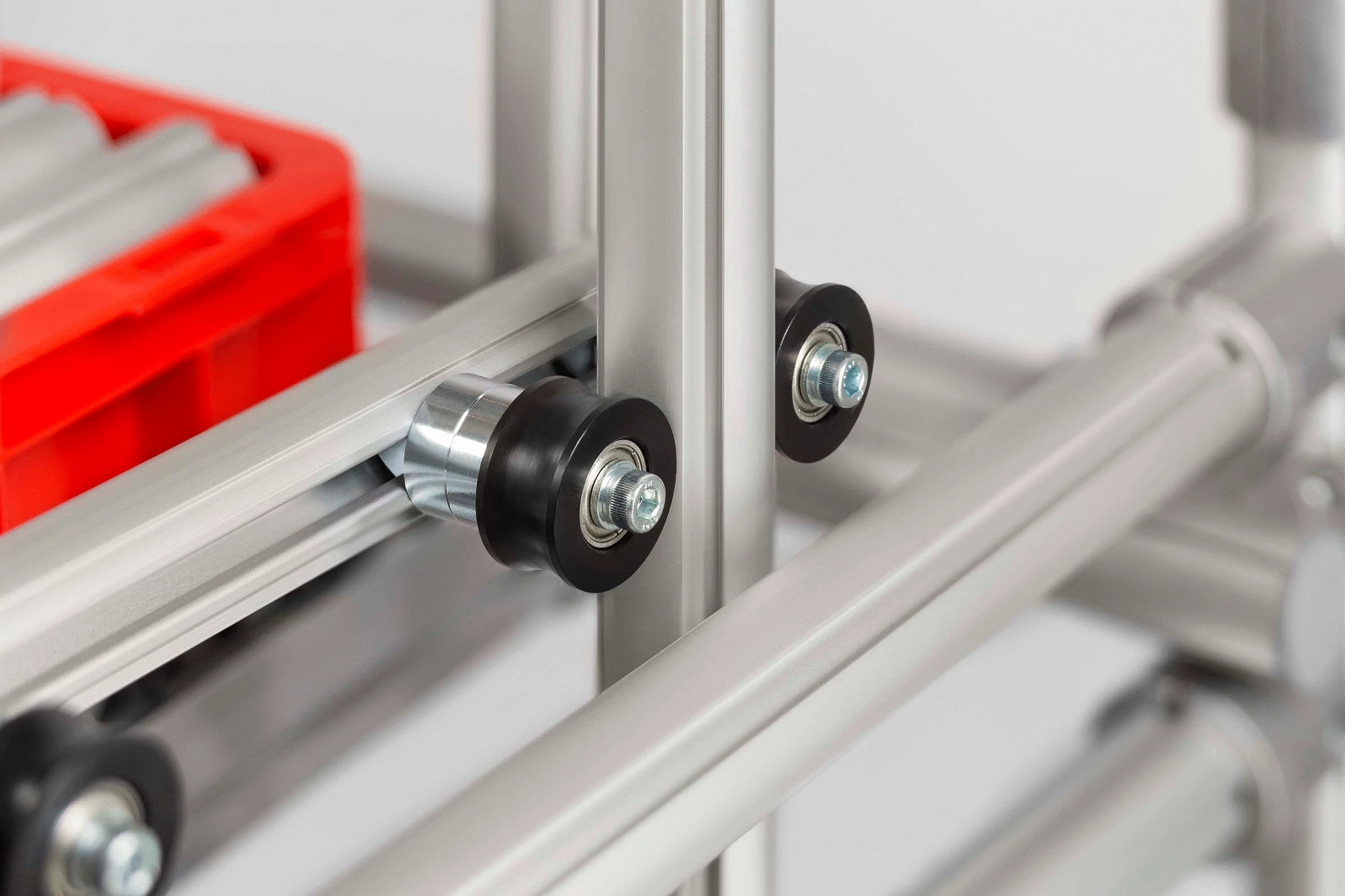

Precise movement under all conditions: Roller D30/D6-16 ESD and Roller D30/D6-16 T1 ESD ensure smooth running on carriages and other moving components. They use the profile frame as guidance, meaning there is no need for additional profiles. Roller D30/D6-16 ESD has a concave running surface with a contour that perfectly matches that of (Profile) Tubes D30. For best results, Roller D30/D6-16 ESD should be installed together with Roller D30/D6-16 T1 ESD. Using this combination of Rollers prevents jamming as a result of static overdetermination. This means Karakuri/LCA applications can also be built for lightweight containers. The Rollers are available preassembled with Spacer Bushings and a T-Slot Nut 8 as Roller Set 8 D30-30 ESD and Roller Set 8 D30-30 T1 ESD. This means they can be rapidly attached to a Profile Tube 8 D30 or any Line 8 groove, thereby making it even easier to construct lifts, roller trolleys and slides. The Rollers and Spacer Bushing D17/D6-12 are also available separately for custom applications. The Spacer Bushings create the necessary gap between the profile and slide. They are fastened using M6 screws in an item Multiblock D30, for example.
F = 50 N
