Levelling Feet D80, M33x80

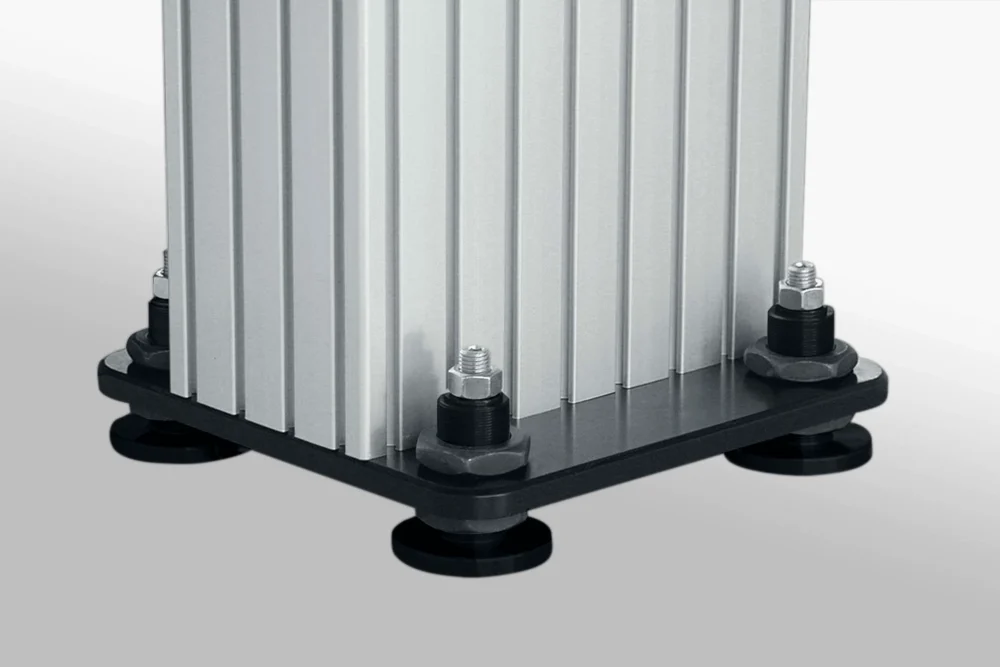

Stable Base Plate, suitable as heavy-duty machine base or for anchoring heavy frames. The hole pattern for the countersinks can be used for end-face connection to Profiles 8 160x160, 160x160 8EN, 240x160 8EN and 320x160. The Base Plate can be fastened to the floor in two ways - either by bolting it directly to the floor or by also using Levelling Feet. These compensate for slight unevenness of the floor in the area of the Base Plate as well as possible height differences. The Floor-Fastening Sets are fed through the bores in the Levelling Feet. When these are tightened the Levelling Feet are fixed in their preset position.

The lower hexagon nut (50 A/F) is adjusted to set the height of the Levelling Feet. The hollow stud must be prevented from twisting (30 A/F). Any unevenness is compensated for by means of a ball socket in the base plate (α = ± 2.5°).
