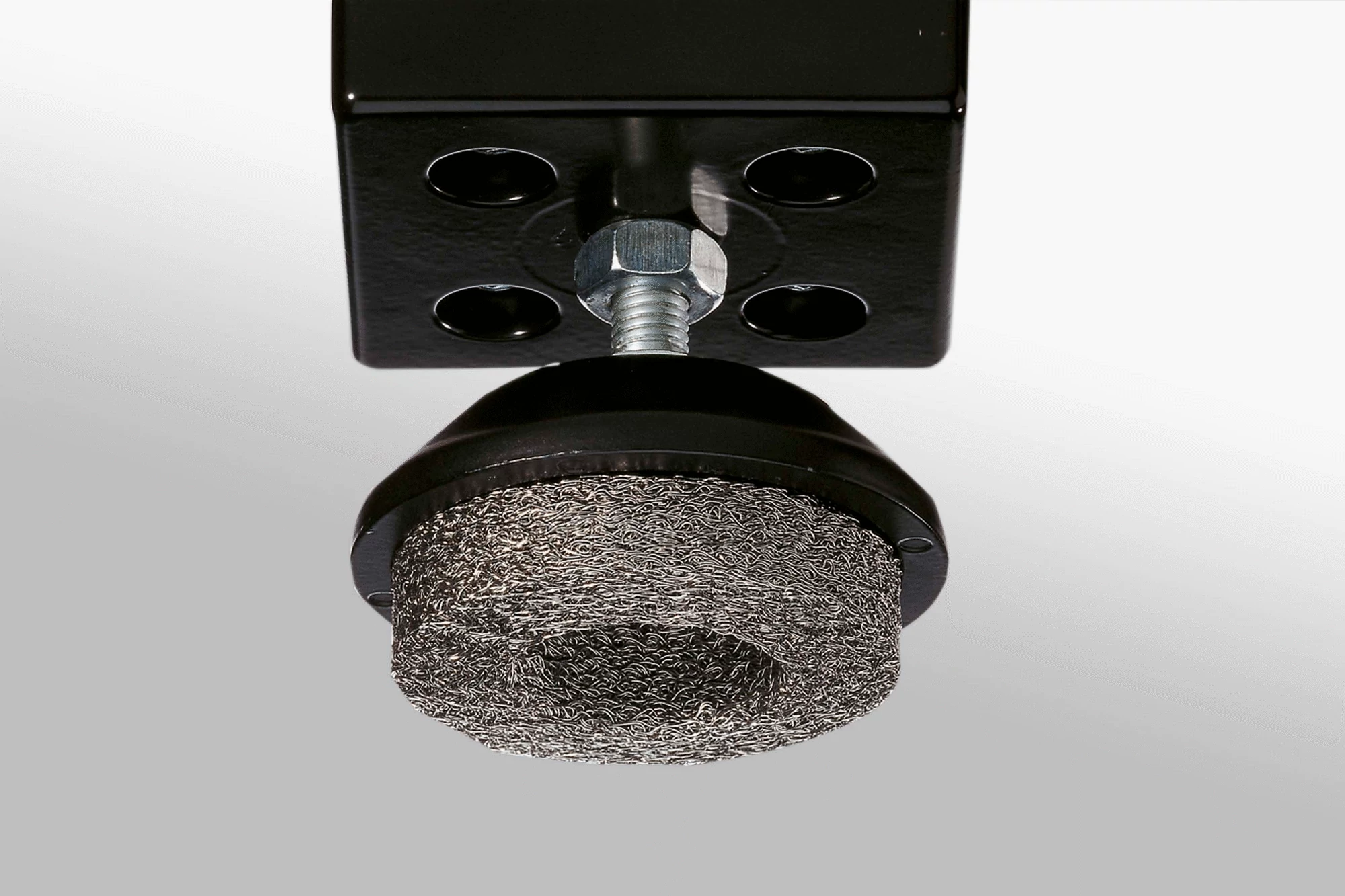

Anti-Vibration Insert D80, stainless
Self-damping: Approx. 15% Natural frequency: 20-25 Hz Resonance ratio: Approx. 3.3 Static load F stat : 2,000 N Max. dynamic pressure loading F dyn : 10,000 N
Scope of Delivery
Self-damping: Approx. 15% Natural frequency: 20-25 Hz Resonance ratio: Approx. 3.3 Static load F stat : 2,000 N Max. dynamic pressure loading F dyn : 10,000 N
Properties
| Diameter | d = 80 mm |
|---|---|
| Property | stainless |
| ESD-safe | Yes |
| Weight | m = 115 g |
| Force max | Fmax. = 10000 N |
| Delivery unit | 1 pce. |
| Material | St |
The Anti-Vibration Insert can be inserted into Knuckle Foot D80 to absorb shocks and vibrations by internal friction. The material is resistant to aging and corrosion as well as to oils, greases, acids and solvents. Using the Anti-Vibration Insert in Knuckle Foot D80 stainless enables electrostatic charge to be discharged through it.
The effective height (h) when not under load is 9 mm. The value of h decreases by the spring distance a as a function of the force F.
The degree of vibration damping depends on the excitation frequency. Shocks (excitation below the natural frequency) will be reduced by the self-damping.
