Folding-Door Hinge 8 Al for Clamp Profile 8 32×18

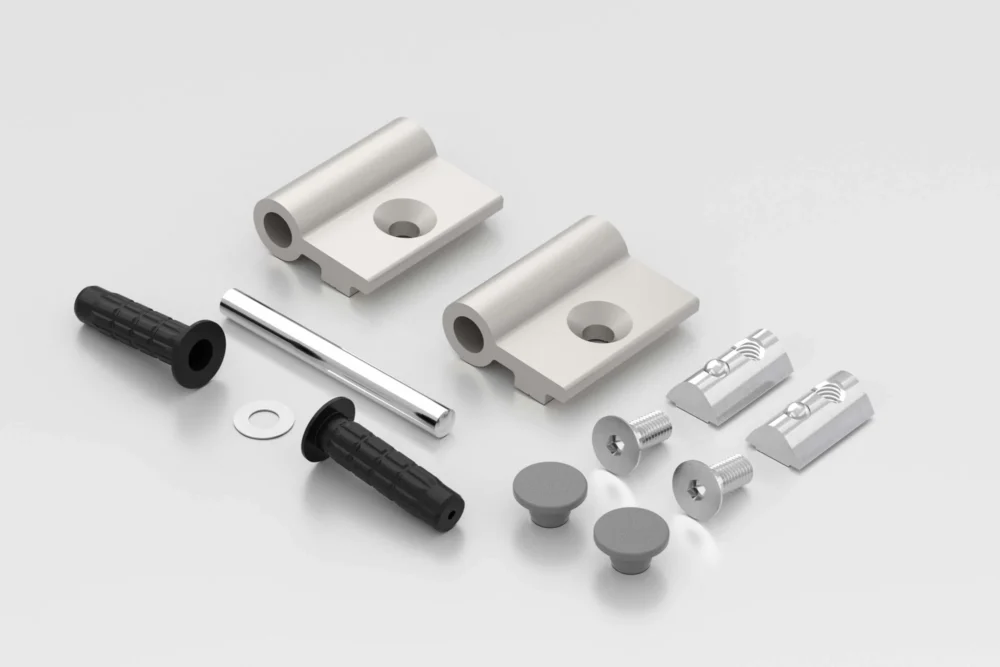

2 hinge leaves, Al, anodized, natural 2 T-Slot Nuts V 8 St M6, bright zinc-plated 2 Countersunk Screws DIN 7991-M6x14, bright zinc-plated Hinge Al light, Pin Set D6 Notes on Use and Installation
Scope of Delivery
2 hinge leaves, Al, anodized, natural 2 T-Slot Nuts V 8 St M6, bright zinc-plated 2 Countersunk Screws DIN 7991-M6x14, bright zinc-plated Hinge Al light, Pin Set D6 Notes on Use and Installation
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 96 g |
| Delivery unit | 1 set |
| cleanroom suitability | Yes |

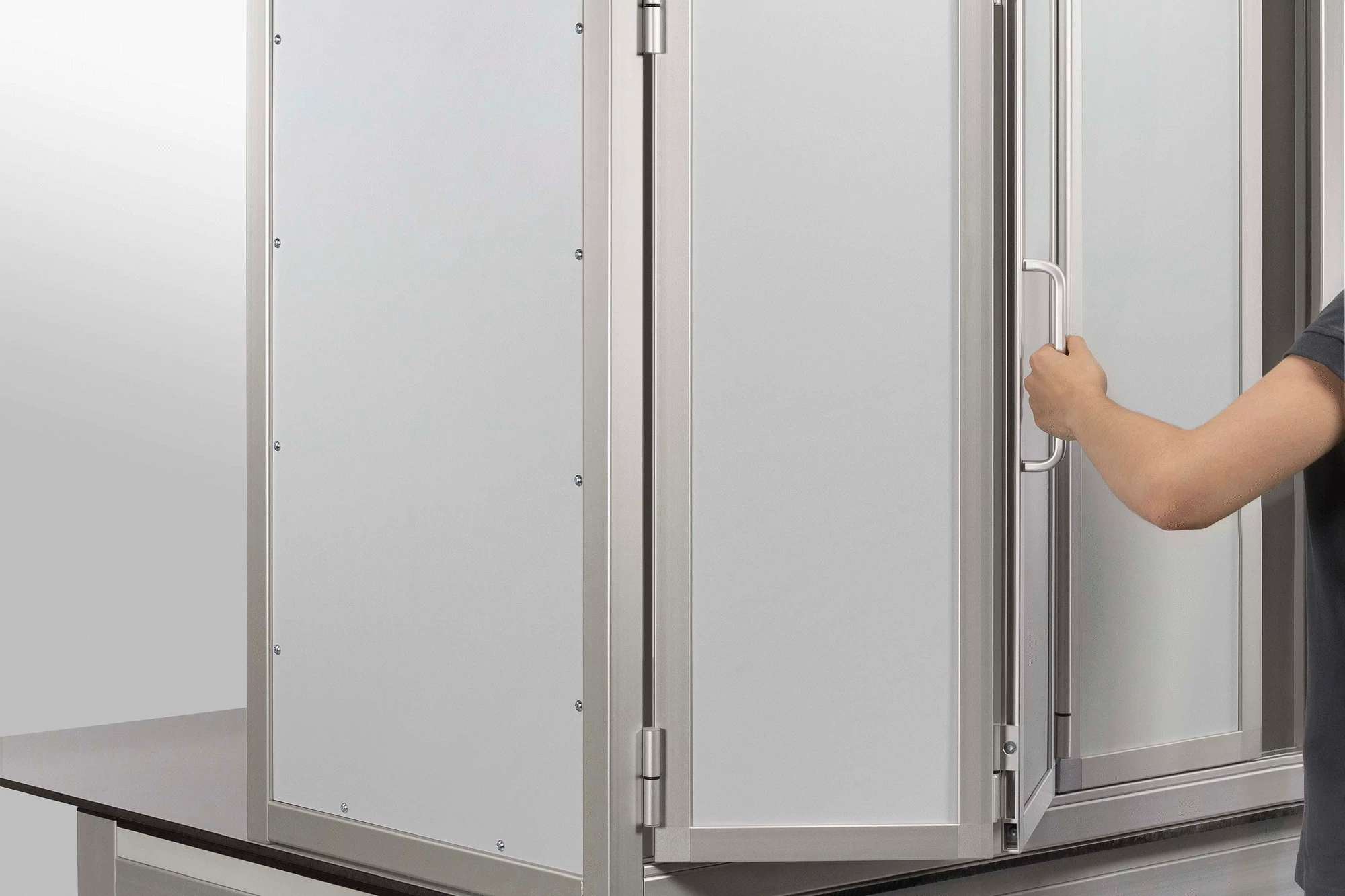

Better doors thanks to greater freedom for Clamp Profile 8 32x18! Clamp Profile (0.0.373.67) is ideal for building stable, lightweight doors, guards, enclosures and sliding doors. Its particularly slim frame holds panel elements securely in place using Clamping Springs. Folding-Door Hinge Al for Clamp Profile 8 32x18 is used to link together separate segments to create space-saving folding doors. Thanks to the Hinges, the moving elements fold up in a concertina formation. Installation note: The T-Slot Nuts used to fasten the Hinge to Clamp Profile 8 32x18 must be inserted into the door frame through the end face prior to assembly. In this particular case, T-Slot Nut V 8 cannot be rolled into place after the frame has been assembled.
F ≤ 500 N
The sections of a folding door can be fitted with Rollers for Corner-Fastener 8 32x18 (0.0.494.74), as shown above. They run in Sliding-Door Guide Profile 8 40x10 (0.0.495.13), which must be taken into account when calculating the height of the door frame.
