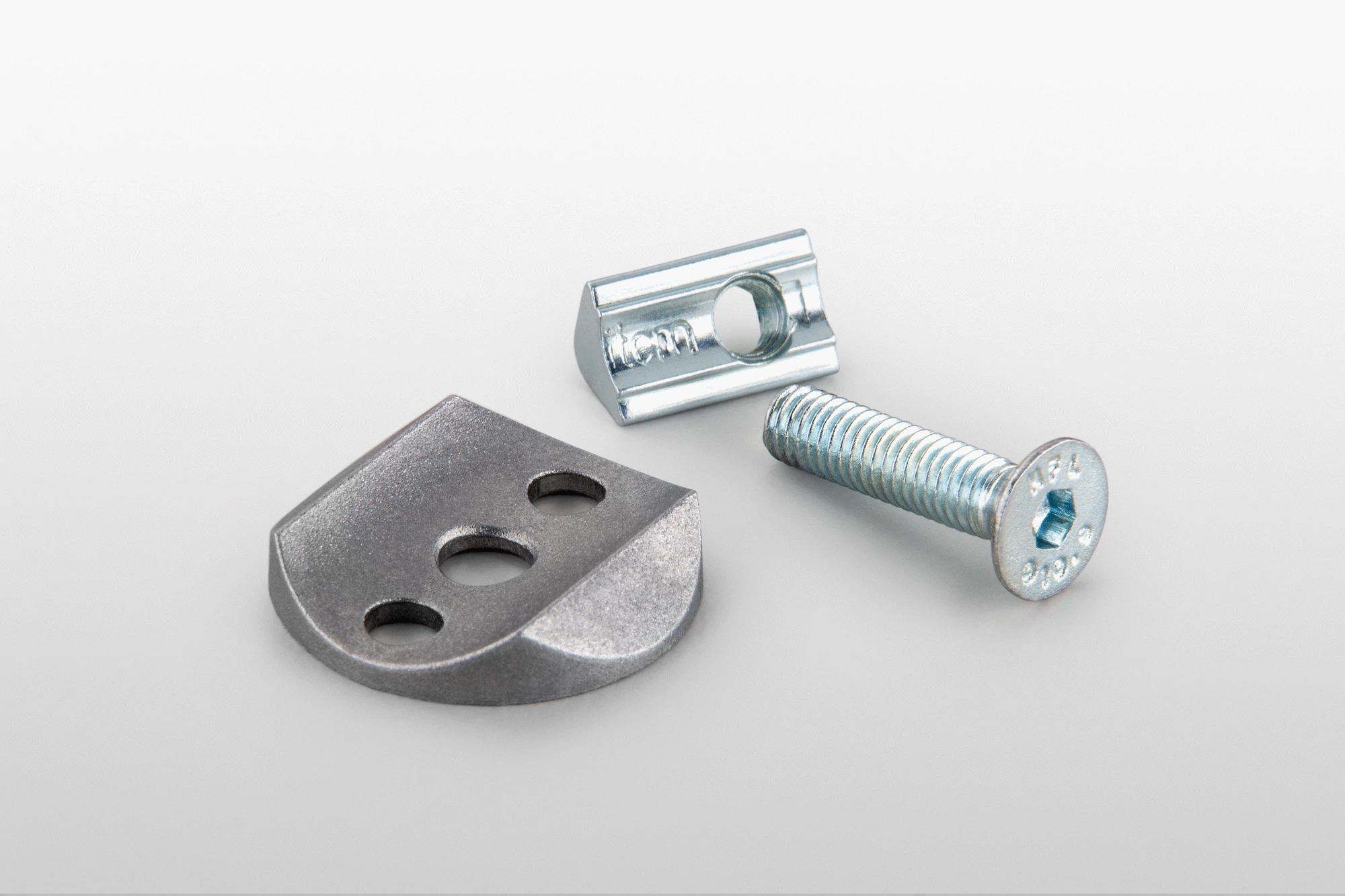

Adapter 6 D30/R15-2
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 6 g |
| Delivery unit | 1 pce. |
| Material | Die-cast Al |

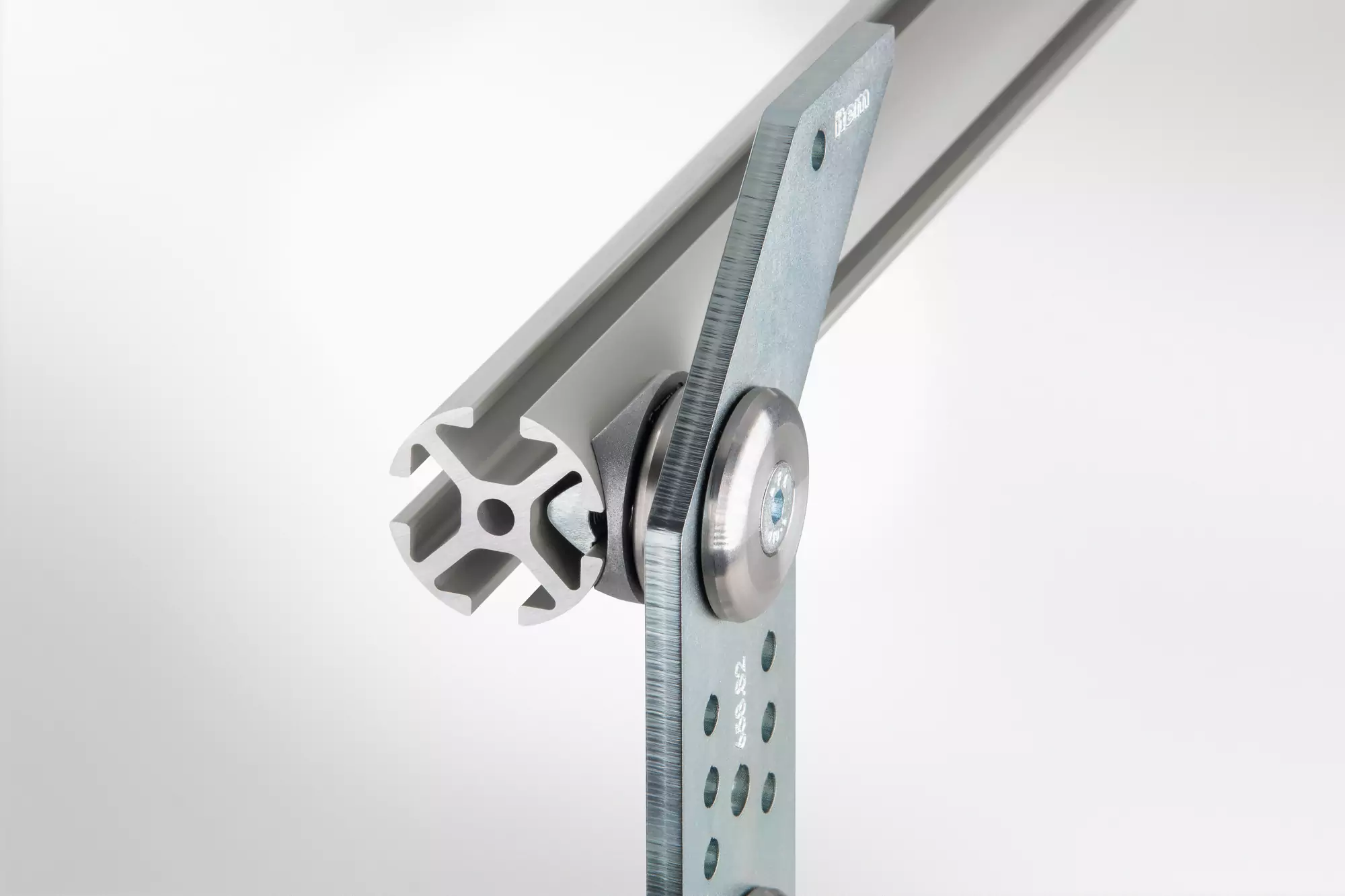

From curved to flat! Adapter 6 D30/R15-2 creates a flat surface on Profile 6 D30. On the one hand, this can be used to attach accessories such as Release Unit D30 Bar, Magnet 8 D30-8.5 M6 or a panel element. On the other hand, this flat surface is also circular, which means it can be used to attach another Profile 6 D30 via its end face. When fastening a panel element or other components, the 2 mm thickness of the Adapter must be factored into the choice of screw length.
