Liukuliuska D30 ja sivuohjain H13 c ESD, musta RAL 9005:n värin kaltainen.

Määritetyt tuotetiedot

Mitään ei ole vielä luotu

Sinun on määritettävä tuotteesi alla ennen tarjouksen pyytämistä
Tuotenro: 0.0.692.52 Osasto: Avainsana tuotteelle
Aseta CAD-muoto
0.0.692.52

Esikatselu

Properties

LineLine D30
ESD-safeKyllä
Painom = 148 g/m
Delivery unitcut-off max. 2000 mm
MateriaaliPE-HD, ESD
Colourmusta samanlainen kuin RAL 9005

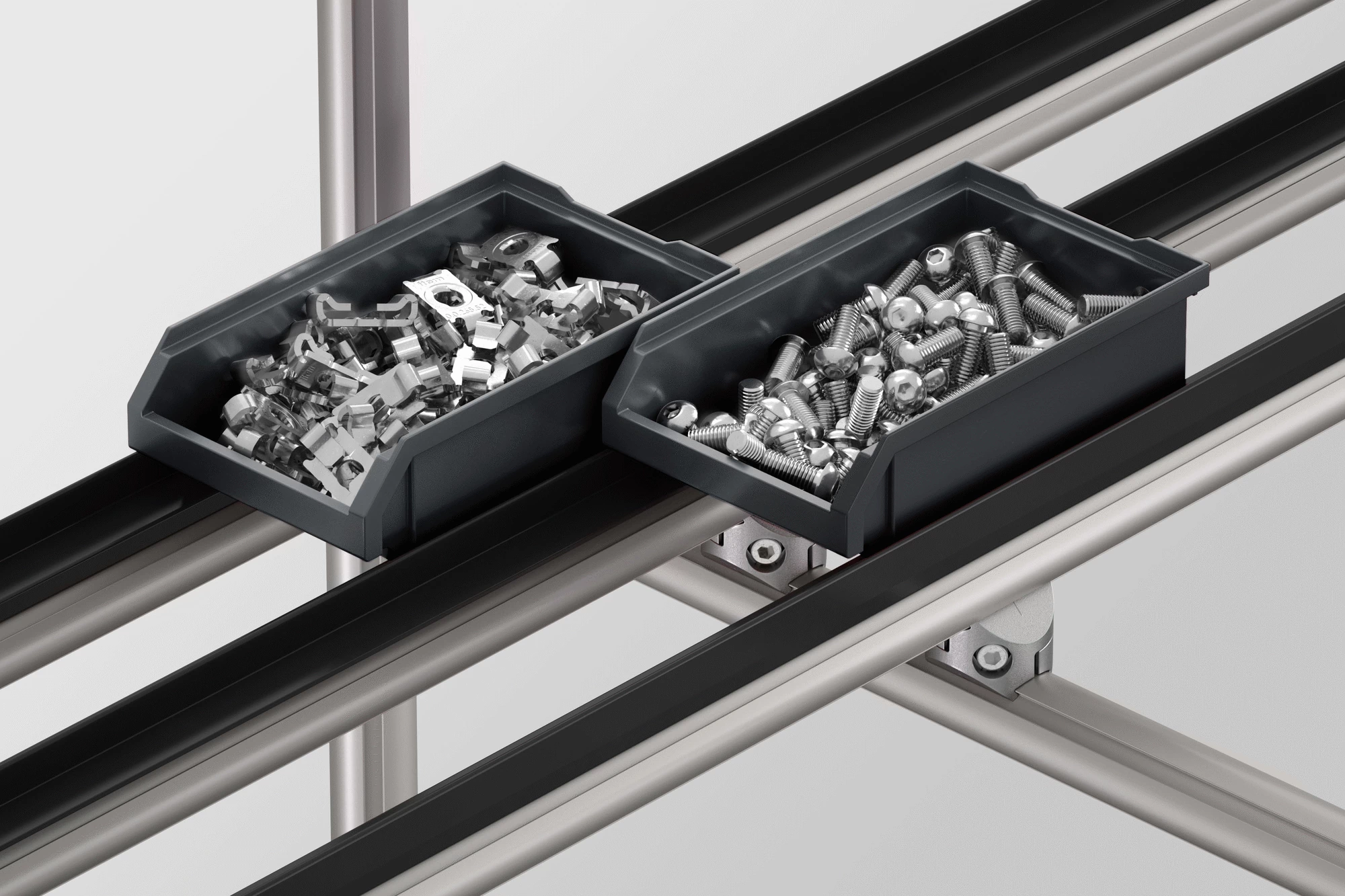

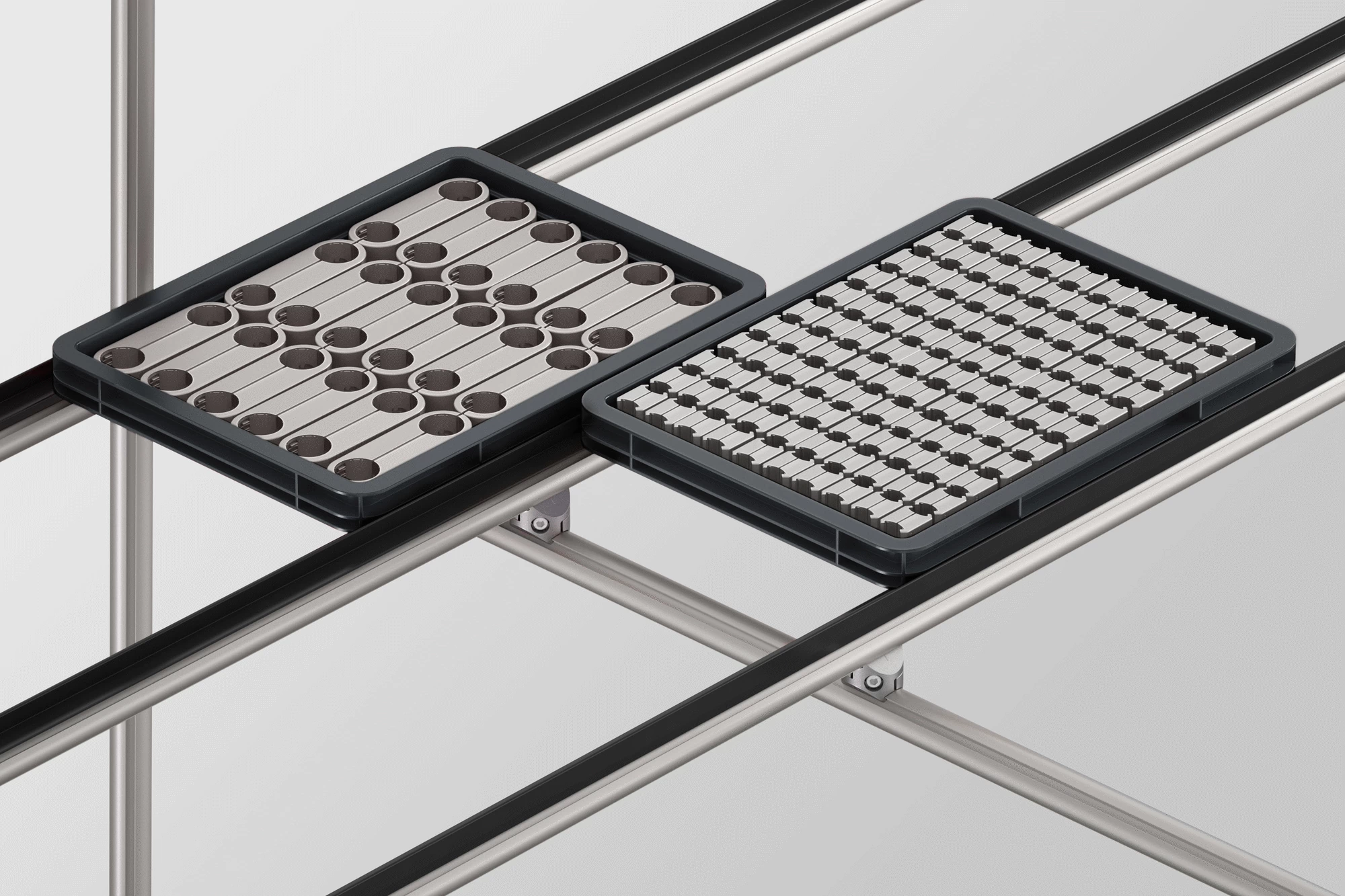

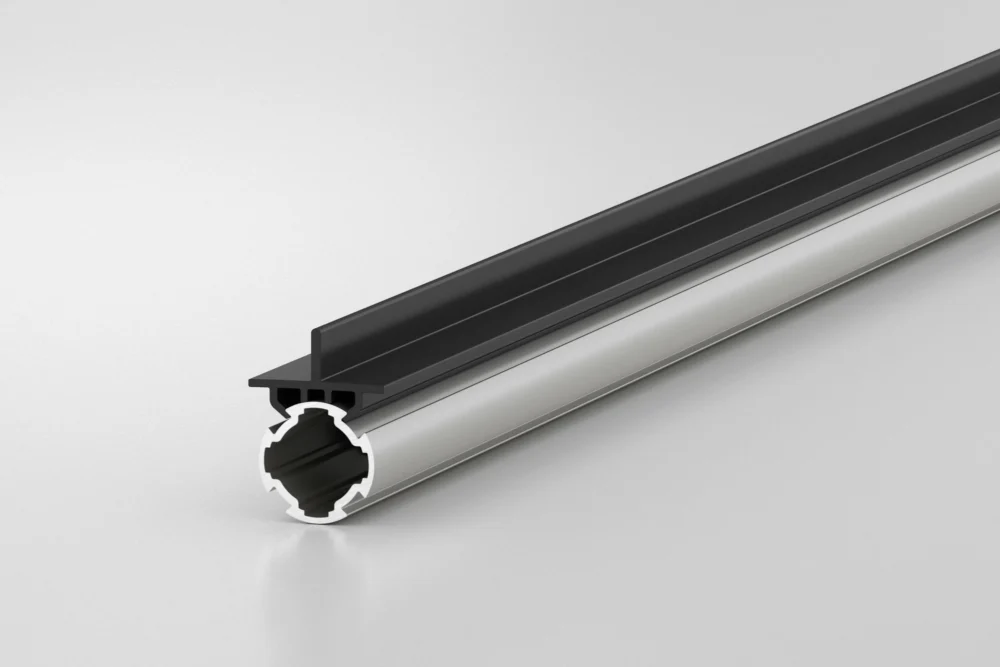

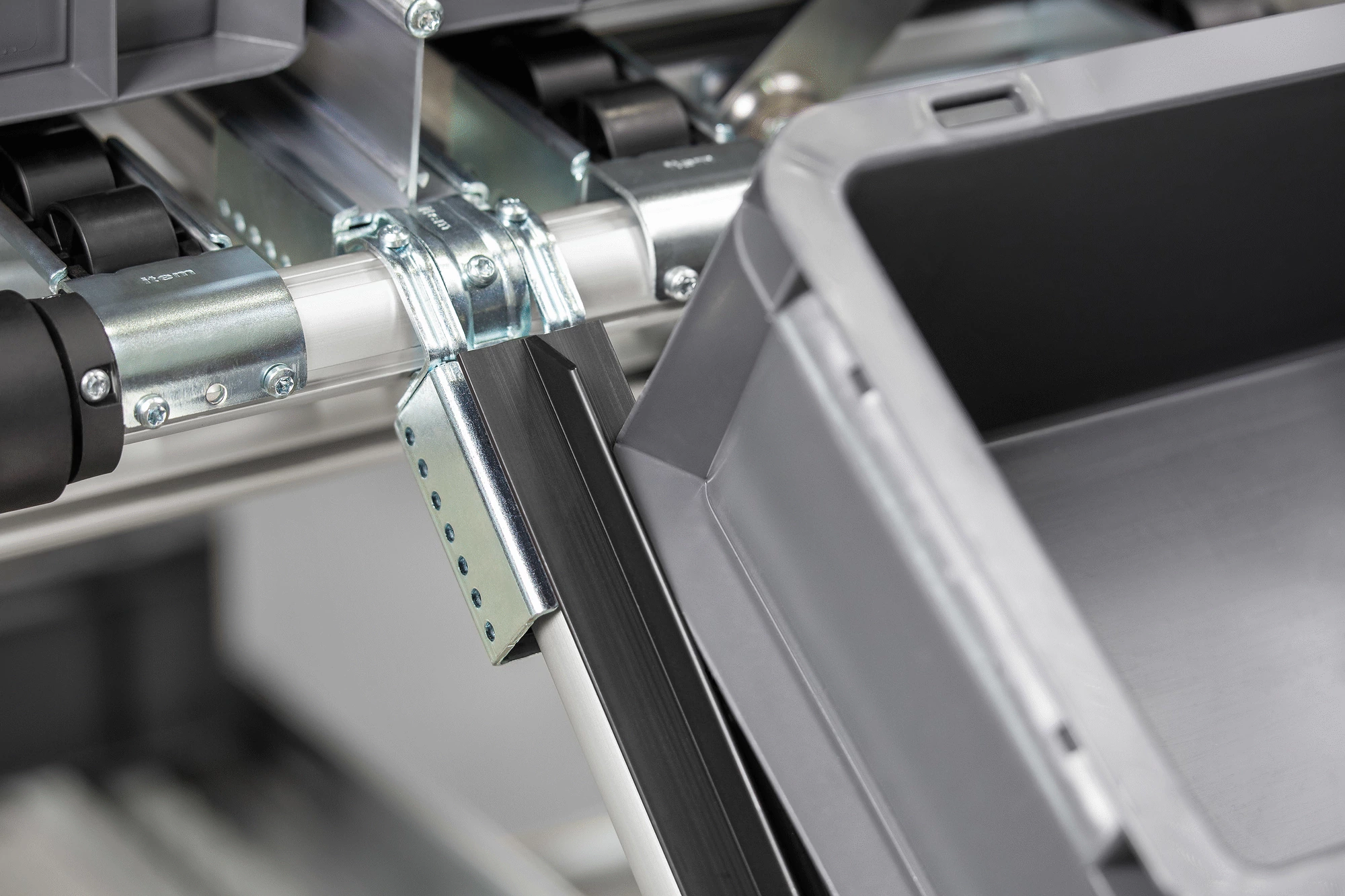

One guide for two transport lines! The ridge running along the centre of Slide Strip D30 with Side Guide H13 c makes this product ideal for use on parallel conveyor lines. It helps to reduce the number of support profiles and fastenings needed to build these solutions. Containers glide along the PE-HD strip with minimal friction while the guide ridge keeps them on track – on both sides. Slide Strip D30 with Side Guide H13 (0.0.671.30) in grey and Slide Strip D30 with Side Guide H13 ESD (0.0.671.33) in black are the ideal solutions for guiding transported goods at the outer side. The Slide Strips simply clip onto the flank of a Profile Tube D30 or Profile 6 D30. To protect sensitive goods they are also available in an ESD-safe design, which is black in colour. Note: Slide Strips D30 without side guides are available in a range of different colours.
